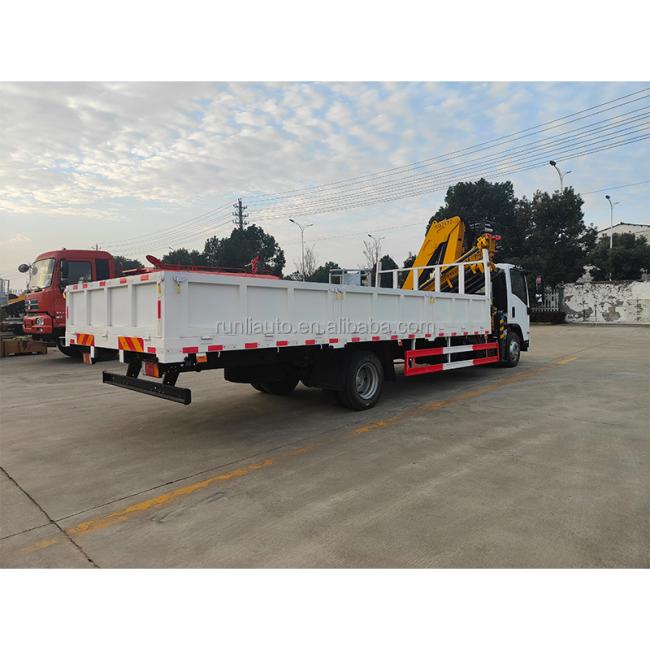

Japan 2 Tons 3.2 Tons SQZ32 SQZ38 Folding Arm Cargo Mounted Crane ISUZU 4x2 ELF Crane Truck Mounted
Price:
CN¥113,377.38/sets >=1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Product Description
Drive Model | 4x2 left hand driven | ||||
Cabin | Single, can be turnover | ||||
Color | Optional | ||||
Vehicle Main Dimensions | Dimensions(L x W x H)mm | 7930X2170X2450 | |||
Wheel base (mm) | 3815 | ||||
GVW. | 8280 | ||||
Kerb weight | 4320 | ||||
Max. driving speed(km/h) | 90 | ||||
Engine | Model | 4KH1CN6LB | |||
Type | 4-stroke direct injection , with water cooling | ||||
Horse Power(HP) | 120HP | ||||
Emission standard | Euro VI | ||||
Gearbox | MSD six speed | ||||
Axle load | 3.3tons (front)/5.5 tons(rear) | ||||
Equipment | Power steering, A/C | ||||
Tire | 7.50R16steel tire, 6pcs + 1 spare tire | ||||
Brakes | Air brake | ||||
Model | SQ3.2ZK1 | SQ3.2ZK2 | Unit |
Max Lifting Moment | 6.72 | 6.72 | t.m |
Max Lifting Capacity | 3200 | 3200 | kg |
Recommend Power Needed At Recommend Oil Flow | 14 | 14 | kw |
Max Oil Flow of Hydraulic System | 25 | 25 | L/min |
Rated Pressure Of Hydraulic System | 22 | 22 | MPa |
Oil Tank Capacity | 60 | 60 | L |
Rotation Angle | 370 | 370 | |
Crane Weight | 1100 | 1200 | kg |
Installation Space | 850 | 850 | mm |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
