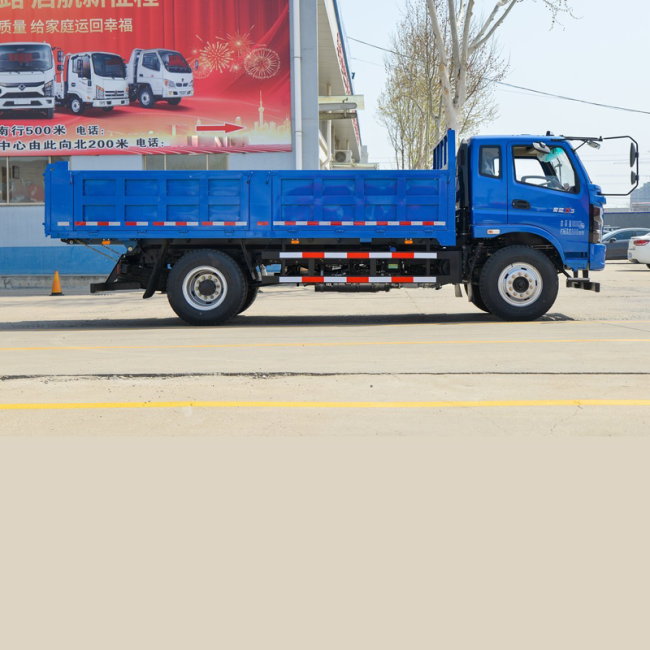

WAW 4X2 Dump Truck
Price:
CN¥78,814.63/units 9-17 units
MOQ:
9 units
Delivery Time:
Negotiable
Brand:
WAW
Product Description
| Announcement model: | FD3186P63K6-1 |
| Driving form: | 4X2 |
| Wheelbase: | 4200mm |
| Body length: | 7.56 m |
| Body width: | 2.4 m |
| Body height: | 2.6 m |
| Front wheel base: | 1830mm |
| Rear wheel base: | 1810mm |
| Vehicle weight: | 6.6 tons |
| Rated load: | 11.205 tons |
| Total mass: | 18 tons |
| Tonnage class: | Light truck |
| Approach Angle: | 22 degrees |
| Departure Angle: | 16 degrees |
| Engine type: | Power in the cloud D40TCIF1 |
| Engine brand: | Intra-cloud dynamics |
| Number of cylinders: | 4-cylinder |
| Fuel Type: | Diesel oil |
| Displacement: | 4L |
| Emission standard: | euro6 |
| Maximum horsepower: | 184 horsepower |
| Maximum output power: | 135kW |
| Maximum torque: | 660N·m |
| Maximum torque speed: | 1200-2000rpm |
| Rated speed: | 2300rpm |
| Engine form: | Electronic common rail system HEGR+DOC+DPF+SCR+ASC |
| Container length: | 5.3 m |
| Container width: | 2.3 m |
| Container height: | 0.8 m |
| Container form: | self-discharging |
| Hydraulic cylinder brand model: | 100, 110 |
| Material of cargo box: | Q235A, CR780/980MS, etc |
| Container thickness: | Side 1 base 1, side 2 base 3, side 3 base 5 and so on |
| Cab: | Single row |
| Main seat form: | Airbag cushioned seats |
| Transmission model: | Fast 8JS85TE-C |
| Transmission brand: | Fast |
| Forward gear: | Eighth speed |
| Number of reversals: | two |
| Tank capacity: | 150L |
| Front axle allowable load: | 6500kg |
| Rear axle description: | 9T |
| Rear axle allowable load: | 11500kg |
| Speed Ratio: | 5.143 |
| Number of spring pieces: | 10/10 + 9 |
| Tire Specifications: | 10.00R20 18PR |
| Number of tires: | six |
| ABS Anti-lock: | yes |
| Integrated fender: | yes |
| Side skirt plate: | yes |
| Independent warm air: | yes |
| Power Windows: | yes |
| Power interface: | 24V |
| Remote control key: | yes |
| Electronic central lock: | yes |
| External audio source interface (AUX/USB/iPod, etc.) : | yes |
| Radio: | yes |
| Parking brake: | Cutoff brake |
| Engine braking: | yes |
| Front wheel brake: | Drum brake |
| Rear wheel brake: | Drum brake |
| Vehicle networking system: | yes |
