Dongfeng 4x2 12 Tons Diesel Dump Truck Medium Duty Highway Transportatopn
Promotion Dongfeng 4x2 12 tons diesel dump trucks
- 1. For Ttype lifting series adopted by the series product, cylinder and hydraulic accessories made by domestic famous manufacturers are adopted, for the former top lifting series, Qingzhuan cylinders are adopted, for the former top lifting system, is uses world famous brand of Haiwo Cylindersand selects famous hydraulic parts with high-quality both at home and abroad, sub-frame and the beam of van use high- quality channel steel, and the vans are formed with dustpan and rectangular two shapes. The products have the feature of high rigidity and lifting
- 2. The trucks are classified as ore bucket-type compartment, rectangular compartment, U-type compartment, and adopt high-strength low-alloy structural steel plate for better impact resistance, they are suitable for loading and unloading ores and large stones.
- 3. The Lifting devices, manual control and air control devices of both T-type and F-type of forward and pushing system can be operated easily and conveniently.

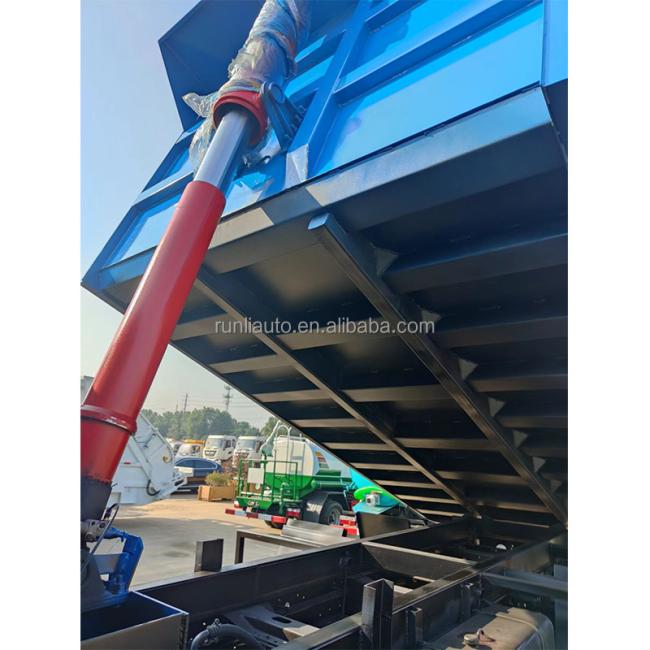

- 4. With new type lifting device, loads on each component are more reasonable, and the pressures features of the hydraulic system are excellent, the cylinder rise-off accident is remedied effectively while the viscous cargo is dumping, and the lifting reliability is improved greatly.
- 5. With wide rear structure, the strength is stronger. The lifting rearbase design enables higher stability in horizontal direction
- 6. The trucks are applicable to all kinds of bulk material transportation of railways, waterways, port facilities, road facilities and engineering construction.
|
Chassis |
Chassis model |
EQ1108KJ |
||
|
Drive mode |
4X2 |
|||
|
Tire type |
9.00 nylon tire |
|||
|
Brake system |
Air brake |
|||
|
Steering system |
Power steering,LHD |
|||
|
Engine |
Model |
YC130 33 |
||
|
Horsepower (kw/Hp) |
96/130 |
|||
|
Displacement(ml) |
4214 |
|||
|
Emission standard |
Euro 3 |
|||
|
Description |
In-line,4 cylinders,turbo charged,water cooled,inter cooled,diesel engine |
|||
|
Gearbox |
Description |
Manual,5 forward &1 reverse gears |
||
|
Cabin |
Description |
Classic one and half rows,standard configuration,with single sleeper,3 passengers allowable.A/C optional (+200USD) |
||
|
Main parameter |
Dimension |
Overall dimension |
7350×2450×2840mm |
|
|
Wheelbase |
3950mm |
|||
|
Cargo box |
4500*2200*800mm |
|||
|
Weight |
Curb weight |
5805Kg |
||
|
Load weight |
10000Kg |
|||
|
Leaf spring No. |
8/10+7 |
|||
|
Approaching/Departure Angle(°) |
25/15 |
|||
|
Front/Rear suspension(mm) |
1205/1675 |
|||
|
Front/Rear track(mm) |
1900/1800 |
|||
|
Max speed(km/h) |
90 |
|||
|
Front/Rear axle load (kg) |
3600/8000 |
|||
|
Box |
Dimension |
4500*2200*800mm |
||
|
Thickness |
Side 3mm, floor 4mm high quality steel |
|||
|
Tipper |
Double top |
|||
Packaging: Naked, waxing on ro-ro or bulk ship or by 20GP, 40GP, 40HQ, 40FR and so on;
Payment :30% deposit by T/T,before leaving factory should pay the 70% balance by T/T;
Loading port & border:
Shanghai,Tianjin,Guangzhou,Qingdao,Erenhot,Horgos or according to your order;
Our service
1. Answer your question within 24 hour.
2. one year of warranty since bill of lading on board date
3. Provide English operation manual or video
4. Free training in our factory if customer need.
Our products scope:
1) Trucks,dump trucks and tipper trucks
Heavy duty trucks; side wall trucks; towing trucks; agricultural trucks; cement mixer trucks; bulk cement tank trailers; refrigerator trucks; watering truck; chemical tank trucks; fire truck; garbage truck; wrecker; box truck; oil truck; truck crane; truck mounted aerial work platform and so on.
2) Special-purpose vehicles
Trailer; various semi-trailers; flatbed trailers; skeleton trailers; sidewall trailers; semi-container trailers; goose low bed trailers; fuel tank trailers.
Making orders:
If you are establishing business with us in this line, please let us know your specific requirements, meanwhile we produce products according to your descriptions.
We assure your order from you will have our immediate produce and prompt delivery
