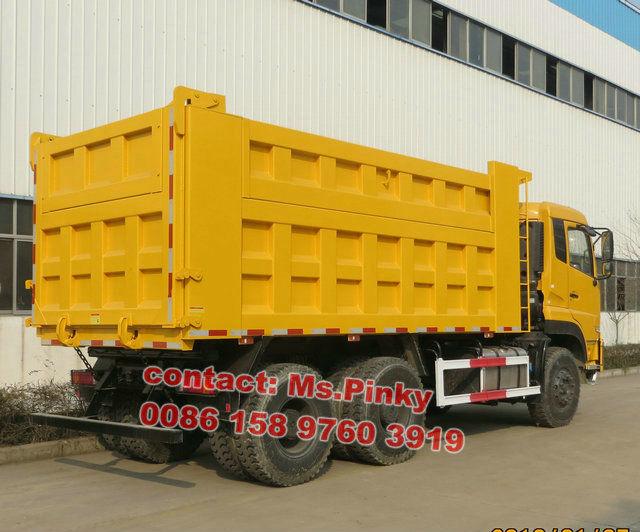

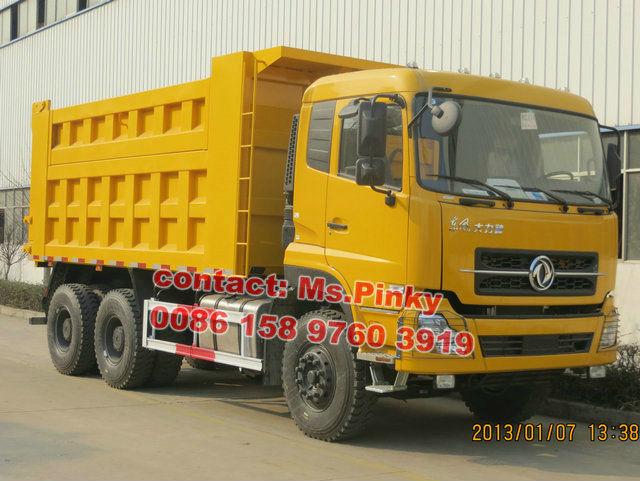

35Tons Tipper Truck Dongfeng 10 Wheels DFL Dumper
35Tons Tipper Truck Dongfeng 10 Wheels DFL Dumper Call 0086 15897603919
The specification of Dongfeng 10 Wheels 35Tons Tipper Truck:
Application conditions: steel, iron ore, iron ore mining, iron ore and other high density in short-distance transport and short-distance transport of goods.
The Dumper truck features: Dongfeng New cabin Heavy duty dumper truck using the Cummins engine, large capacity, strong power, large torque at low speed, low fuel consumption, high reliability; the Shaanxi teeth 9 forwards transmission, convenient operation, high strength, long service life of the gear; the use of 13 tons of Dongfeng wheel reducer bridge, steel bridge shell, strong carrying capacity, large clearance, good passing ability, can fully meet the iron powder, iron ore short-distance transport, suitable for mountain road, road, road transport.
| Technical parameter of chassis DFL3258A3 | |||
| outside dimension (L×W×H)mm | 8300×2500×3450 | ||
| Total mass | Kg | 42,060 | |
| Loading mass | Kg | 30,000 | |
| Kerb mass | Kg | 11,910 | |
| Chassis Model /Manufacturer | DFL3258A3 | ||
| driving type | 6×4 | ||

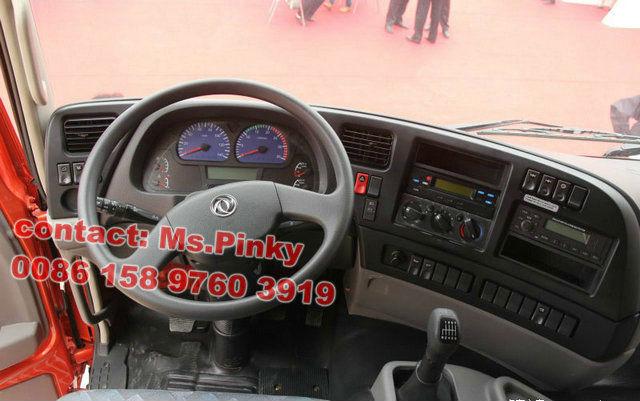

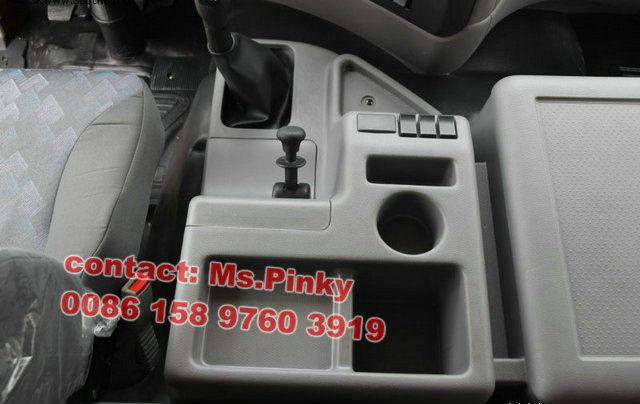

| Cabin | Flat head, tippable, one bed(D310-S1) | ||
| Wheelbase | mm | 3800+1450 | |
| Front overhang / rear overhang | mm | 1500/1550 | |
| Front tread / rear tread | mm | 2040, 1850/1850 | |
| Approach angle /Departure angle | 30/28 | ||
| Engine | |||
| model | L340 30 | L290 30 | |
| Max. power/rotated speed | 250(KW) /2200(rpm) | 213KW/2200rpm | |
| Type of fuel | Diesel | diesel | |
| Company of engine | Dongfeng Cum,mins Engine | ||
| Gear box FAST RT-11509G | |||
| clutch | Φ430mm diaphragm spring clutch | ||
| Front axle | 7T | ||

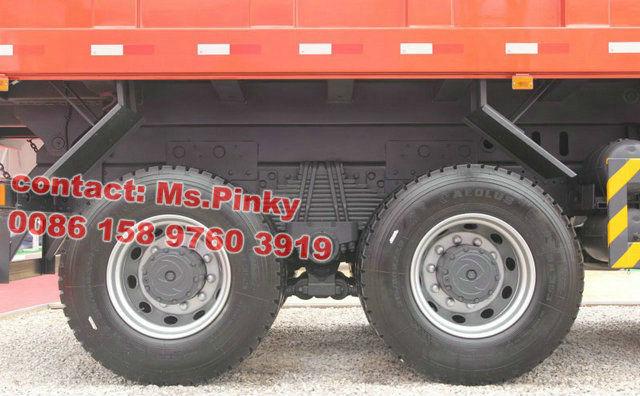

| Rear axle | 16T×2 | ||
| Tyre | 12.00R0 | ||
| Max Speed | 90Km/h | ||
| air condition | With | ||
| Cargo body | 5600×2300×1200mm | ||

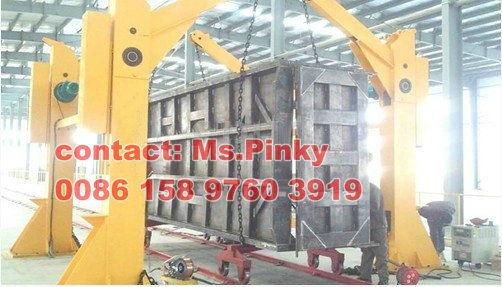

our Tipper Truck Producing workshop:
Welcome to Visit our factory in Suizhou City Hubei Province!
