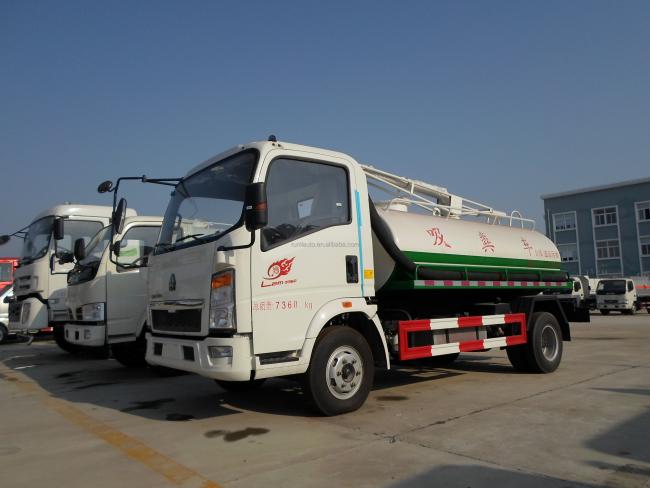

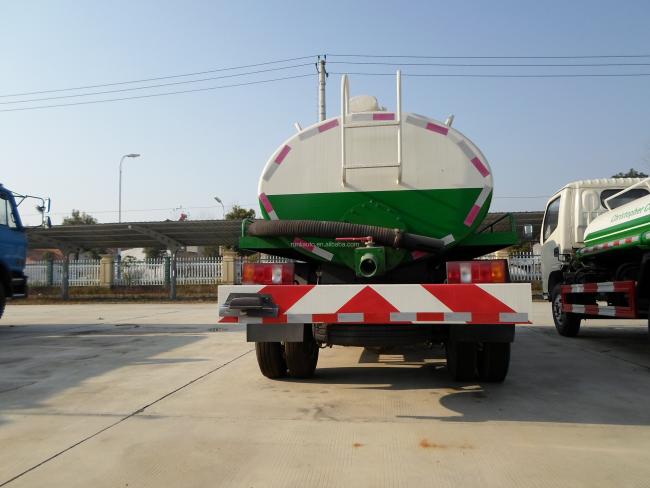

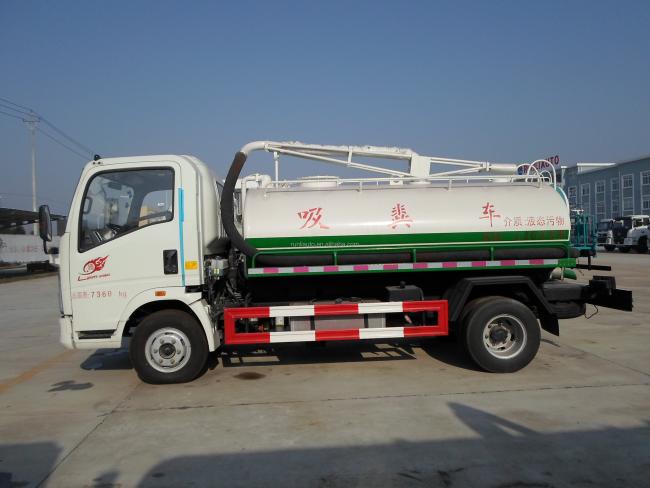

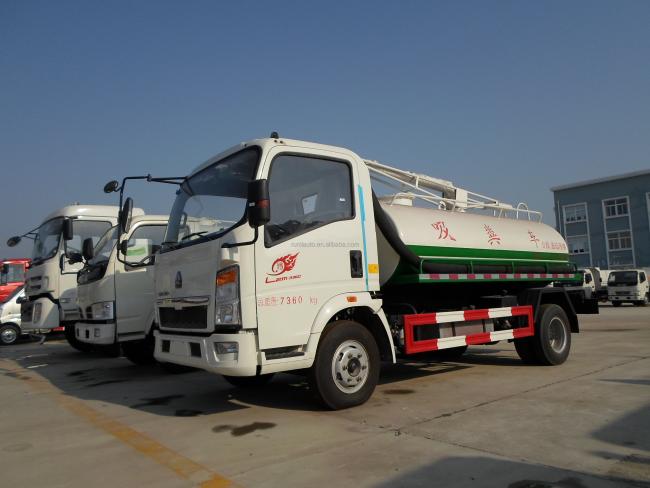

HOWO 4X2 Fecal Suction Truck 4000 Liters Euro II Suction Sewage Truck

Model

HOWO 4X2 fecal suction truck

Driving Model

4X2

Cabin

Single

Color

optional

Vehicle Main            Dimensions

(L x W x H)mm

6480×2050×2570

Wheel base  (mm)

3360

Weight in KGS

G.V.W.

7300

Curb Weight

5160

Chassis model

ZZ1047

Axle number

2

Axle load

2 tons (front)/3.5 tons (rear)

Transmission

WLY525

Max. driving speed(km/h)

90

Engine

Brand

Xichai

Model

4DW93

Displacement

2540 cc/67kw

Horse Power

91(HP)

Emission standard

Euro II

Tire

6.50R16 (6+1 spare tire)

Tank

4000 L

Tank material

Carbon steel 4mm

Tank Specifications

The truck Equipped with special vacuum suction pump, which is applied to suck faeces,

 sewage, sludge and other liquid mixed with small suspended granules. Fecal suction pipe

 can rotate with 360 degrees. Full tank pumping time: ≤ 5min, suction depth: ≥ 6m, two discharge

 ways: pressurized discharge and self-flowing discharge.The truck is used for cleaning septic

 tanks, sewage ditches and sewers etc.
