DFAC 4x2 Small Cesspool Truck Septic Cleaning Truck Left Hand Drive

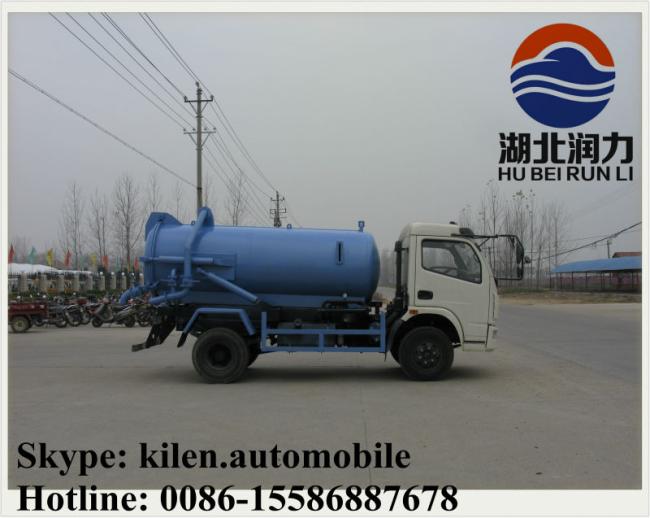

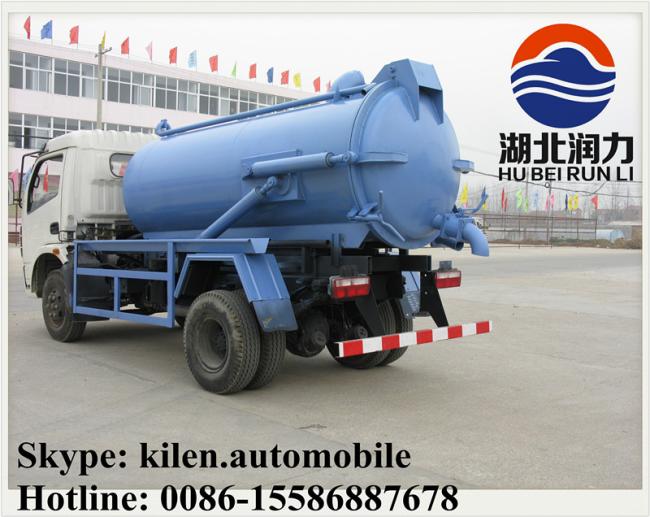

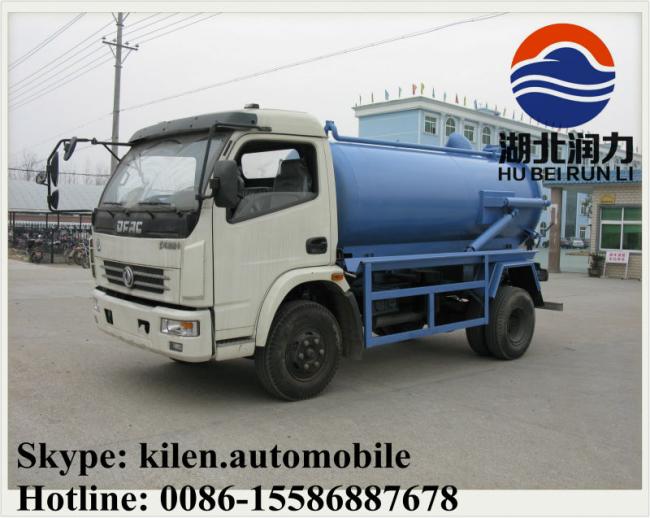

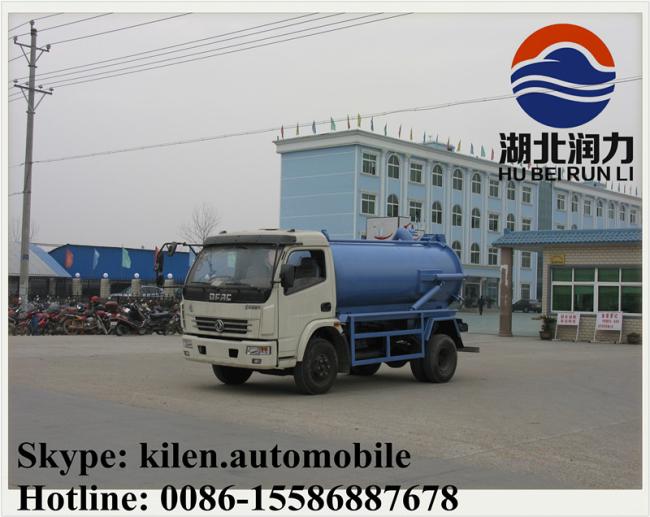

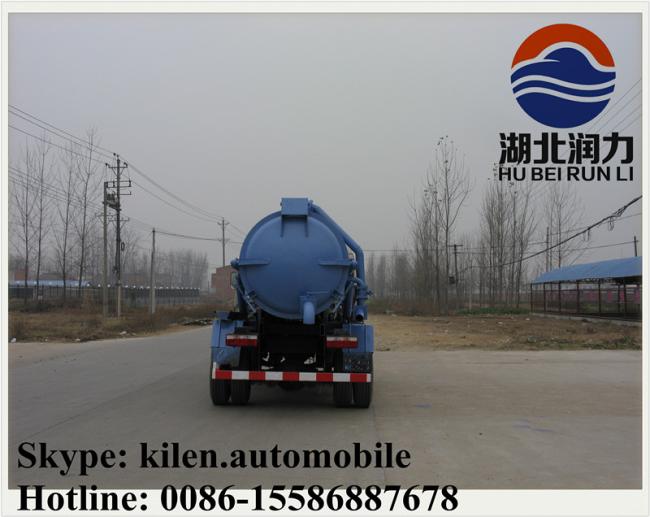

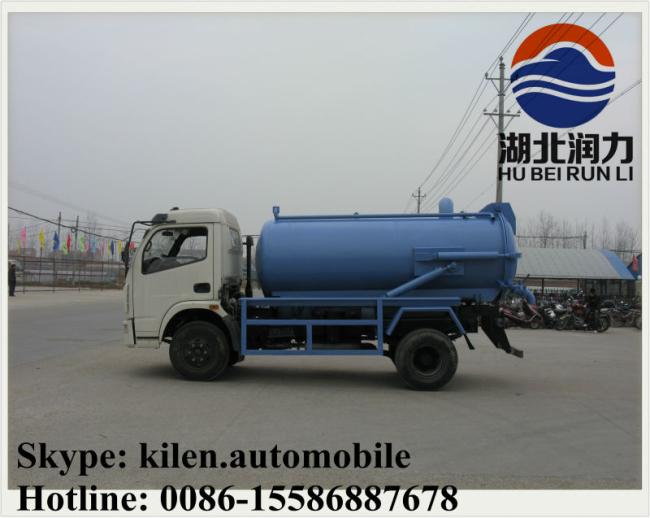

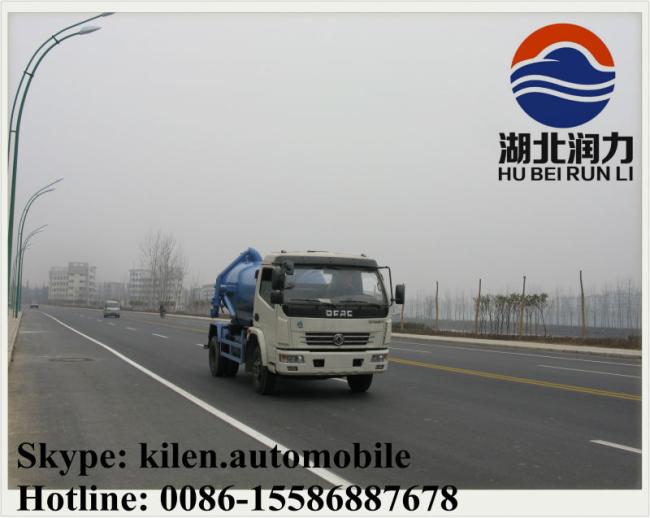

DFAC 4*2 small cesspool truck
|
cesspool truck Suction System Specification |
|
|
Tank |
|
|
Tank Capacity (m3) |
3 |
|
Tank Material |
Q235A carbon steel (Stainless steel is optional) |
|
Tank Shape |
Roundness |
|
Tank Size ( length * diameter)(mm) |
3500*1500 |
|
Vacuum pump |
|
|
Model |
China famous WEILONG (Optional) |
|
Max Vertical Suction (m) |
≥8 |
|
Absolute Working Pressure (pa) |
8500 |
|
Rated Speed |
500 |
|
Rated Pumping Speed (L/s) |
98 |
|
Pump inlet diameter (mm) |
50 |
|
Container Filling Time (s) |
≤5 |
|
Container Emptying time (s) |
≤5 |
|
Chassis Specification |
|
|
Truck Model |
EQ1060 |
|
Engine |
|
|
Model |
CY4102-C3F |
|
Type |
Four-cylinder, water-cooled, mechanical injection |
|
Rated power (Hp) |
95 |
|
Transmission |
|
|
Model |
DONGFENG |
|
Type |
5 Forward & 1 Reverse Speed |
|
Travelling |
|
|
Drive Model |
4 x 2 |
|
Steering Wheel Position |
Left hand drive |
|
Max. Travelling speed |
95 |
|
Dimension do |
|
|
Overall Size (mm) |
5850x 2200 x 2950 |
|
Tyre Size |
7.00-16 |
|
Wheel Base(mm) |
3300 |
|
Weight |
|
|
Curb Weight (kg) |
4600 |
|
Payload Capacity (kg) |
4000 |
|
Super Tank: Head and the tank made by a molding, thickening, anti-high-pressure. Sub frame: Full sub-frame with flexible mounting fixed to the truck chassis by horse bolts. Sub-frame and chassis medium with wooden plates. Vacuum System: Liquid ring vacuum pump, is driven from the PTO on the gearbox, provides high airflows along with high vacuum levels for removing debris above or below liquid surfaces. Engaged and disengaged from drivers cab. Tank Mounting: The truck will be equipped at our expense with a sub frame according to truck manufacturer’s prescriptions. Painting: All steel parts are sand blasted before painting. One anti-corrosion and zinc-rich primer and final painting at customer’s choice of colour.All steel parts are steel blasted before painting. Paint markers according to customer’s demand.
Suitable for the transport of non-hazardous waste products and built according to the design rules for vacuum operated waste tankers |
|
