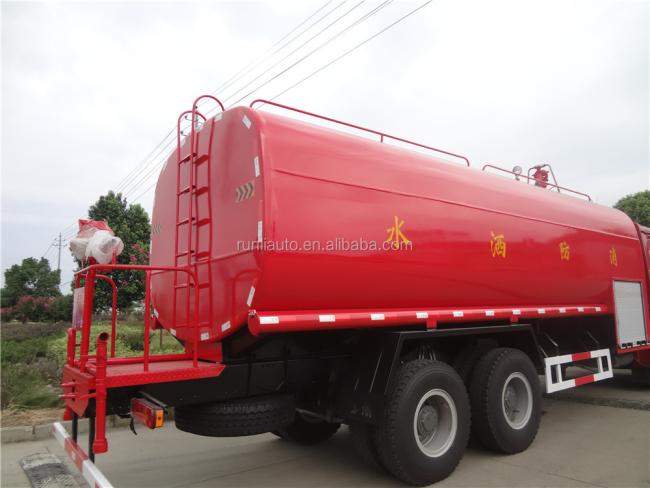

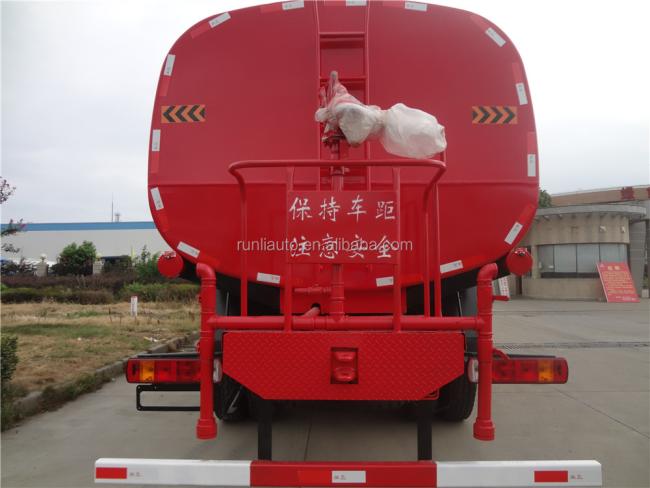

Euro 2 SINOTRUK 6x4 Water Tank Fire Truck 266hp 20cbm Fire Fighting Vehicle
|
Dimension(Lx W xH)(unloaded)(mm) |
9895×2496×2958 |
||||
|
Tank Volume (mm) |
20cbm tank body(thickness):5mm ,material: carbon steel; sprinkling equipment both in front and in rear; special anti-corrosion treatment |
||||
|
Approaching angle/Departure angle(°) |
13.5/11.5 |
||||
|
Overhang(front/rear) (mm) |
1500/2445 |
||||
|
Wheel base (mm |
4300+1350 |
||||
|
Max speed(km/h) |
90 |
||||
|
Curb weight(kg) |
12450 |
||||
|
Loading Weight(kg) |
12400 |
||||
|
Engine (Steyr technology, made in China) |
Model |
WD615.69,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection |
|||
|
|
Fuel type |
Diesel |
|||
|
|
Power, max(kw/rpm) |
247/2200 |
|||
|
|
Emission |
EUROⅡ |
|||
|
Fuel tanker capacity |
300 |
||||
|
Transmission |
Model |
HW19710 |
|||
|
Brake system
|
Service brake |
Dual circuit compressed air brake |
|||
|
|
Parking brake |
spring energy, compressed air operating on rear wheels |
|||
|
Steering system
|
Model |
ZF8098 |
|||
|
Front axle |
HF9 |
||||
|
Rear axle |
HC16 |
||||
|
Tyre |
12.00R20 |
||||
|
Electrical system
|
Battery |
2X12V/165Ah |
|||
|
|
Alternator |
28V-1500kw |
|||
|
|
Starter |
7.5Kw/24V |
|||
|
Cab |
HOWO76 cab, all-steel forward control,55ºhydraulically tillable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
||||
