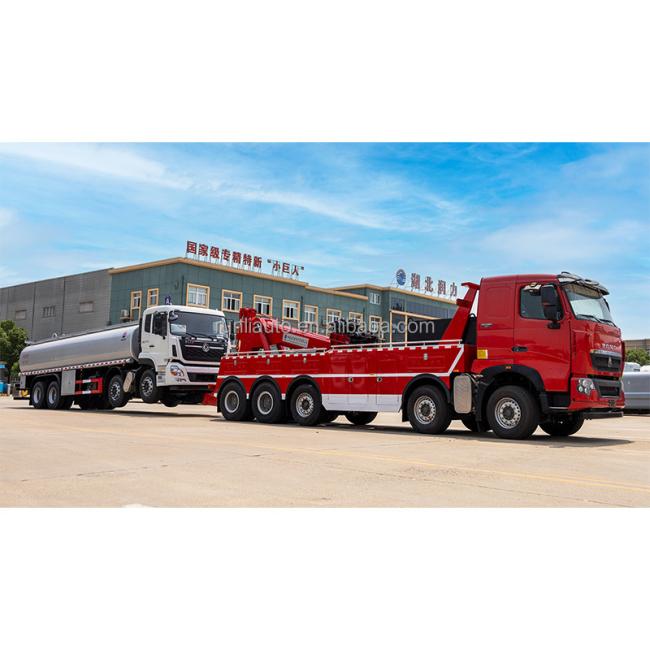

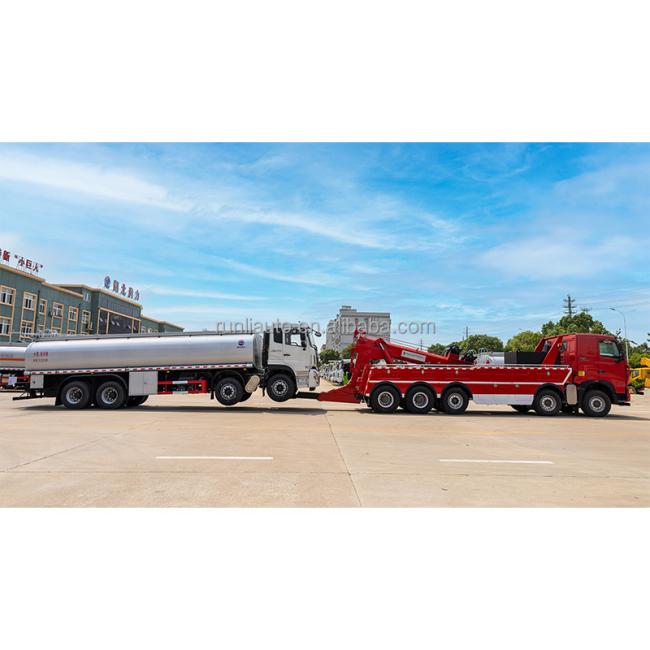

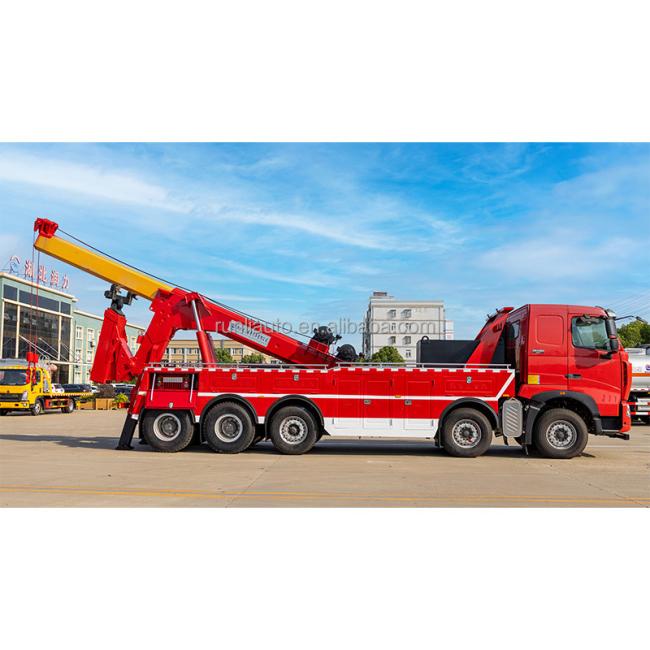

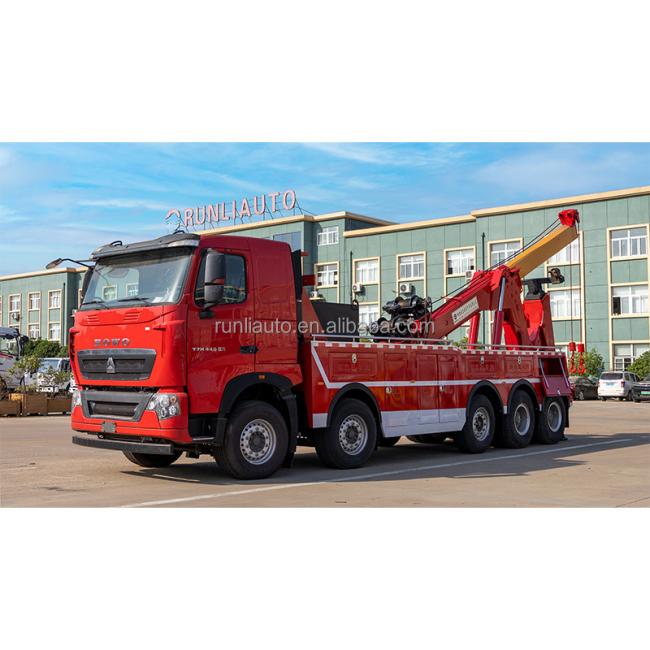

SINOTRUK HOWO 10x4 50t Howo Wrecker Towing Truck
| Cabin | A/C installed,2~3 persons,LHD | |
| Model | SCS5310TQZZ | |
| No load(kg) | Total Weight(kgs) | 31000 |
| Kerb weight(kgs) | 28000 | |
| Front axle | VGD95 drum brake | |
| Rear axle(double) | MCP16ZG | |
| Full load | Max. Overall Weight | 30000 |
| Overall Dimensions(mm) | Length | 11550 |
| Width | 2500 | |
| Height | 3570 | |
| Wheel base(mm) | 1950+3625+1375+1350mm | |
| Driving Model | 10*4 | |
| Tyre | 12.00R20 | |
| Tank dimension | 400 | |
| Engine | Model | MC11.44-60 |
| Power(kw) | 324 | |
| Displacement(mL) | 11596 | |
| Transmission | HW19712,12 forwards&1 reverses | |
| Wrecker Equipment | |||
| Max. Towing Weight(kg) | 50000 | ||
| Lifting System | Max. Lifting Weight(kg) | 25000 | |
| Max. Lifting Weight under all extension(kg) | 9500 | ||
| Lifting Weight in Situ(kg) | 18000 | ||
| Max. Ground Distance(mm) | 900 | ||
| Hoisting System | Max. Hoisting Weight(kg) | 38000 | |
| Max. Hoisting Weight under all extension(kg) | 8000 | ||
| Extension Distance of Oil Cylinder(mm) | 6000 | ||
| Length of crane Arm(mm) | 12000 | ||
| Max. Hoisting Height(mm) | 6500 | ||
| Winch | No. | 2 | |
| Curb Traction/Per(KN) | 100x2 | ||
| DN of Steel Rope(mm) | 20 | ||
| Length of Steel Rope(m) | 45*2 | ||
| Min. Line Speed(m/min) | 5 | ||
| Outrigger | No. | 2 | |
| Outrigger Span(mm) | 1440 | ||
| Landing Strength(KN) | 80*2 | ||
| Crane | 360°rotate with three arms | ||
| Lifting Forks | 4 pairs | ||
| Lifting fork base | 1 pair | ||
| Jump-start cables | 12~24 Volts | ||
| Electric system | Rear working lamp(stop,tail,turning) | 3 | |
| Revolving beacon | 1 | ||
| Lamps for license plate/warning lamp | 1 set | ||
