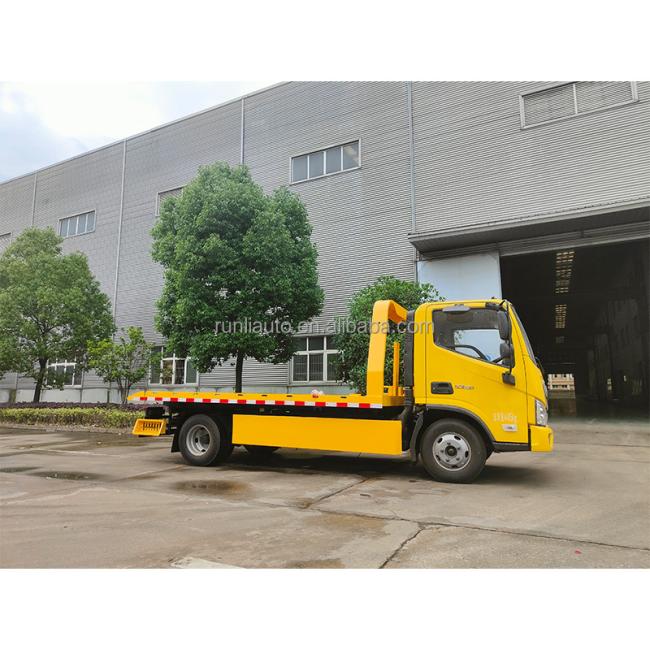

Foton Aumark Road Wrecker Truck 4x2 Flat Bed Recovery Truck Euro Ⅲ Standards
SHOCK PRICE! FOTON AUMARK tow truck 4*2 flat bed recovery truck
|
Vehicle model |
AUMARK-T33 |
|
|
Cabin |
Single row/W1800/left rudder |
|
|
Whole vehicle main dimensions |
Overall dimensions (LxWxH)mm |
5875×1915×2230 |
|
Wheel base(mm) |
3360 |
|
|
Weight data |
Curb weight(kg) |
2100 |
|
Gross vehicle weight(kg) |
4485 |
|
|
Persons in cab |
3 |
|
|
Whole vehicle main performance |
Max. speed(km/h) |
95 |
|
ENGINE |
Model |
BJ493ZLQV1 |
|
Emissions standards |
EuroⅢ |
|
|
Displacement(L) |
2.771 |
|
|
Rated Power(kw/rpm) |
80 |
|
|
Max torque (N.m/rpm) |
280 |
|
|
Gearbox |
Model |
JC5-28 |
|
Front axle |
Type/Mainreducetion ratio |
2.2T |
|
Rear axle |
Type/Mainreducetion ratio |
5.0T/6.142 |
|
Suspension |
Front suspension/Leaf spring number |
3+1 |
|
Rear suspension/Leaf spring number |
6+7 |
|
|
Brake system |
Service brake |
Drum pneumatic braking |
|
Parking brake |
Central drum brake |
|
|
Auxiliary brake |
Engine exhaust brake |
|
|
Wheels and tyre size |
6+1/( 7.00R16) |
|
|
Upload parameters |
Lifting system |
Maximum lifting weight(kg) |
1800 |
|
|
Maximum lifting capacity at full extension(kg) |
1330 |
|||
|
After Joe distance (mm) |
2540 |
|||
|
Effective length of bracket (mm) |
1640 |
|||
|
Support arm telescopic stroke |
1340 |
|||
|
Telescopic stroke of bracket (mm) |
7 |
|||
|
The lower Angle of the bracket |
-9.5 |
|||
|
The maximum distance from the ground on the upper surface of the fully retracted cross arm (mm) |
550 |
|||
|

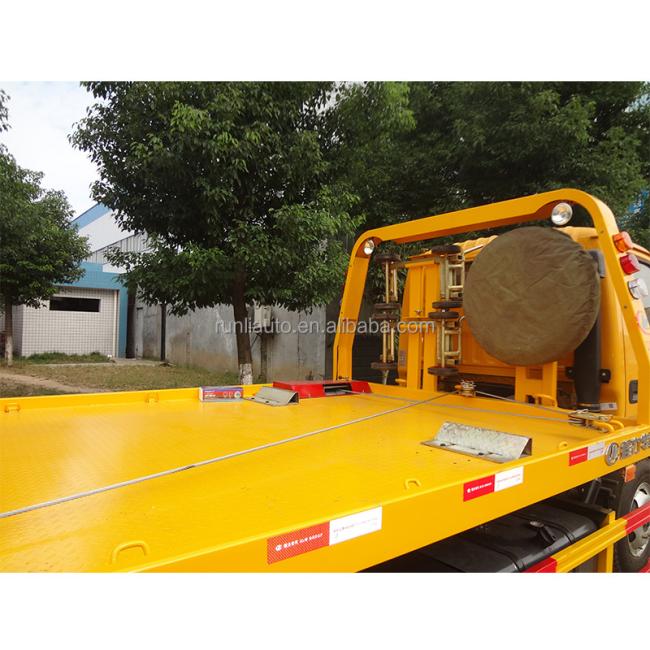

platform |
Inner Length (mm) |
5550 |
||
|
Inner Width (mm) |
2220 |
|||
|
Minimum inclination Angle of platform |
8 |
|||
|
Platform working stroke (mm) |
2700 |
|||
|
Platform height above ground (mm) |
1070 |
|||
|
Maximum bearing capacity of plate mechanism (kg) |
3000 |
|||
|
winch |
Quantity |
1 |
||
|
Rated traction per unit (kN) |
40 |
|||
|
Diameter of wire rope (mm) |
φ11 |
|||
|
Length of wire rope (m) |
25 |
|||
|
Capstan Diameter (mm) |
φ110 |
|||
|
Minimum linear speed of wire rope (m/min) |
5 |
|||
|
Basaic configuration |
Hydraulic winch |
Hydraulic control system |
||
|
L-shaped tow arm |
Hydraulic lock |
|||
|
High strength side panels |
Alarm light (mounted on the gantry frame, removable |
|||
|
Lighting alarm light system |
Lashing rope: 4 pieces |
|||
|
Training wheels |
Take power. |
|||
