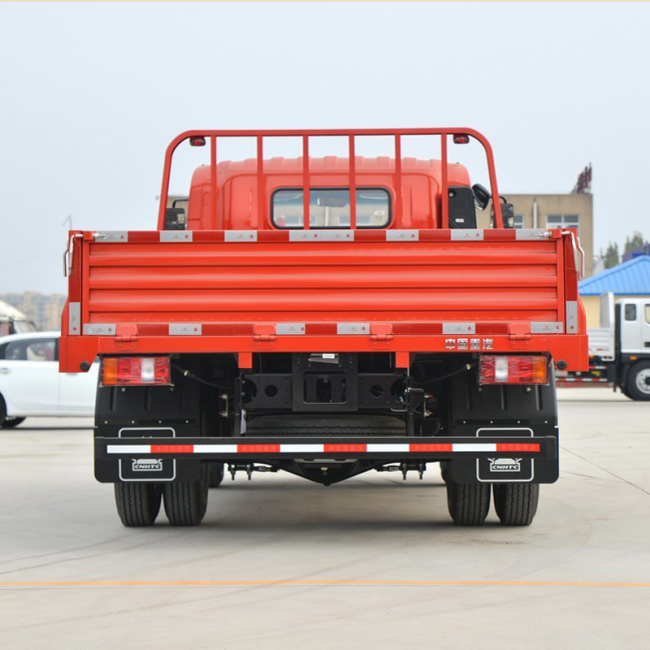

SINOTRUK HOWO Single Row Column Plate-type Cargo Truck Wagon Fender Truck
Price:
CN¥78,814.63/sets 1-17 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
SINOTRUK HOWO
Product Description
| Announcement model: | ZZ1127H3315F1 |
| Type: | truck |
| Driving form: | 4X2 |
| Wheelbase: | 3280mm |
| Case length level: | 4.2 m |
| Engine: | Weichai WP2.5NQ160E61 |
| Gearbox: | Wan Li Yang WLY6GS46 |
| Body length: | 5.995 meters |
| Body width: | 2.55 m |
| Body height: | 2.6 m |
| Front wheel base: | 1800mm |
| Rear wheel base: | 1795mm |
| Vehicle weight: | 3.47 tons |
| Rated load: | 8.33 tons |
| Total mass: | 11.995 tons |
| Maximum speed: | 95KM/h |
| Tonnage class: | Light truck |
| Approach Angle: | 18 degrees |
| Departure Angle: | 17 degrees |
| Front/rear overhang: | 1.18/1.535 m |
| Engine type: | Weichai WP2.5NQ160E61 |
| Engine brand: | Weichai |
| Engine commonly known as: | Weichai WP2.5N |
| Number of cylinders: | 4-cylinder |
| Fuel Type: | Diesel oil |
| Cylinder arrangement: | orthostitial |
| Displacement: | 2.49 L |
| Emission standard: | Kokuroku |
| Maximum output power: | 118kw |
| Maximum horsepower: | 160 horsepower |
| Maximum torque: | 450N·m |
| Maximum torque speed: | 1400-2200RPM |
| Rated speed: | 2900RPM |
| Engine form: | High pressure common rail |
| Engine oil change cycle: | 50,000 km |
| Container form: | panel |
| Container length: | 4.15 m |
| Container width: | 2.3 m |
| Container height: | 0.4 m |
| Number of permitted passengers: | Three people |
| Number of seats: | Single row |
| Transmission model: | Wan Li Yang WLY6GS46 |
| Shift mode: | Manual operation |
| Forward gear: | Sixth gear |
| Number of reversals: | one |
| Front axle allowable load: | 4285KG |
| Rear axle allowable load: | 7710KG |
| Number of spring pieces: | 8/9 + 6 |
| Tire Specifications: | 8.25R20 16PR |
| Number of tires: | six |
| Vehicle brake type: | Air brake |
| Parking brake: | Cutoff brake |
| Engine braking: | In-cylinder braking |
| Front wheel brake: | Standard drum brake, optional disc brake |
| Rear wheel brake: | Drum brake |
