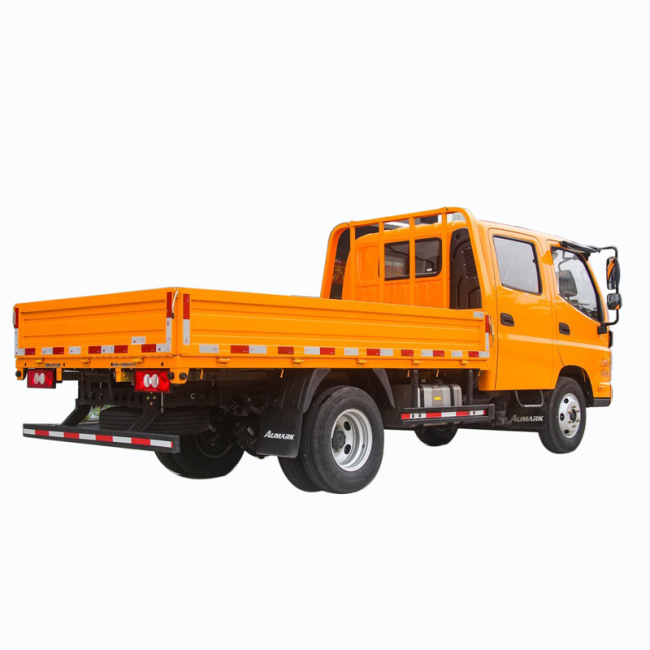

FOTON Double Row Pick up Truck Standard Truck Freight Car
Price:
CN¥78,814.63/sets 1-17 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Foton
Product Description
| Announcement model: | BJ1041V9AD6-FM | |
| Type: | truck | |
| Driving form: | 4X2 | |
| Wheelbase: | 3360mm | |
| Case length level: | 3.2 m | |
| Engine: | Power in the cloud D20TCIF1 | |
| Gearbox: | Wan Li Yang WLY5G32 | |
| Rear axle speed ratio: | 4.33 | |
| Body length: | 5.995 meters | |
| Body width: | 1.91/2 meters | |
| Body height: | 2.26/2.32 meters | |
| Front wheel base: | 1530mm | |
| Rear wheel base: | 1485mm | |
| Vehicle weight: | 2.5 tons | |
| Rated load: | 1.67 tons | |
| Total mass: | 4.495 tons | |
| Maximum speed: | 90KM/h | |
| Tonnage class: | Light truck | |
| Approach Angle: | 23 degrees | |
| Departure Angle: | 13 degrees | |
| Note: | Standard: Cruise; Manual doors and Windows and rearview mirrors; Vehicle wireless service controller; No stabilizer bar; MP3; Power steering; Knitted ordinary seats. Optional: Front and rear drum basic speed ratio (self-adjusting arm), front and rear drum large speed ratio (self-adjusting arm), front and rear drum large speed ratio (self-adjusting arm), Reversing image+Cruise #Reversing image+Cruise, central control lock + electric window + remote control. | |
| Front/rear overhang: | 1.085/1.55 m | |
| Engine type: | Power in the cloud D20TCIF1 | |
| Engine brand: | Intra-cloud dynamics | |
| Number of cylinders: | 4-cylinder | |
| Fuel Type: | Diesel oil | |
| Cylinder arrangement: | orthostitial | |
| Displacement: | 2L | |
| Emission standard: | Kokuroku | |
| Maximum output power: | 93kw | |
| Maximum horsepower: | 127 horsepower | |
| Maximum torque: | 350N·m | |
| Maximum torque speed: | 1400-2400RPM | |
| Rated speed: | 3200RPM | |
| Engine form: | Electronic common rail system HEGR+DOC+DPF+SCR+ASC | |
| Container form: | panel | |
| Container length: | 3.22 m | |
| Container width: | 1.81/1.9 m | |
| Container height: | 0.4 m | |
| Cab width: | 1800mm | |
| Number of permitted passengers: | Five people | |
| Number of seats: | Double row | |
| Transmission model: | Wan Li Yang WLY5G32 | |
| Shift mode: | Manual operation | |
| Forward gear: | Fifth gear | |
| Number of reversals: | one | |
| Fuel tank material: | Aluminium alloy | |
| Tank capacity: | 80L | |
| Front axle description: | 2.4 | |
| Front axle allowable load: | 1950KG | |
| Frame size: | 170×60×5mm | |
| Rear axle description: | 4.5 | |
| Rear axle allowable load: | 2545KG | |
| Speed Ratio: | 4.33 | |
| Number of spring pieces: | 7/4 + 5 | |
| Tire Specifications: | 7.00R16LT 8PR | |
| Number of tires: | six | |
| Braking form: | Pneumatic braking | |
| Form of air conditioning: | Manual operation | |
| Front wheel brake: | Drum brake | |
| Rear wheel brake: | Drum brake |
