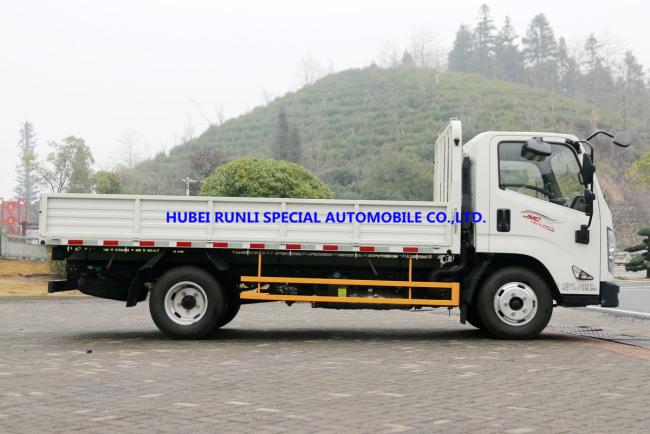

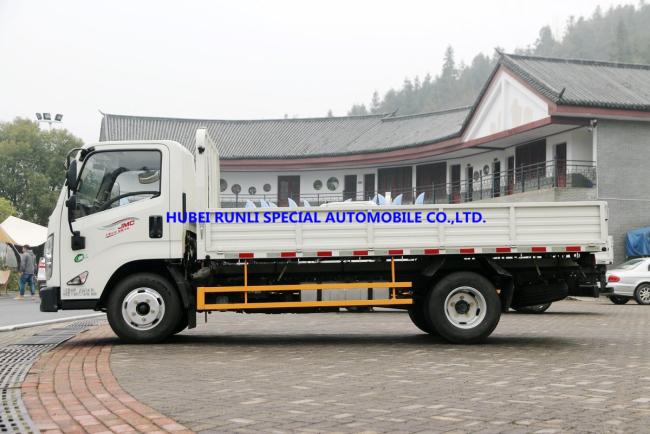

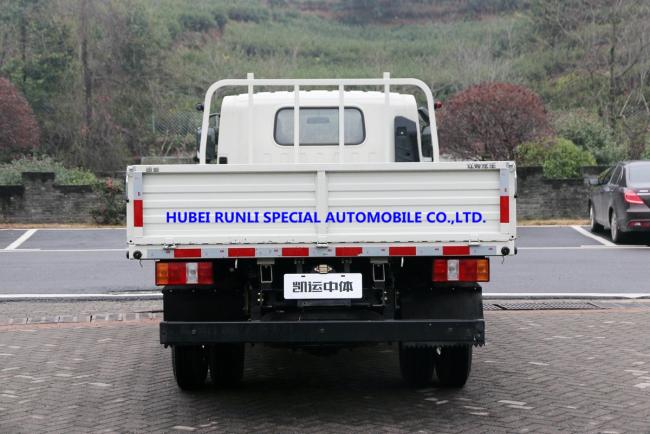

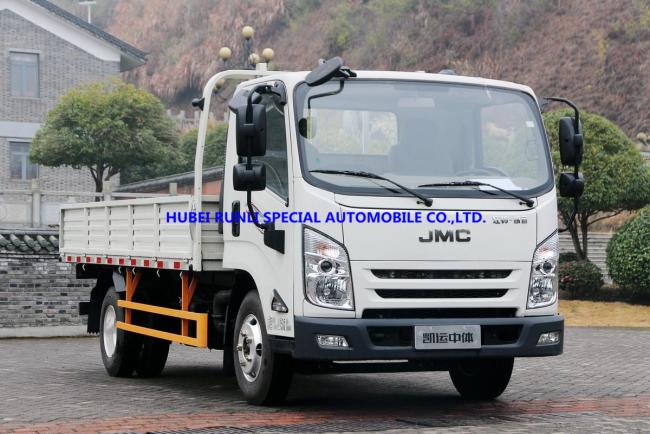

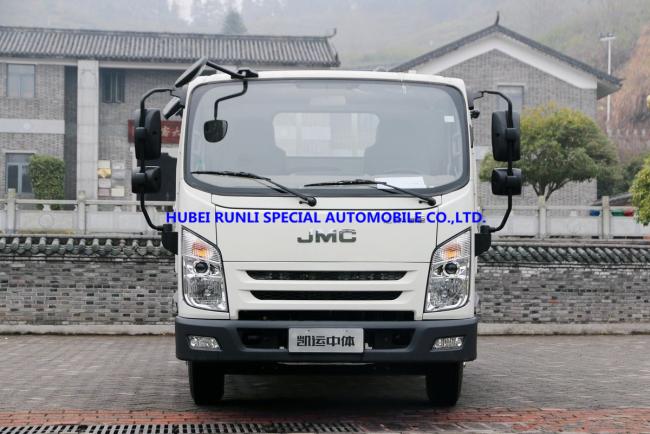

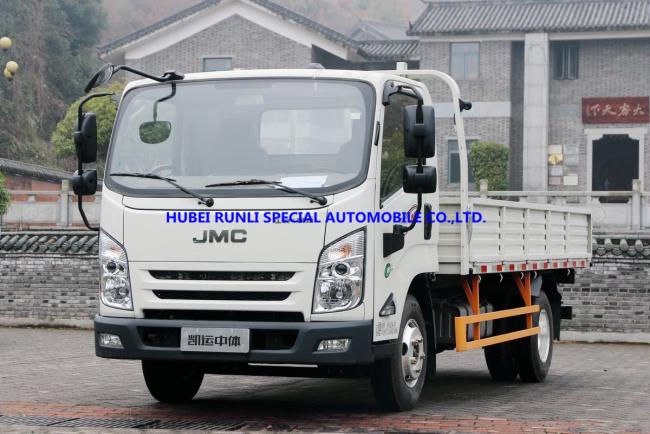

JMC Cargo Truck With Euro 3 Engine Good Price For Sale
| Product brand | JMC | |

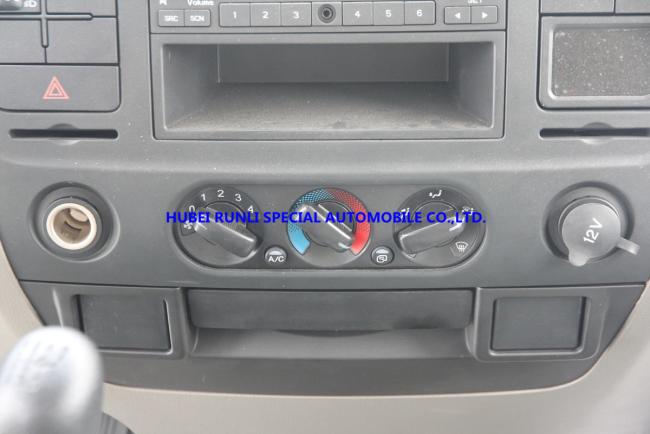

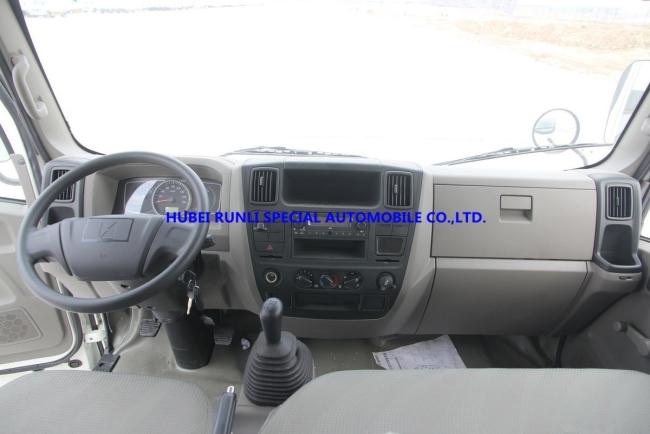

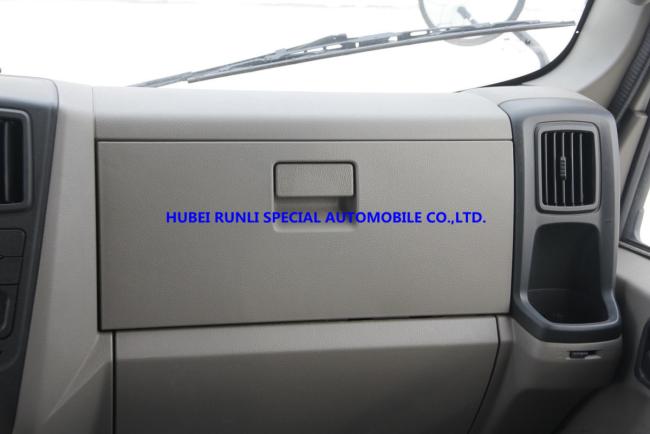

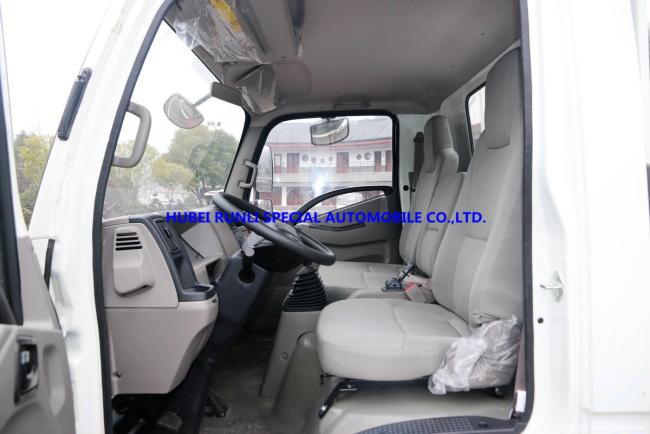

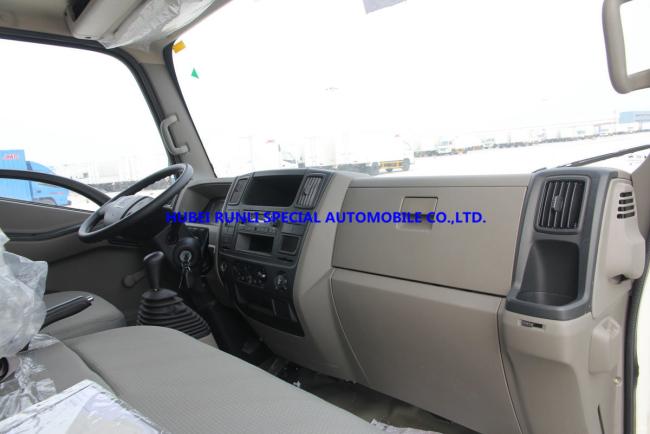

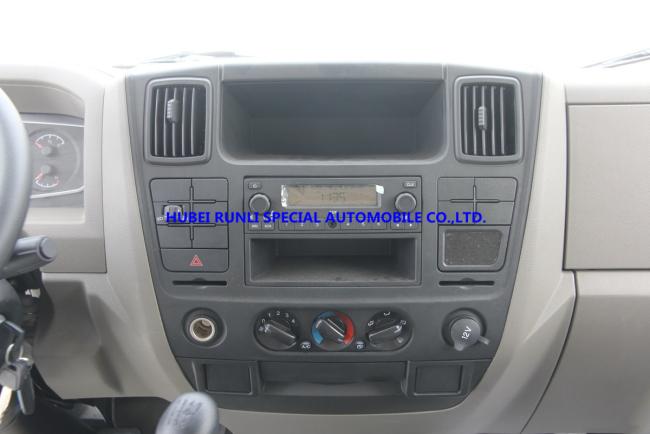

| Cabin / Passenger capacity | New model N720,single row,luxury configuration,power clutch,2 passengers + 1 driver,front lifting,MP3,A/C | |
|

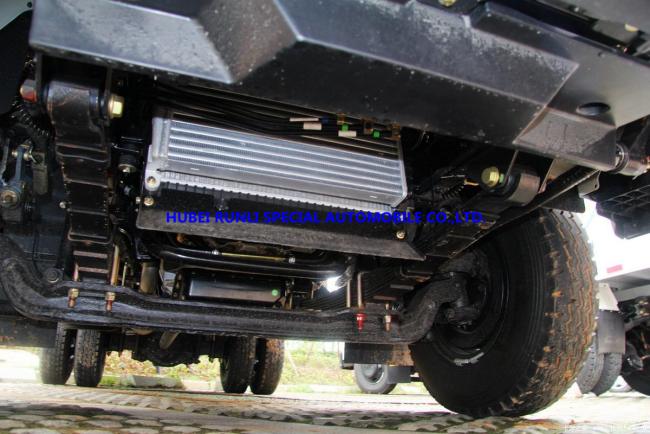

Chassis | Model | JX1063TP1 |
| Overall dimensions | 5445x2030x2230 mm (L*W*H) | |
| Curb weight | 2350 kgs | |
| Design load | 4000 kgs | |
| Drive type | 4x2 | |
| F/R suspension | 1075/1535 mm | |
| Wheelbase | 2800 mm | |
| Number of axles | 2 | |

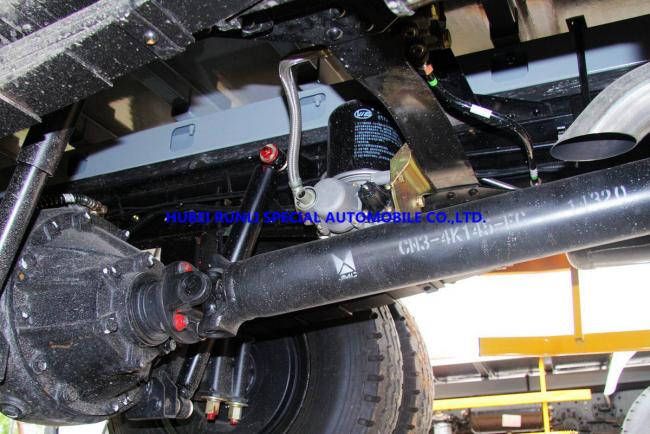

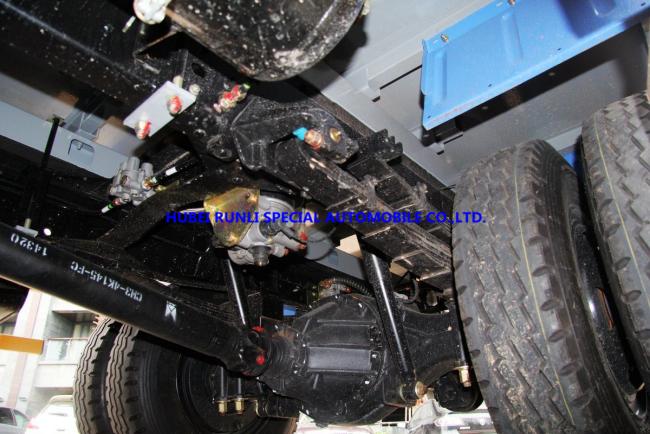

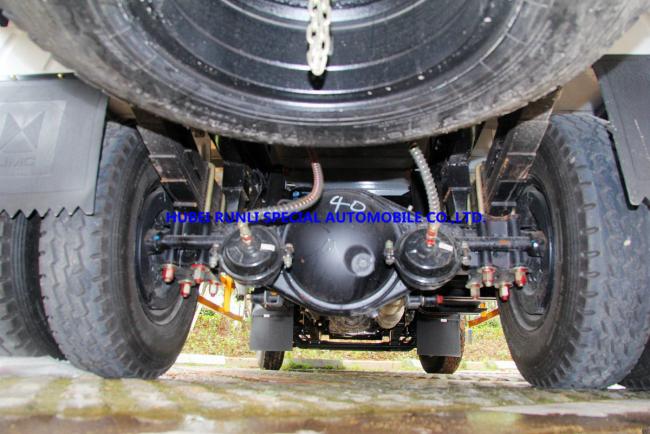

| Axle-load | 2000/4400 kg (one rear driving axle) | |
| Approach/Departure angle | 19/15 ° | |
| Number of leaf spring | 6/5+4 | |
| F/R track | 1480/1425 mm | |
| Tire ( No. & specification) | 6+1pcs, 7.00R16 | |
| Max speed | 100 km/h | |
| Brake system | Hydraulic braking | |
| Steering | Left hand drive with power steering | |

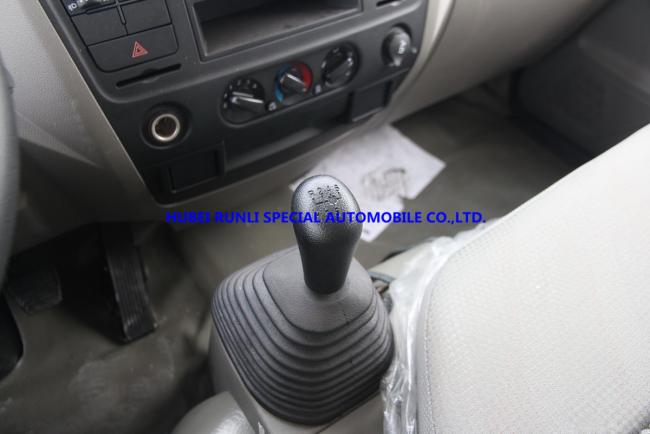

| Transmission | JC528T8,mechanical,5 forward + 1 reverse gears | |

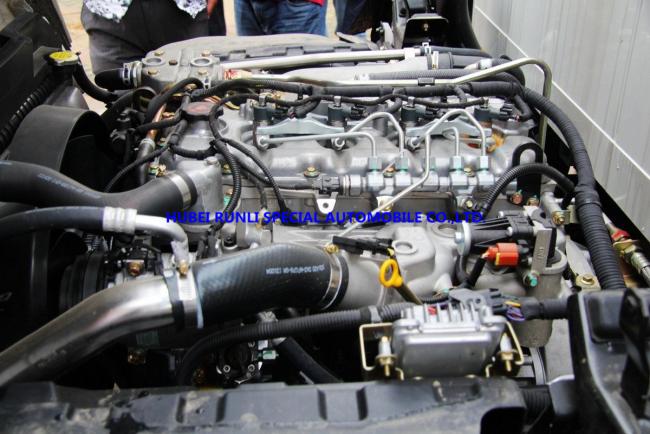

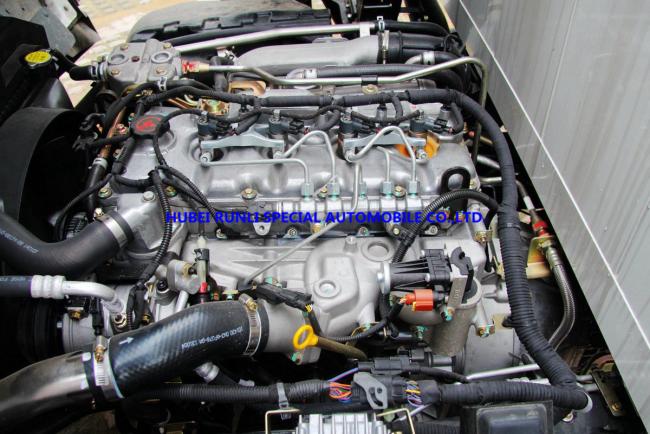

| Engine | Engine model | JX493ZQ4A (Euro 3) |
| Max.power | 68KW(92HP) | |
| Description | In line,water cooled,four strokes,turbo charged,inter cooled, direct injection,diesel engine | |
| Rated revolution | 3600rpm | |
| Max torque | 200N.m@2000rpm | |
| Exhaust | 2771 ml | |

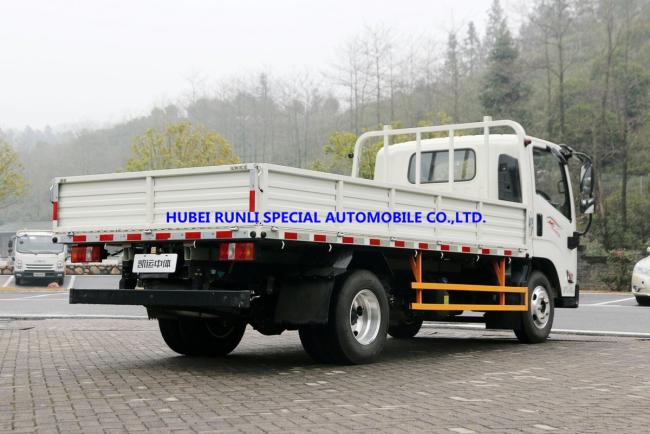

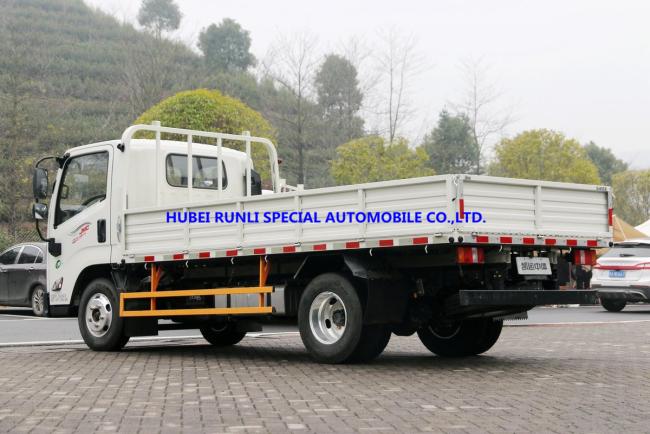

| Cargo van | Dimension | 3700x1940x380 mm (L*W*H) |
| Material | Carbon steel | |
| Thickness of front and rear plate | 3 mm | |
| Thickness of side plate | 2 mm | |
| Thickness of bottom plate | 3 mm | |
| Painting | Description | With sand blasting, painted with epoxy paint,finished color |
| Warranty | Year | 1 |
If need more detailed information,please feel free to contact me.
Contact person Mr. Lisbon Lee
Welcome to visit our company in China!
Our company address:
NO.77,Century Avenue,Zengdu Economic Development Zone,Suizhou City,Hubei Province,China
