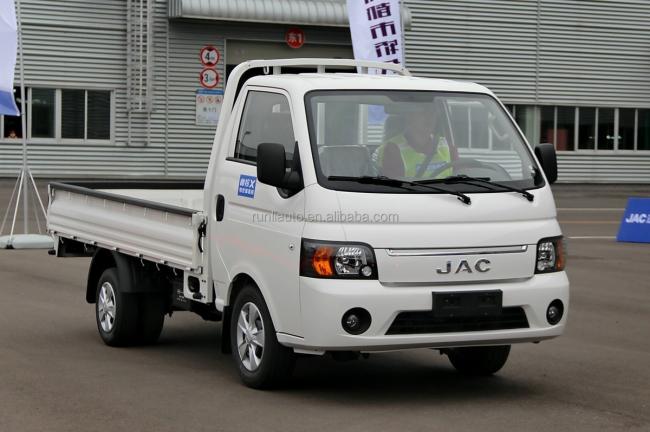

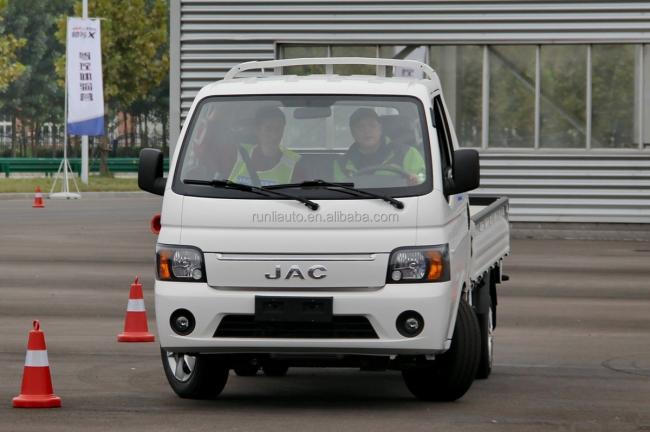

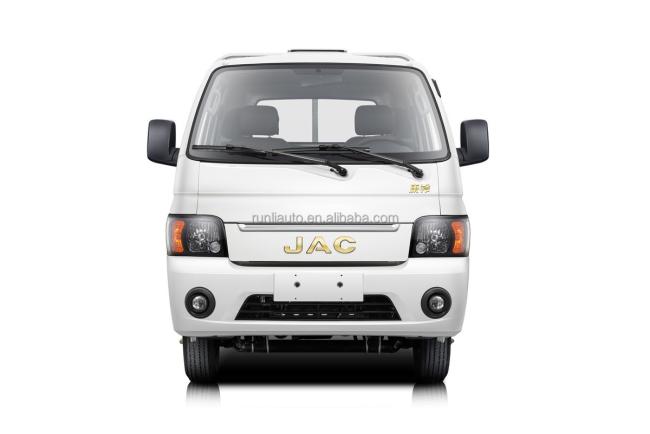

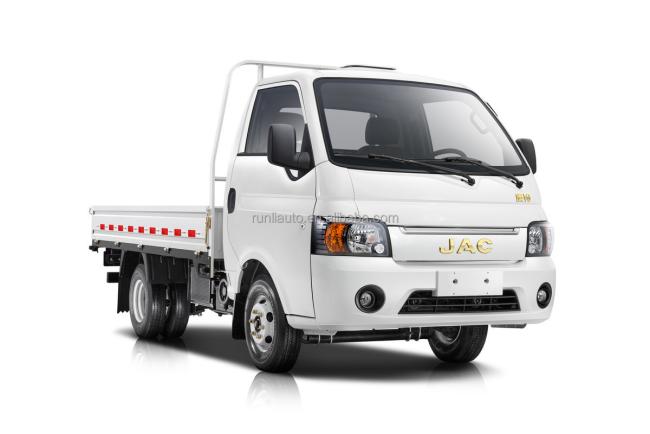

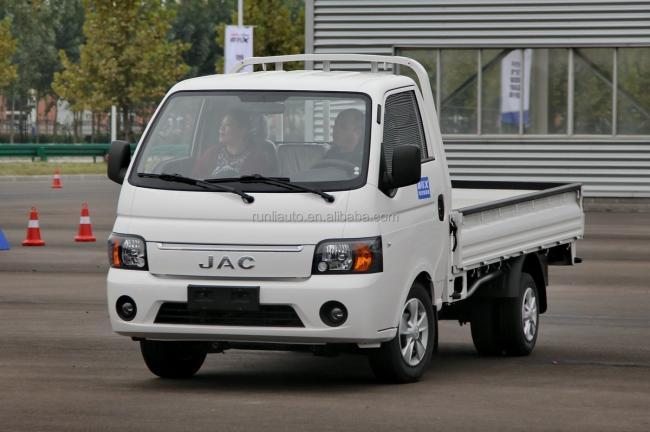

JAC X5 Small Cargo Lorry Truck 3Tons 120HP Gasoline Engine Left Steering
|
Chassis model |
HFC1030PV8 |
|
|
Engine |
||
|
Model |
HFC4GB3-3E |
|
|
Description |
In-line/4 cylinders/normally aspirated /water cooled/ electric control/VVT/gasoline engine |
|
|
Rated power of engine (kw/HP) |
88/120 |
|
|
Maximum torque (N.m@rpm) |
155@3500~4500RPM |
|
|
Displacement (ml) |
1590 |
|
|
Emission standard |
Euro VI |
|
|
Gearbox |
||
|
Description |
MG70,manual,5 forward gears & 1 reverse gear |
|
|

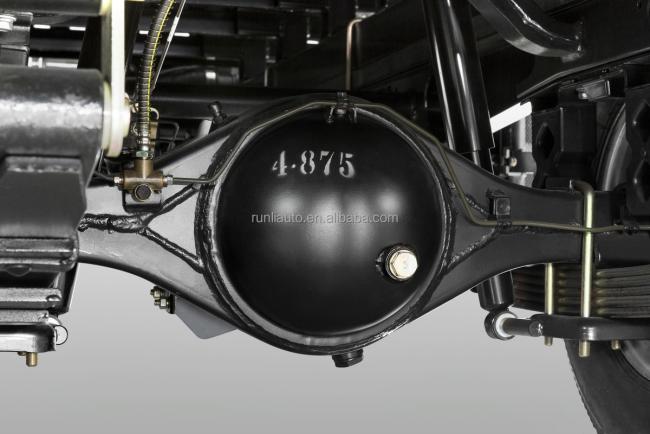

Front / Rear axle |
||
|
Front axle load (Kg) |
1255 |
|
|
Rear axle load(Kg) |
2240 |
|
|
Drive type |
4X2 |
|
|
Type of tire |
175/75R16LT 8PR |
|
|
Quantity of tires |
6+1 |
|
|
F/R leaf spring |
Non-independent suspension, with auxiliary leaf spring 3/3+2 |
|
|
Brake system |
Service brake type |
Drum type,hydraulic pressure double loop braking |
|
ABS |
Provided |
|
|
Parking brake type |
Energy storage spring rear wheel braking |
|
|
Steering device |

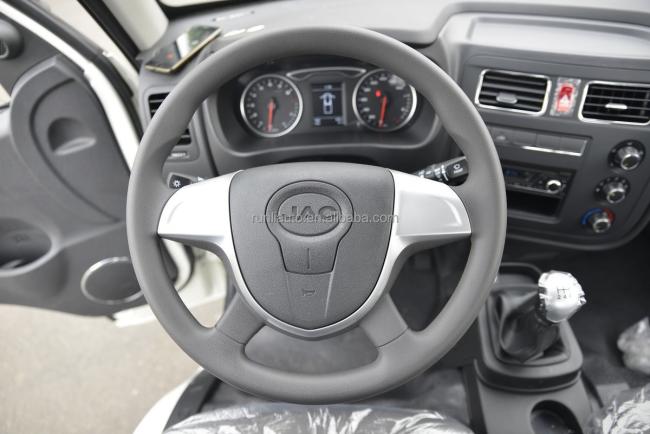

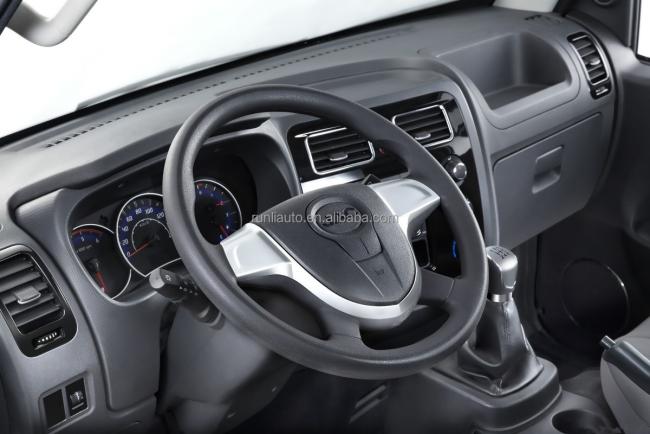

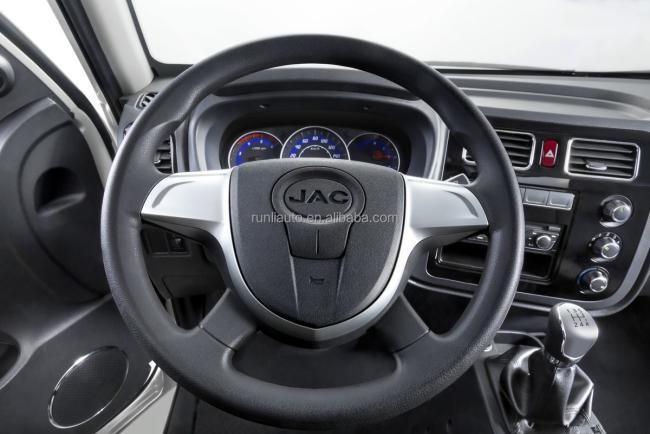

Left hand drive,power steering |
|
|
Weight parameter |
||
|
Curb weight (Kg) |
1570 |
|
|
Load capacity(Kg) |
3000 |
|
|
Performance parameter |
||
|
Maximum speed (km/h) |
100 |
|
|
Maximum grade ability (%) |
≥22% |
|
|
Dimension parameters |
||
|
Overall dimensions (LxWxH)mm |
5180×1850×2070 |
|
|
Internal van dimensions (LxWxH)mm |

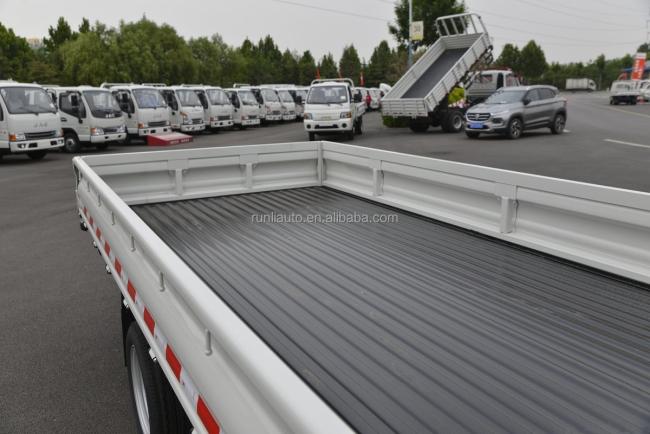

3110×1750×355 |
|
|
Wheelbase (mm) |
2600 |
|
|

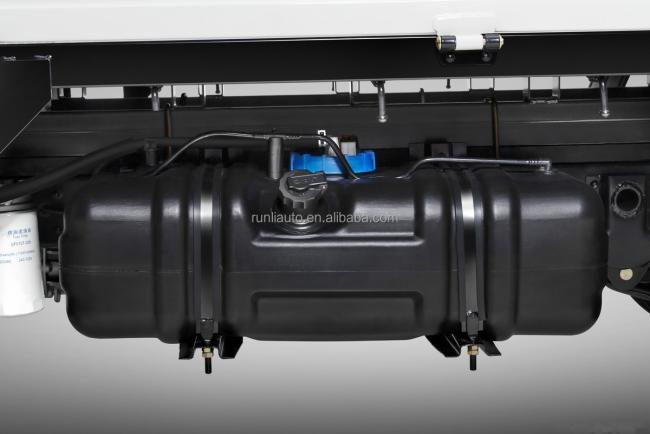

Fuel tanker capacity |
75L |
|
|

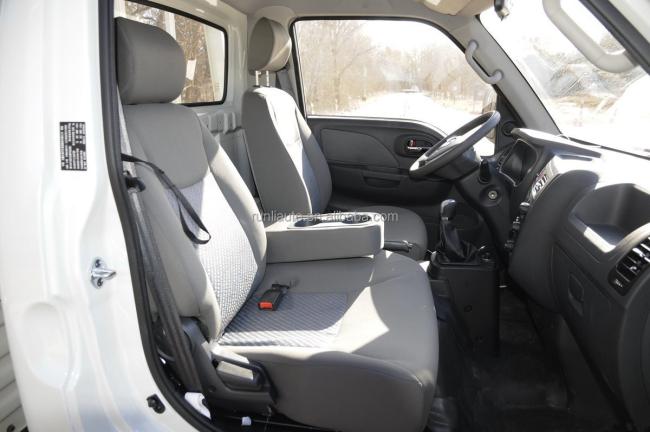

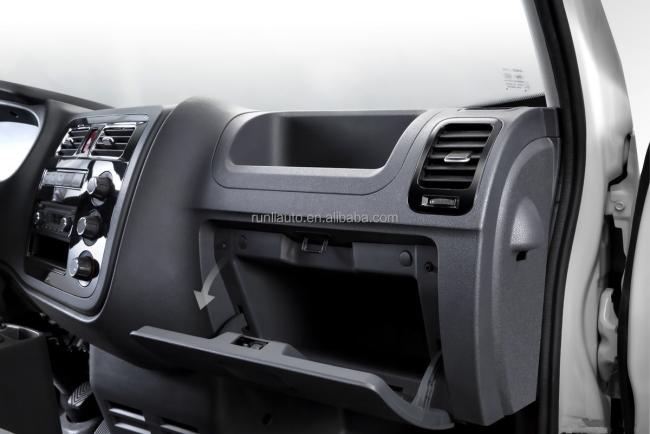

Cabin |

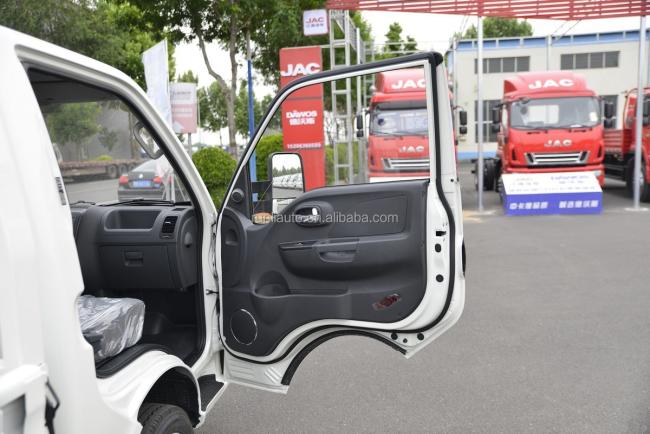

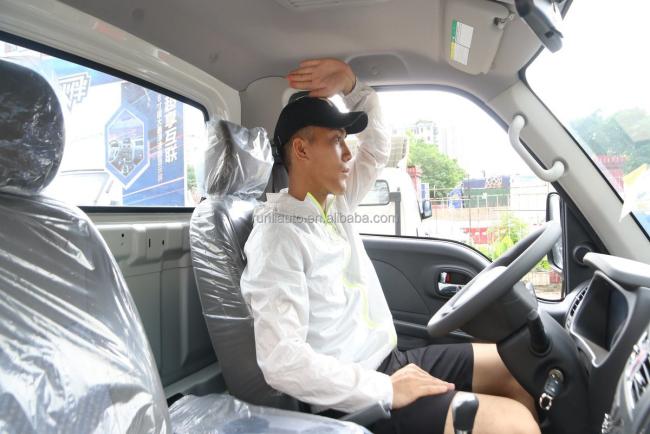

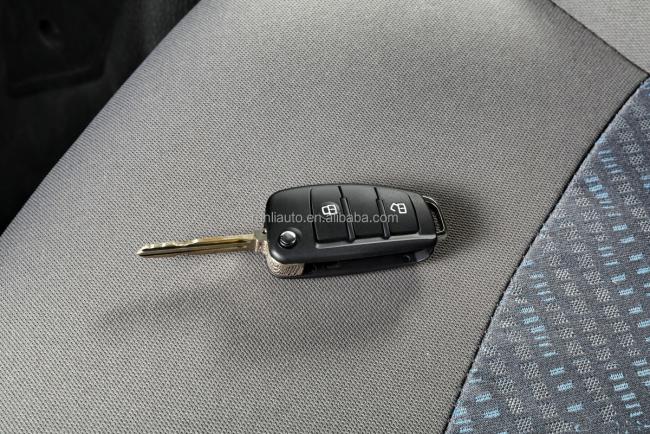

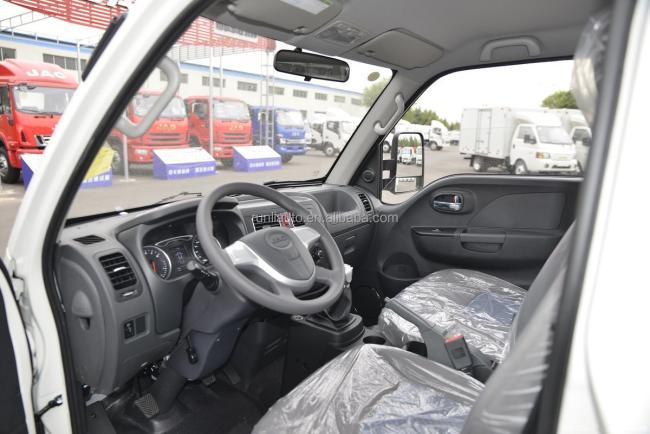

Single row,metallic painting,sedan configuration,2 passengers allowable,adjustable steering wheel, power-assisted clutch,radio,USB+AUX,A/C,central lock,electric window,safety belt provided |
|
FAQ
Q:How about the warranty?
A:One year.
Q:Do you have ISO certificate?
A:Yes , we have,please contact us to get our certificates.
Q:How about the delivery time?
A: Most of our trucks have stock ,we can deliver to you within 7 days, if specially ordered , normally we need around 30 days for production.
Q: How many units of truck does your factory produce per year?
A:Almost 3000 units.Nearly 300units per month.
Q: How do you control the quality of product?
A:Our Factory has standard production workshop,gets ISO CCC BV certificates,our workers are well trained. Every unit of product undergoes a rigorous inspection process.
Q: How about your product after-sales service system?
A:Our main export countries have accepted after-sales
service,some countries use the third party service.
Q: Do you accept custom order? What’s is your MOQ order?
A:Yes, we do, our MOQ is 1 unit.
Q: What’s the payment terms?
A:By T/T or L/C at sight.
Q: How about shipment?
A:20FT container, 40FT container,40FT high container,
open-top container,flat bed container,Ro-Ro ship or bulk
ship according to the size the products.
