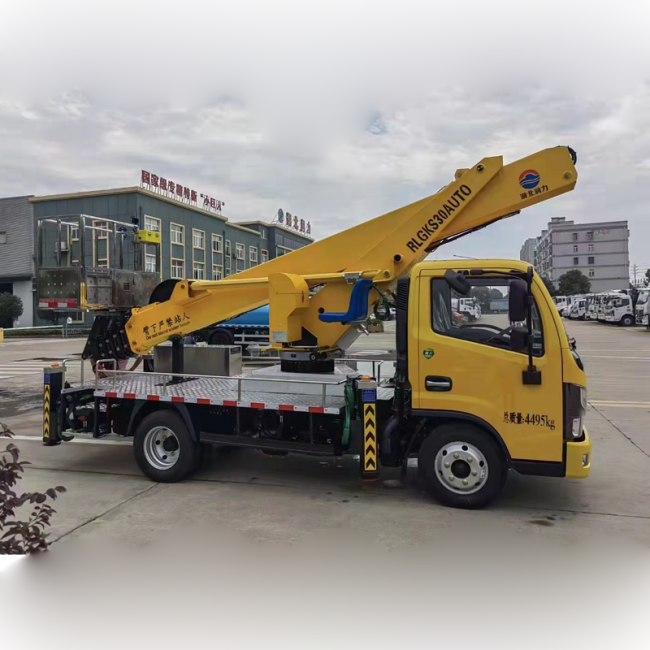

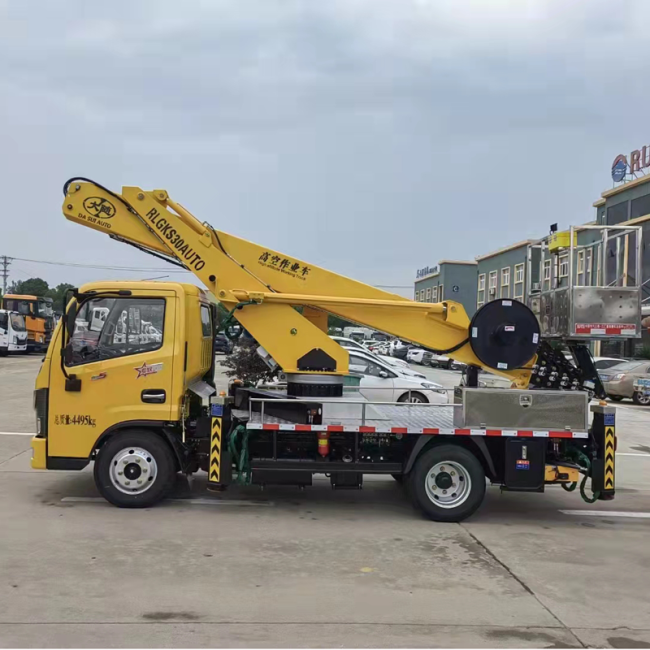

Dongfeng 30 Meter Single Row Truck Mounted Aerial Work Platform High Lift Operation
The configuration description mainly consists of configuration
|
The main components and configurations of SCS5046JGKEQ6 high-altitude work vehicle |
|
|
Component Name |
Brief description |
|
chassis |
Dongfeng EQ1045SJ3CDF Class II chassis, wheelbase 2950mm |
|
|
|
|
Driver's cab |
Single row seat, with 2 passengers allowed, and the driver's cabin equipped with air conditioning and storage systems |
|
Fence and walkway board |
Stainless steel toolbox, aluminum alloy anti slip walkway, stainless steel fence |
|
Power take-off system |
Pneumatic control, gear pump directly connected to power take-off |
|

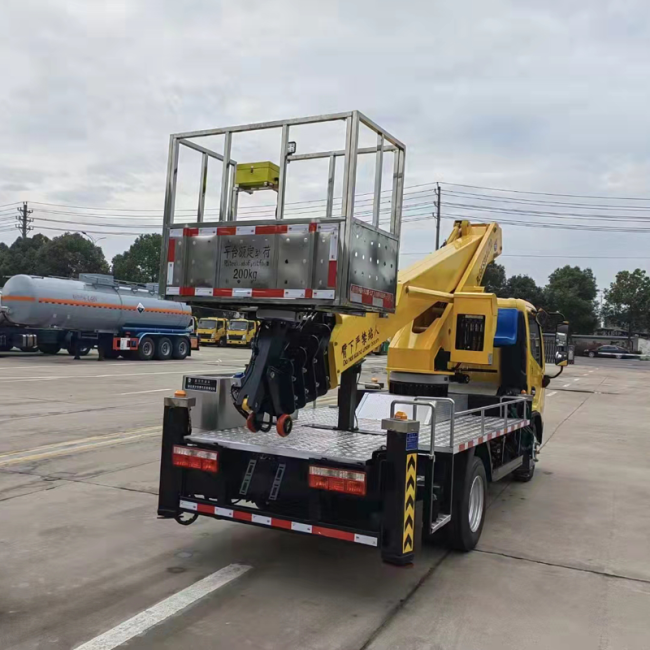

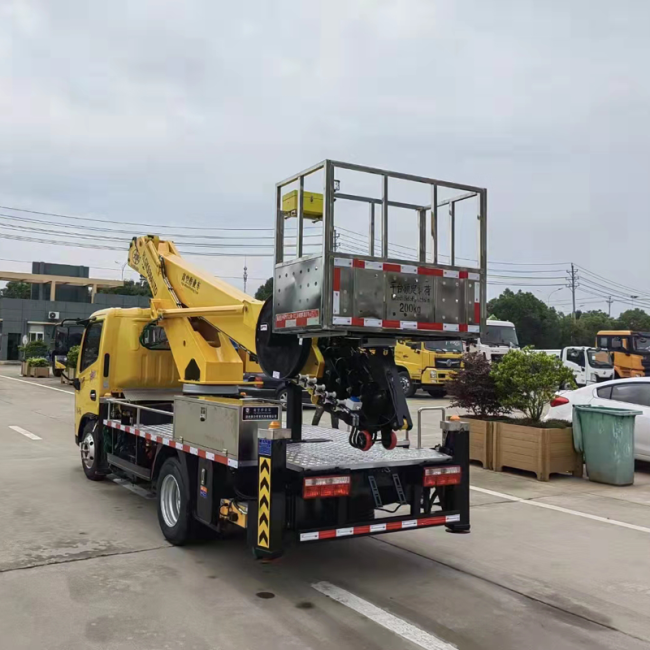

Work Platform |
one thousand and four hundred × seven hundred × 1100 mm, rated load 200kg, double person steel work platform (expandable to 2 meters) |
|
Arm form |
Six hexagonal arms and five synchronous telescopic arms |
|
Pipeline layout form |
External drum |
|
|
The turntable rotates continuously ± 360 °, and the worktable rotates ± 360 ° |
|
Outrigger |
rear V-shaped, individually adjustable |
|
operation |
Rotary table hydraulic handle operation, standard wireless remote control operation, vehicle hydraulic handle operation, equipped with emergency electric hydraulic pump. |
|
control system |
Load sensitive electro-hydraulic proportional control, achieving stepless speed regulation |
|
Leveling system |
|
Basic functions and safety configuration
|
Basic functional safety configuration of SCS5046JGKEQ6 high-altitude work vehicle: The work vehicle can achieve high-altitude work with a platform load of 200kg, a maximum working height of 30m, and a maximum working amplitude of 12m for the boom. The work platform is automatically leveled. |
|
|
name |
Brief description |
|
Automatic interlocking device for boarding and alighting |
Used for interlocking boarding and alighting, to prevent danger from accidental operation |
