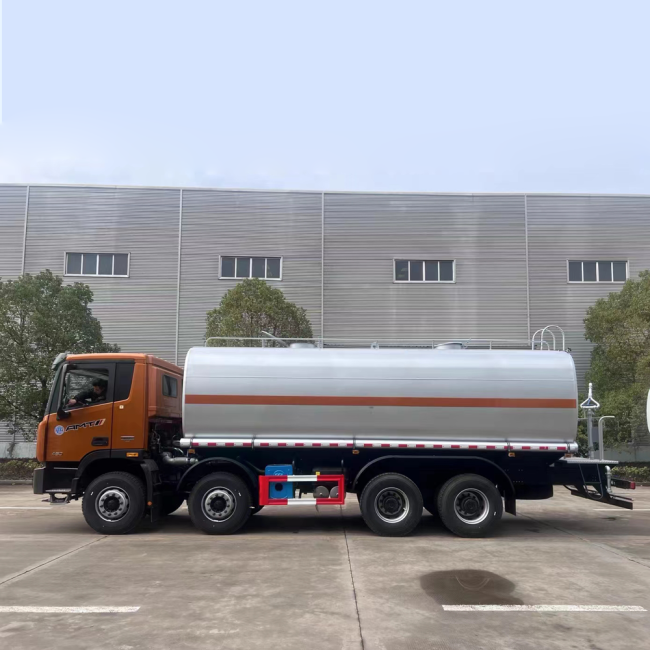

Foton 30000 Liters Sprinkler Water Sprayer Water Broswer
| Product Name | SCS5181GSSSX6Green Spray Truck |
| Spray truck function | Greening, spraying, dust reduction, and cleaning |
| Tank volume(m³) | 24 |
| Total mass(Kg) | 31000 |
| Rated load capacity(Kg) | 19390 |
| Curb weight (Kg) | 11480 |
| Number of passengers allowed in the cab (person) | 3,2 |
| External dimensions(mm) | 11100,111620×2500,2530×3185 |
| Maximum speed (Km/h) | 89 |
| Wheelbase (mm) | 1995+4000+1350 |
| Driver's cab | Foton |
| Chassis | Foton |
| Power (kW)/horsepower (PS) | 231/315 |
| Displacement(ml) | 6700 |
| Emission standards | Euro VI |
| Tire models | 11R22.5 18PR,295/80R22.5 18PR |
| Top standard configuration | The tank body is made of Q23B type 4mm plate, with automatic welding of the cylinder body, automatic ring plate, automatic edge rotation of the head, and butt welding of the cylinder body and the head. The tank body is equipped with an anti wave plate (edge wrapping), an Yifeng sprinkler pump (60/90), a dedicated self suction centrifugal pump, front flushing and rear spraying, side spraying, platform anti-aircraft gun, and can be equipped with a fog gun device. The control unit can choose to install a pneumatic control device. The water pump can be equipped with a Weilong pump.
|
