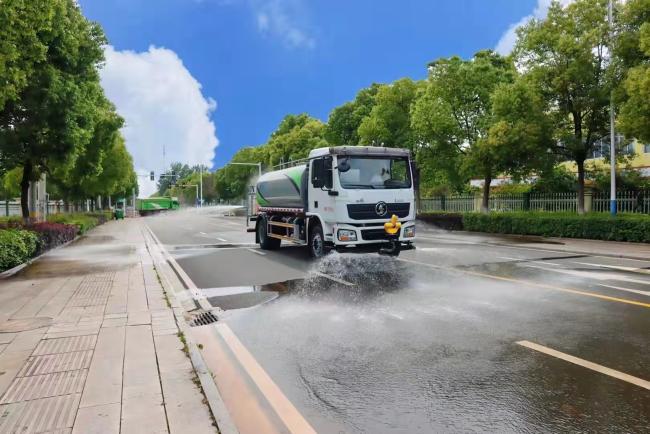

Shacman 4*2 10000-12000 Liters Sprinkler Truck Greening and Spraying and Dust Reduction and Cleaning Truck Street Sprinkler

Product Name

SCS5181GSSSX6Green Spray Truck

Spray truck function

Greening, spraying, dust reduction, and cleaning

Tank volume(m³)

12

Total mass(Kg)

18000

Rated load capacity(Kg)

10570,10505

Curb weight (Kg)

7300

Number of passengers allowed in the cab (person)

3

External dimensions(mm)

8450,8600×2500,2550×3100,3280

Maximum speed (Km/h)

89

Wheelbase (mm)

4500,3800,4200,4700,5100,5300,4000,5600,3900

Driver's cab

Shacman

Chassis

Shacman

Power (kW)/horsepower (PS)

169/230

Displacement(ml)

6200

Emission standards

Euro VI

Tire models

10.00R20 18PR,11R22.5 18PR,295/80R22.5 18PR

Top standard configuration

The tank body is made of Q23B type 4mm plate, with automatic welding of the cylinder body, automatic ring plate, automatic edge rotation of the head, and butt welding of the cylinder body and the head. The tank body is equipped with an anti wave plate (edge wrapping), an Yifeng sprinkler pump (60/90), a dedicated self suction centrifugal pump, front flushing and rear spraying, side spraying, platform anti-aircraft gun, and can be equipped with a fog gun device. The control unit can choose to install a pneumatic control device. The water pump can be equipped with a Weilong pump.
