DC24v In-bulit Controller Solar Water Pump Submersible BLDC Motor Deep Well Solar Water Pump For Agriculture
Price:
USD1000-2000
MOQ:
1
Delivery Time:
7-15 Days
Brand:
ABG
Product Description
Product Description
Brief Introduction
Solar Pump Details
Model No. : RSSQD8-20-24-430D
Voltage: DC 24V
Power : 430W
Max Head: 15--20m
Max Flow: 5-10 m3/h
Outlet : 0.75inch, 1 inch, 1.5 inch
Cable : 2 m
Solar Panels:
Open Circuit Voltage (VOC) :
Power : ≥ 1.3*Pump Power
Warranty
- Solar water pump: 6 month
- MPPT controller: 6 month
- Solar panels: 25 years
Solar Pump Details

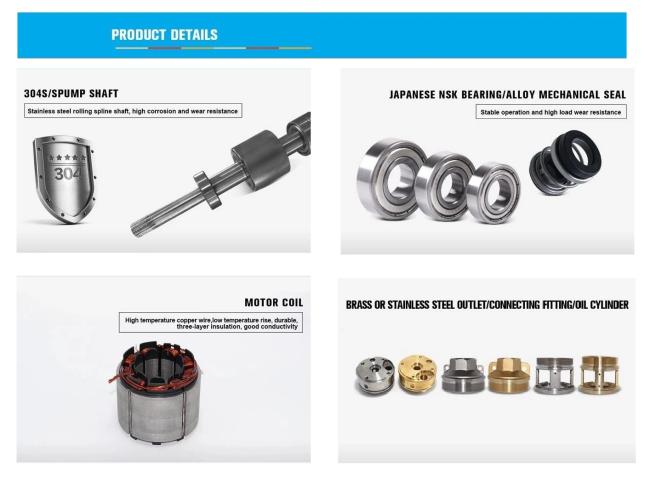

Our Advantages
- Permanent magnet brushless DC motor .
- Double bearing motor base can work under more axial pressure .
- Alloy mechanical seal: Longer working life and high reliability.
- Motor coil is made by automatic winding machine .
- Intelligent protection
- a. water shortage protection
- b. High voltage/Low voltage/Over-current/High temperature protection
- c. Automatically run/off when power enough or tank is not full.
- mppt controller
Solar Pump Choose

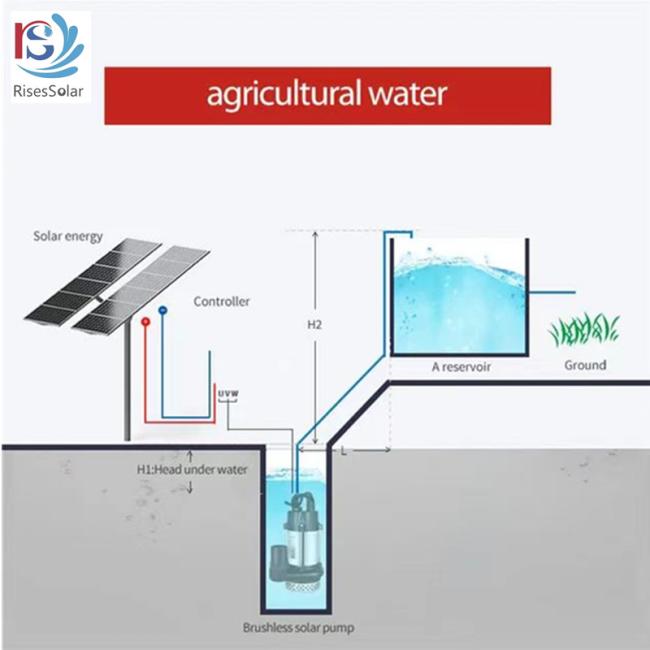

Max Head and Max Flow Calculate:
- Max Head : Distance of 'H1+H2+L/10
- Max Flow : How much water per hour or per day do you want?
Performance
| Model Number | ABG8-20-24-430D |
| Power range | 430W |
| Head range | 15~20 meters |
| Flow range | 0.5m³/h~10m³/h |
| Working voltage | 12V~48V DC |
| Product name | Solar Submersible Pump |
| Motor | DC Brushless Permanent magnet Motor,100% Copper |
