Intelligent Automatic Tripod Turnstile Gate with RS485 Communication 20-30 Persons/Minute 1500x280x980mm
Price:
90~3500USD
MOQ:
1
Delivery Time:
20 working days
Brand:
cxt
Product Description
Intelligent Automatic Tripod Turnstile Gate Outdoor With DC Brushless Motor

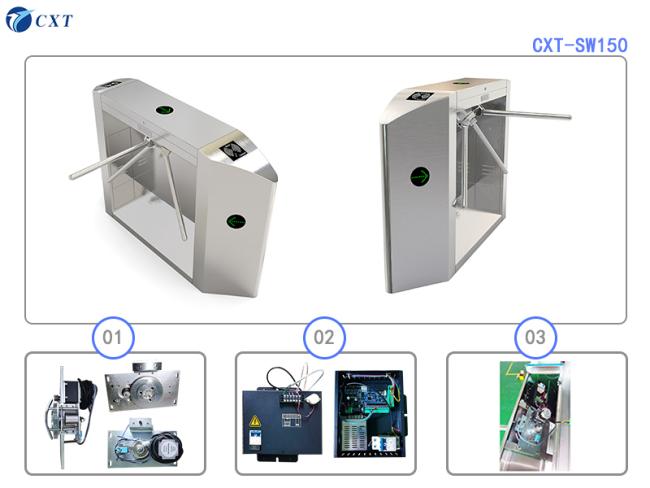

Sharp Corner Intelligent Automatic Tripod Turnstile CXT-SW150
| Model | CXT-SW150 |
|---|---|
| Specifications | 1500*280*980mm |
| Pole length | 510mm |
| Process | Produced by bending, cutting, welding, polishing, grinding and other processes |
| Material | National standard 304 stainless steel (can be customized 201 stainless steel, iron paint) |
CXT-SW150 Sharp Angle Tripod Turnstile Features
- Fault self-checking and alarm prompting functions for easy maintenance
- Standard card reader window with external switch/remote control for one-way or two-way passage control
- Automatic reset function with adjustable delay (3S, 5S, 10S, 60S)
- Anti-collision function with automatic locking when no opening signal is received
- Anti-tailgating function that locks after one person passes
- Automatic gate-dropping during power failure for fire safety compliance
- Compatibility with various card reading devices and relay switch signals
- Optical working principle prevents multiple passages per card swipe
- External button controls for left/right normally open functions
- Remote control and management capability via computer (customizable)
- Counting function for tracking number of people (customizable)
CXT-SW150 Technical Specifications
| Shell material | National standard 304 stainless steel frame (customizable 201 stainless steel or iron paint) |
|---|---|
| Processing technology | Bending, cutting, welding, polishing, grinding |
| Standard dimensions | Width 280*Length 1200*Height 980 (mm) |
| Weight | Approximately 70Kg |
| Gate rod length | 510mm |
| Maximum bearing capacity | 80Kg |
| Working driving force | 3Kg |
| Steering | One-way, two-way |
| Light prompt | High brightness traffic status indication |
| Working movement | 12V/20W solenoid valve |
| Working environment | Indoor, outdoor (canopy recommended) |
| Temperature range | -40℃ to 80℃ |
| Gate opening time | 0.2 seconds |
| Passing speed | Approximately 30 people/minute |
| Standard input interface | Relay switch signal |
Performance Comparison
| No | Name | Common series on the market | Pentium series |
|---|---|---|---|
| 1 | Rotation mode | push | electric |
| 2 | Positioning principle | optical coupling fixed point | 1/500 decoding |
| 3 | Positioning mode positioning arm | horizontal position | not locked |
| 4 | Transmission mode | solenoid valve | motor |
| 5 | Lifting rod mode | manual | automatic |
| 6 | Buffer | no | yes |
| 7 | Anti-reverse | no | yes |
| 8 | Noise | high | no |
| 9 | Mechanical wear | high | no |
| 10 | Illegal alarm | no | yes |
| 11 | Passage prompt | no | yes |
| 12 | Service life | 1-3 years | 5-10 years |
| 13 | Door rod thickness | ￠32 | ￠38 |
| 14 | Power off drop | yes | yes |
| 15 | Memory | yes | yes |
| 16 | Fire input | yes | yes |
| 17 | Feedback signal output | yes | yes |
The Tripod Swing gate offers exceptional value, combining high-quality features with competitive pricing without compromising on performance or durability.
