GTLCON Factory AC100A Electric Vehicle Yacht Ship Charging Lithium Battery Replacement Connector 2-Core Power Plug Power Cord Extension Cord

Product advantages

Key Features

● Patented Dual Locking Structure
This design utilizes a dual mechanical locking mechanism (main locking cover + sliding locking block elastic arm) to ensure connection stability through secondary engagement. Patent number CN223156419U. It boasts a plug-in/plug-out lifespan of >5000 cycles and vibration resistance that meets IEC 60512 standards.

●100A high current carrying capacity
Pure copper silver-plated contacts (cross-sectional area ≥50mm²), contact resistance <0.5mΩ, temperature rise ≤30K @ full load

Supports a wide voltage range of 4.5V-1000V, UL1977/EN61984 certified
High-temperature tolerance and safety protection
High-temperature-resistant housing material (PA66 + 30% GF), long-term operating temperature -40°C to 125°C
Integrated HVIL interlock function, compliant with SAE J1742

●Technical Advantages

Quick plug-in/plug-out: Push-pull self-locking structure enables one-handed operation, mating time <3 seconds
Anti-misplacement design: Barbed terminals with guide grooves reduce mis-mating rate to 0.1%
Global compliance: CE/UL/TUV certified, compliant with RoHS 3.0 & REACH regulations

●Typical Applications

New Energy: High-voltage interconnection of electric vehicle battery packs

Industrial Equipment: 100A-class servo drive power interface

Energy Storage System: DC-side connection of photovoltaic inverters

Any two-pin power supply appliance

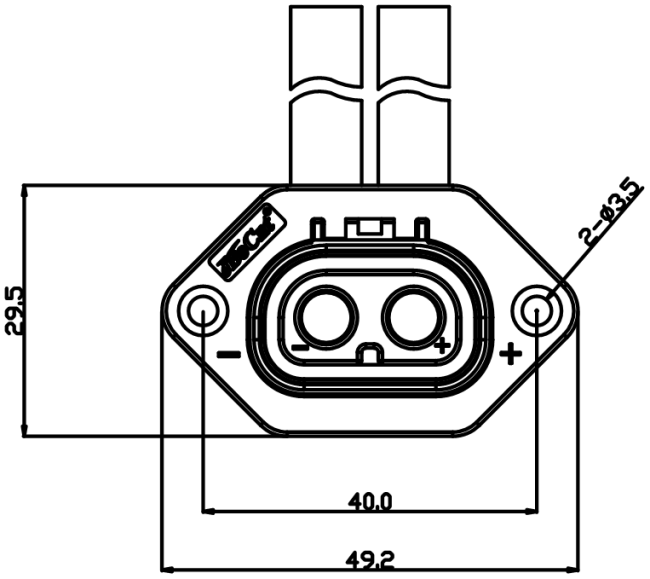

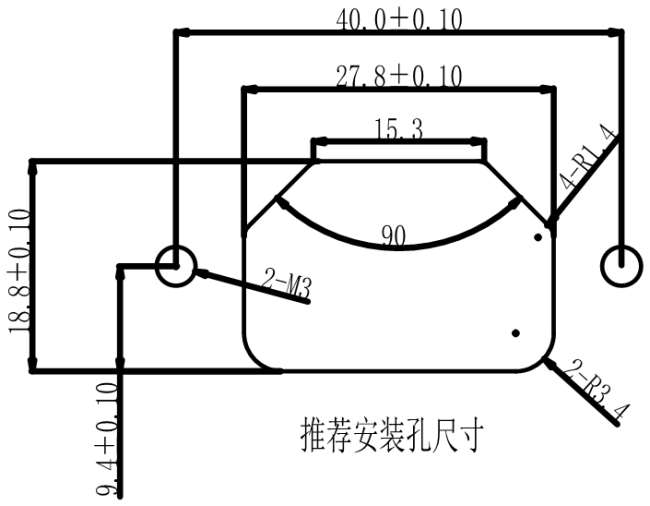

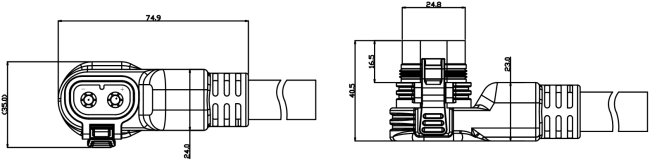

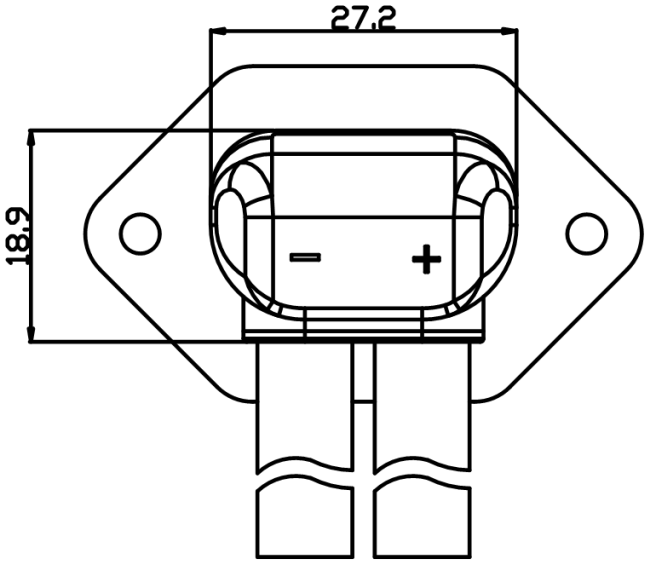

What is the size?

OUR CUSTOMERS

FAQ

Q: How can I purchase your product?
A: You will need to:
* Confirm the rated current and number of contacts
* Confirm the assembly style
* Confirm the cable gauge
* Confirm the cable length and shipping method

Q: How can I contact you?
A: Please email us. We have been in this industry for over 19 years, so we can identify your issue and resolve it quickly. If you have any questions, please feel free to let us know.
