2+2+2P Electric Scooter Connector IP68 Waterproof Male And Female Wire Connector
GTLCON Factory 2+2+2 Pin Electric Bike Male And Female Plug Socket Electric Scooter Waterproof Connector Electric Bike For Lithium Battery IP68 Waterproof Male And Female Wire Connector
The design of this connector has multiple advantages
| 1. High-quality conductor material, low resistance, high conductivity, and reduced energy loss. |
| 2. Adopting optimized structure, enhanced heat dissipation, and service life increased by 1.5 times compared with industry products. |
| 3. Adapt to vibration, temperature changes and humid environments. |
Advantages
• Push-lock mechanism
• Locking nut with lever
• Audible click when lock engaged
• 3 dots design increase stable connection in vibrating environment
• Countersunk panel mount solution with 90 degree cable out to reduce the overall height
• RoHS and REACH compliant
Product Introduction
This product is specially designed for electric two-wheelers. It adopts a new structural design, has low impedance and conductivity, excellent performance, and efficient connection without signal interruption. It is suitable for lithium battery systems in harsh environments such as electric vehicles and industrial and commercial electric equipment, ensuring stable charging and discharging and BMS management under complex working conditions.
Product Features

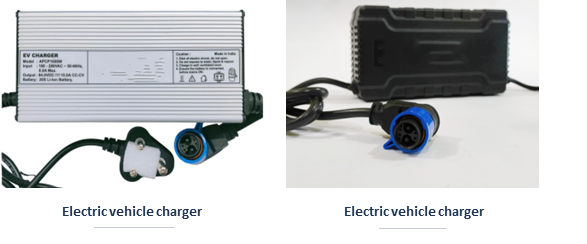

Application Areas
lithium battery systems in harsh environments such as electric vehicles and electric equipment.

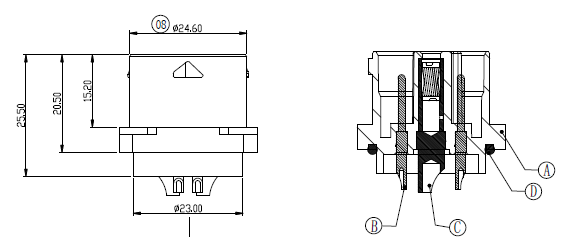

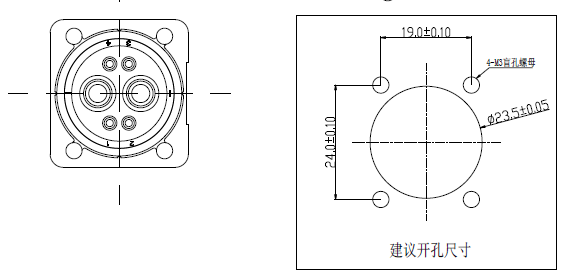

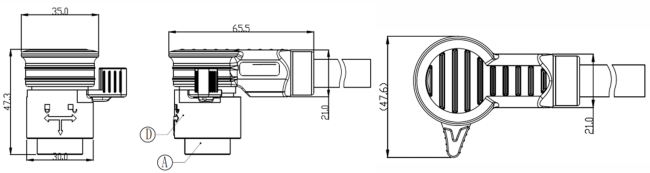

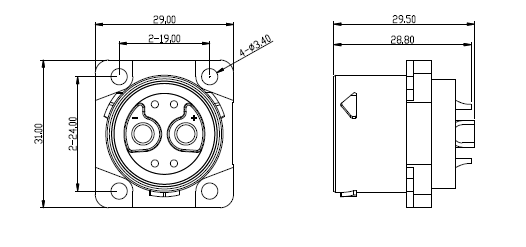

What is the size?
Female
Male
Our customers
FAQ
1. Q: Are you a factory or a trading company?
A: We are a connector manufacturer with 19 years of experience. We also hold ISO9001, CE, UL and other global certifications and support on-site factory inspections.
2. Q: What is the minimum order quantity (MOQ)?
A: The MOQ of standard products is 500 pieces. Customized products need to be evaluated based on the process. Some products support 100 trial orders.
3. Q: Can free samples be provided?
A: 1-2 free samples can be provided, but the customer needs to bear the international shipping costs; when there are many sample categories, the sample fee can be fully refunded after placing an order.
4. Q: What are the payment methods?
A: Support T/T (30% advance payment + 70% see the copy of the bill of lading), LC, Paypal (small orders), specific details can be negotiated.
5. Q: How long is the delivery cycle?
Answer: 15-20 days for conventional products, 25-30 days for customized products (including sample confirmation time), and an additional 10% fee is required for expedited orders.
6. Q: What should I do if there are quality problems?
Answer: We provide a 12-month warranty. You can apply for return or reissue with the test report within 7 days after receiving the goods. Please consult the engineer for specific questions
