GTLCON Group Jbocnt Group ODM OEM One In Four Waterproof IP68 Solar Cable Panel Photovoltaic System Male Female Parallel Branch Connector DC Photovoltaic Plug Socket Photovoltaic Connector

Product advantages

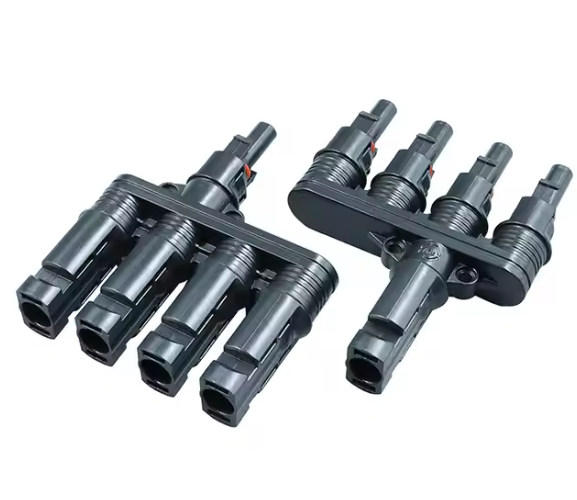

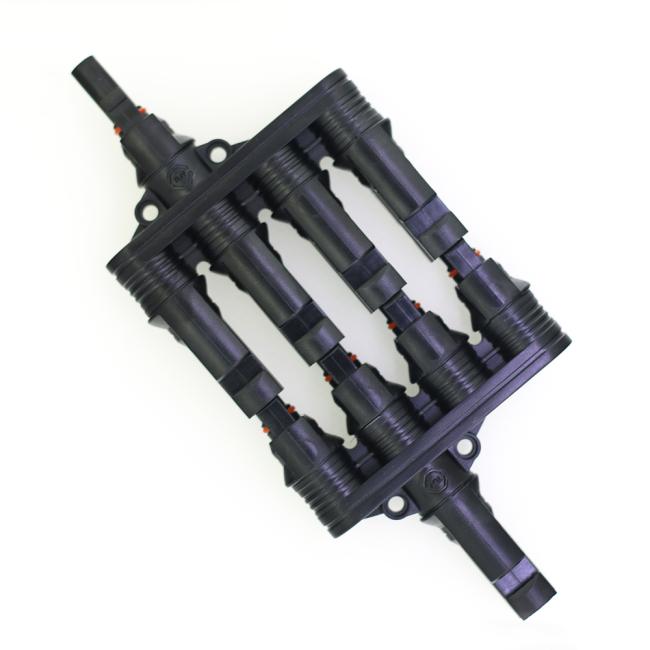

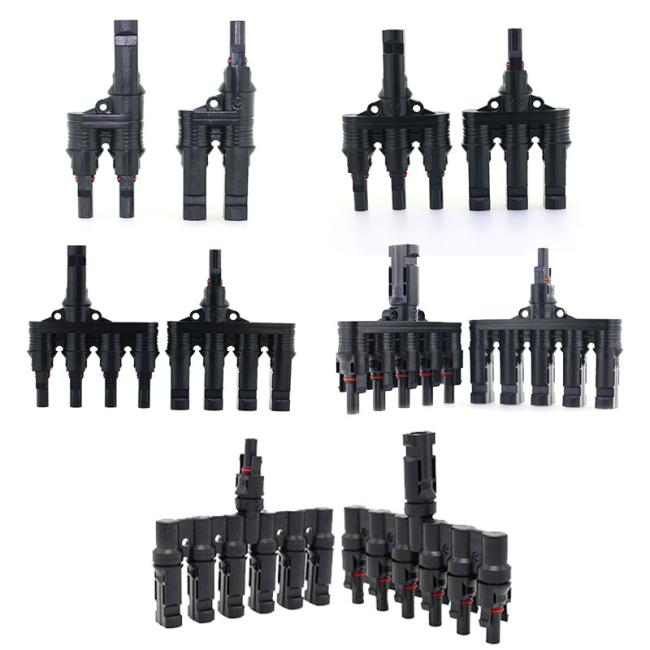

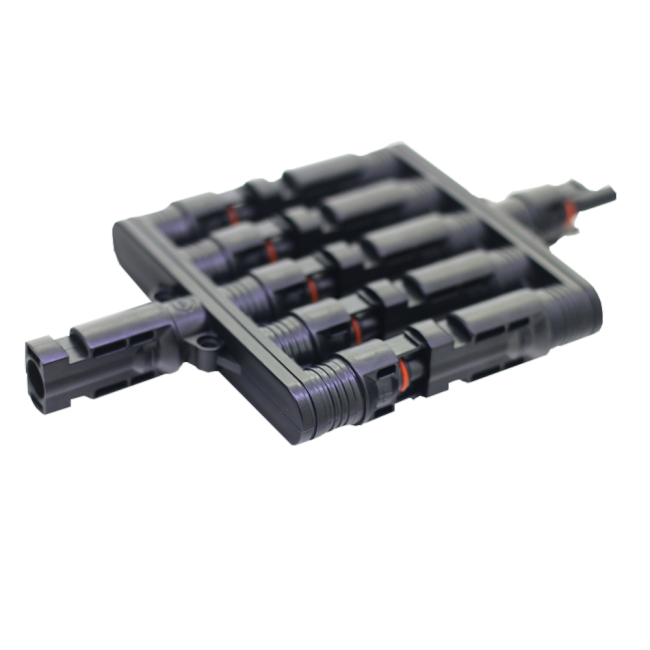

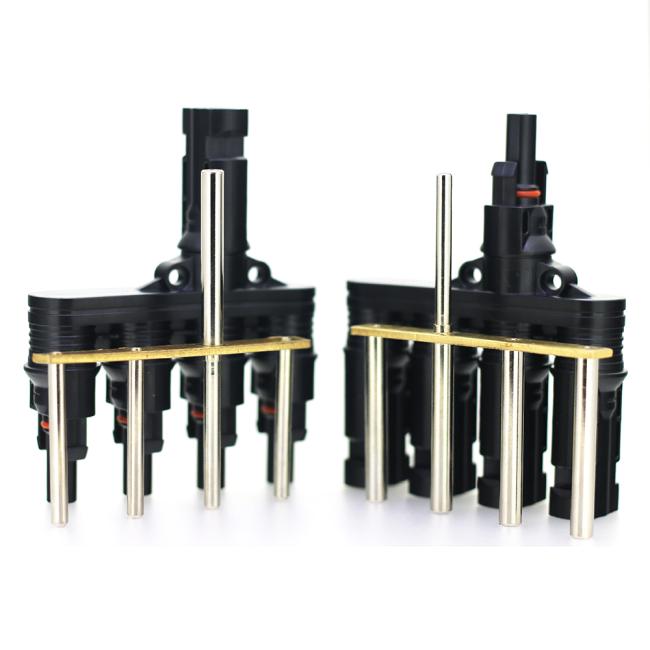

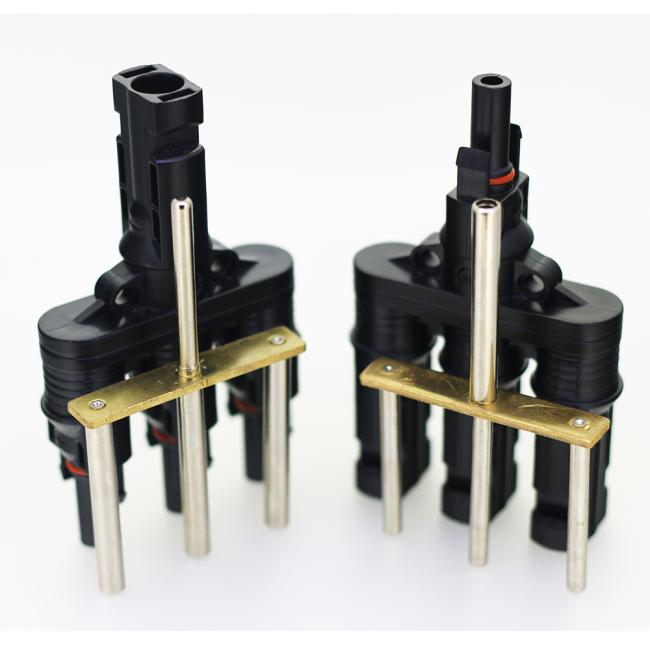

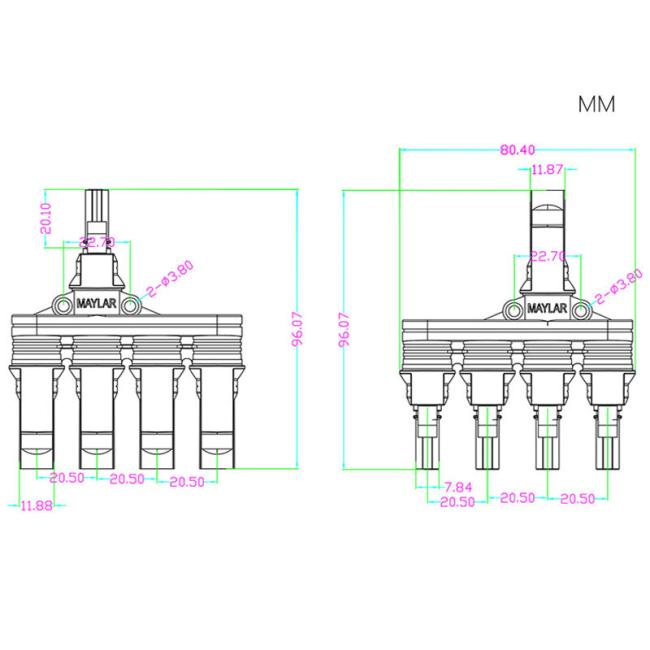

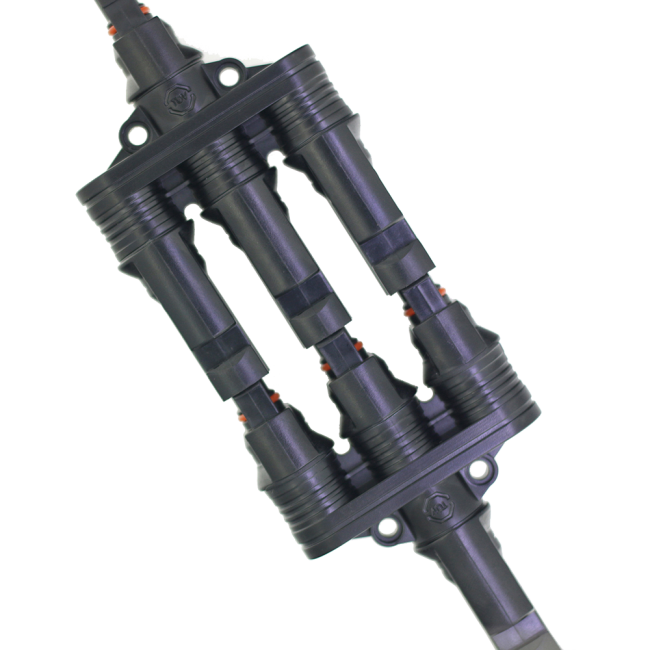

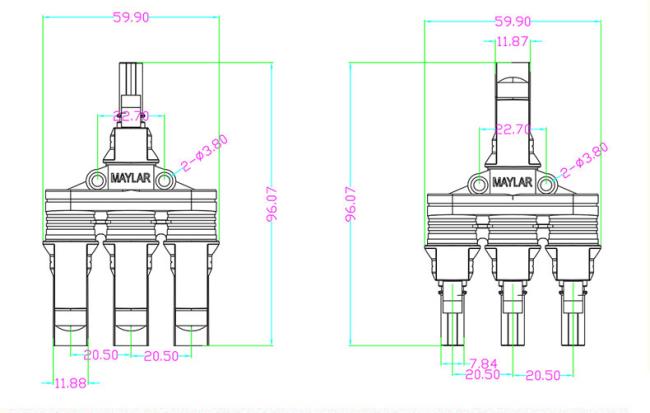

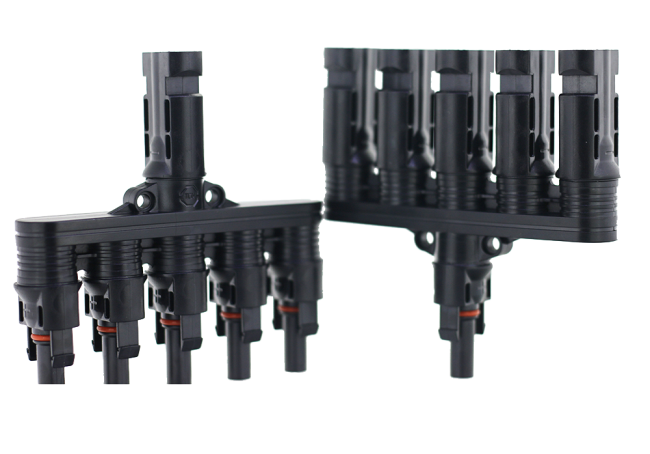

2/3/4/5/6 TO 1 H TYPE CONNECTOR

This is our Solar H branch connector integrating R&D, production and sales. It has IP68 protection level, UL94-VO flame resistance level, strong anti-aging, radiation resistance, high temperature resistance, low temperature resistance, excellent electrical conductivity, easy installation, and can be used for a long time. For outdoor use, it also has TUV, CE, RoHS, REACH, UKCA certification.

1. High quality PPO Material 2. T2 Copper Conductor 3. High-Strength Waterproof Ring 4. Stable Self-Locking Structure 5. Protection Class IP68 6. Strong Adaptability To The Environment

High Quality PPO Material

High-quality materials, high temperature resistance, low temperature resistance, high temperature resistance, high strength, impact resistance, flame retardant.

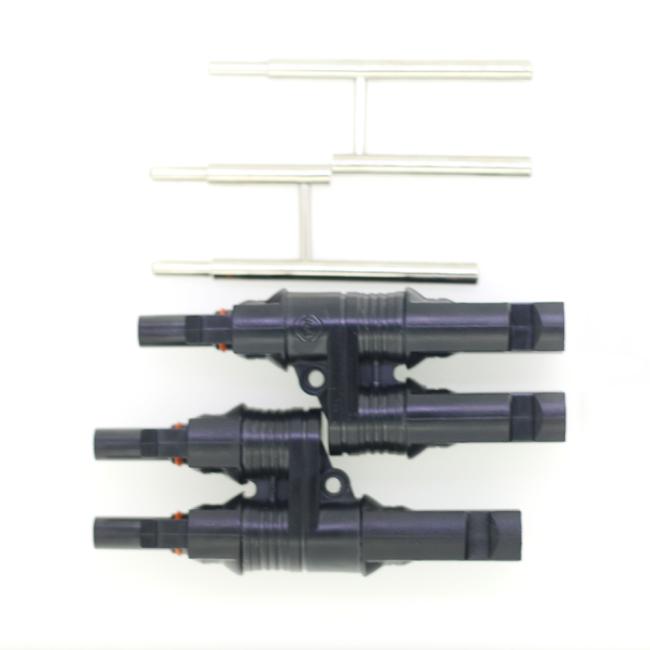

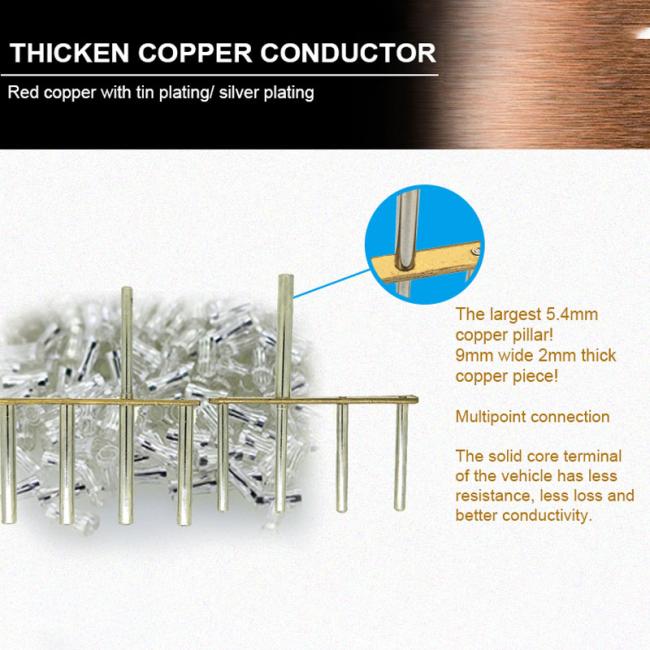

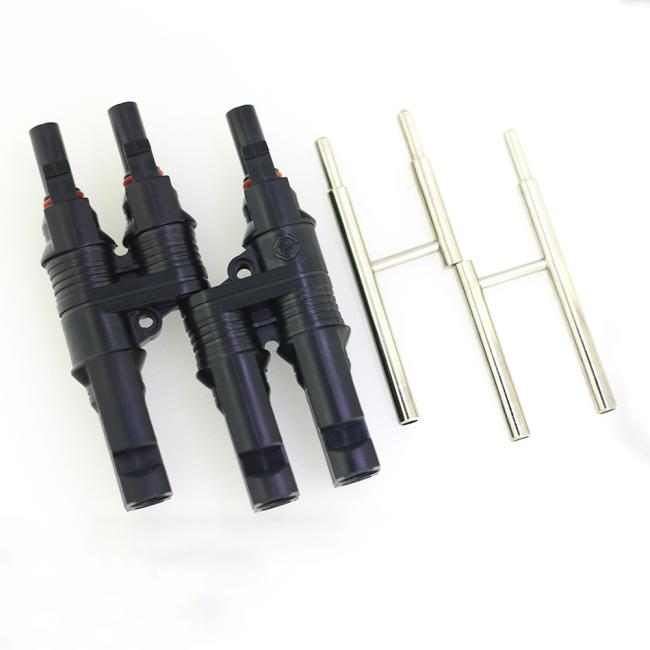

T2 Copper Conductor

Open-type inner core (O-shaped inner core is optional), tinned/silver-plated copper, wear-resistant, corrosion-resistant, prevent oxidation, low resistance and strong conductivity.

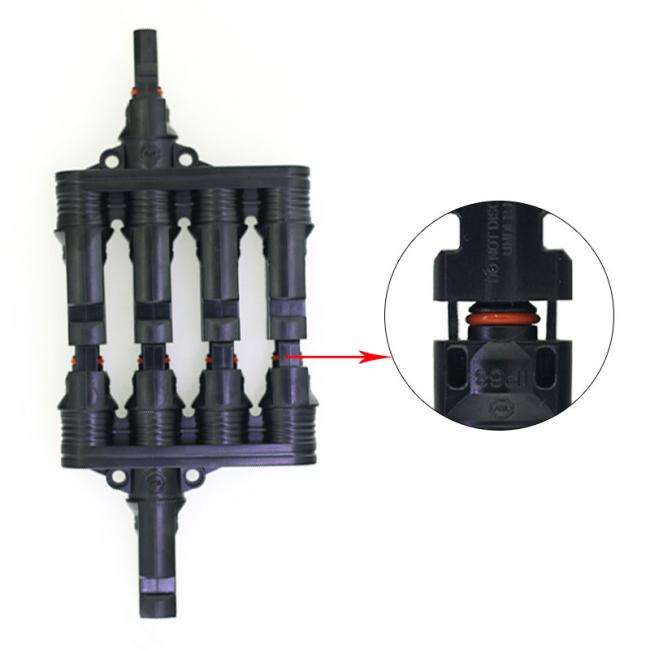

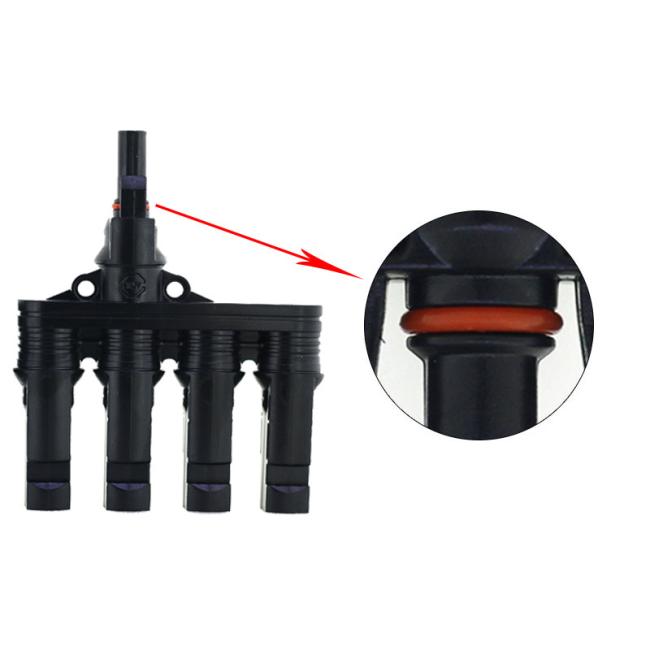

High Strength Waterproof Ring

The product adopts high-strength waterproof ring, insulating silicone, waterproof and dustproof, and the protection level is IP68.

Stable Self-locking Structure

The connection is connected by compression, and the male and female heads have a self-locking structure, which can be opened and closed freely.

Protection Class IP68

The water depth is 1 meter, lasts for 1 hour, works normally (TUV laboratory test).

Adapt To The Environment

-40℃~+90℃ can be used, suitable for most working environments.

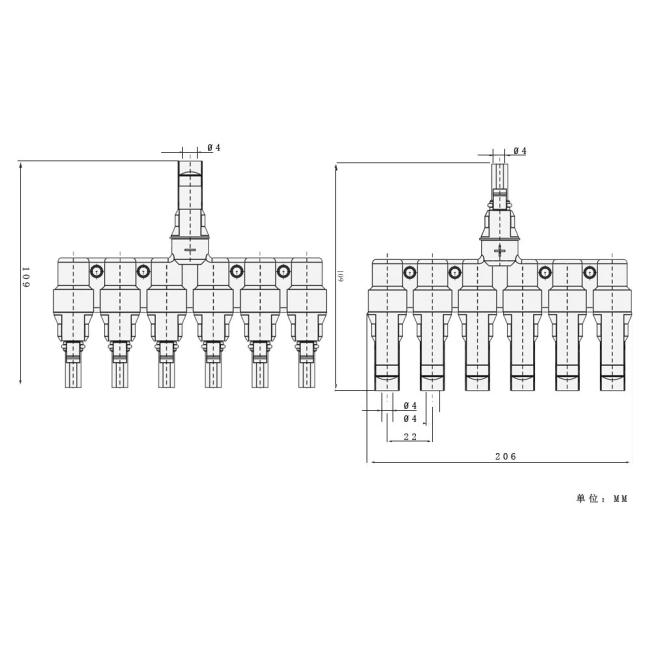

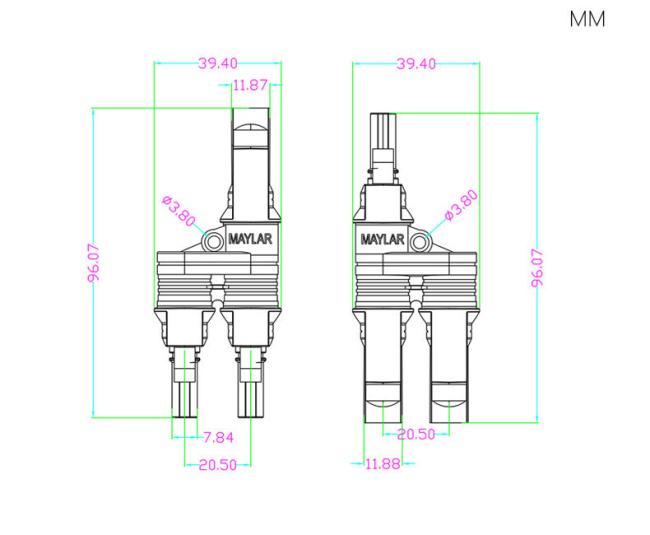

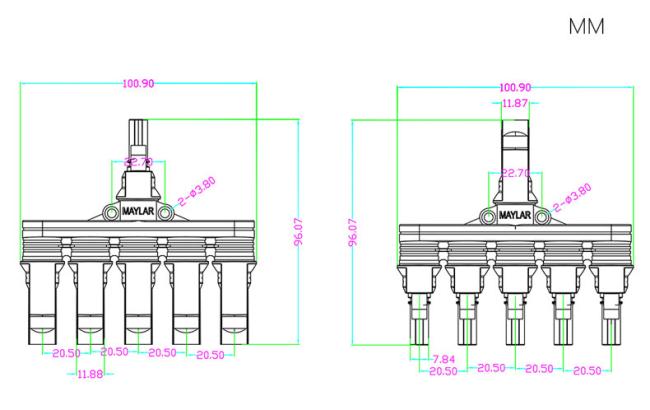

Model Number	MCH201/301/401/501/601
Voltage	DC 1000V
Rated current	50A
Insulation material	PP0
Contact material	copper tin-plated
Waterproof	IP68
Ambient Temperature	-40℃~+95℃
Product Temperature	-40℃~+135℃
Contact resistance	≤0.35mΩ
Incineration level	UL94-VO

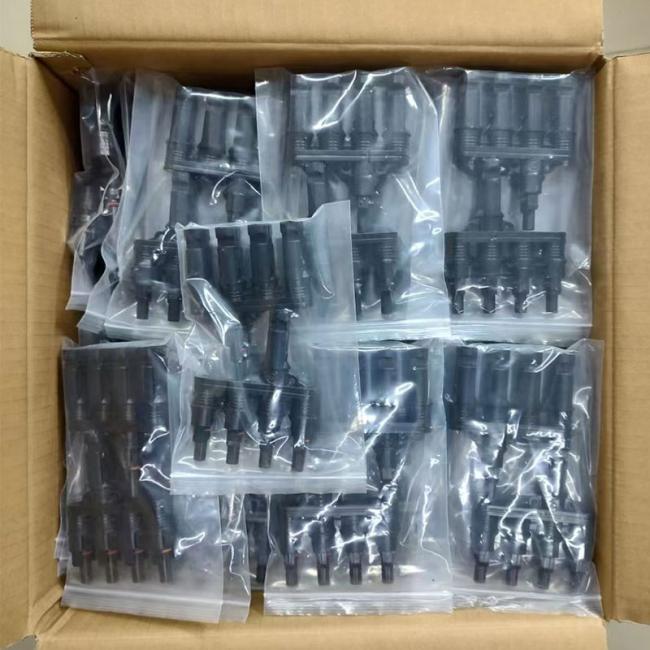

Package Content

MCH201

125 sets per carton

Box weight: 11.5KG

Box size: 35*35*18CM

MCH301

100 sets per carton

Box weight: 13KG

Box size: 35*35*22CM

MCH401

84 sets per carton

Box weight: 14KG

Box size: 35*35*22CM

MCH501

66 sets per box

Box weight: 13KG

 Box size: 35*35*22CM

MCH601

48 sets per carton

Box weight: 13KG

Box size: 35*35*22CM

OUR CUSTOMERS

FAQ

‌1. Q: Are you a factory or a trading company? ‌
A: We are a connector manufacturer with 19 years of experience. We also hold ISO9001, CE, UL and other global certifications and support on-site factory inspections.

‌2. Q: What is the minimum order quantity (MOQ)? ‌
A: The MOQ of standard products is 500 pieces. Customized products need to be evaluated based on the process. Some products support 100 trial orders.

‌3. Q: Can free samples be provided? ‌
A: 1-2 free samples can be provided, but the customer needs to bear the international shipping costs; when there are many sample categories, the sample fee can be fully refunded after placing an order.

‌4. Q: What are the payment methods? ‌
A: Support T/T (30% advance payment + 70% see the copy of the bill of lading), LC, Paypal (small orders), specific details can be negotiated.

‌5. Q: How long is the delivery cycle? ‌
Answer: 15-20 days for conventional products, 25-30 days for customized products (including sample confirmation time), and an additional 10% fee is required for expedited orders.

‌6. Q: What should I do if there are quality problems? ‌
Answer: We provide a 12-month warranty. You can apply for return or reissue with the test report within 7 days after receiving the goods. Please consult the engineer for specific questions
