XT90S PCB Panel-Mount Connector — 2+2+2P XT Connector / Aviation-Style Plug (Male/Female) for Brushless Motors
GTLCON Group XT90S PCB panel mount connector model aircraft plug male and female connector suitable for brushless motor drone lithium battery model aircraft connector
Product advantages
| ☑ Compact structure, high space utilization |
| ☑ Adopt optimized structure, enhance heat dissipation |
| ☑ Easy to install and disassemble |
| ☑ Low resistance, high conductivity, reduce energy loss |
| ☑ Insert a variety of auditory and visual feedback |
| ☑ Adapt to vibration, temperature changes and humid environments |
XT90S RC Drone Model Aircraft Power Supply Battery Connector Adapter, 2+4 Plugs with Signal Pin Shielding, Male and Female Connectors
- For RC Drone Model Power Connection
Connector Introduction
- Contact Resistance: Main Copper Plate 0.4 ohms, Signal Pin 2 ohms
- Rated Current: Main Copper Plate 30A, Signal Pin 5A
- Rated Voltage: DC 500V
- Instantaneous Current: 60A
- Flame Rating: UL94VO
- Recommended Cycles: 1000 Times
- Operating Temperature: -20°C to 120°C
- XT90S Material:
The plastic components are PA66 V0 flame retardant, and the copper components are gold-plated copper. These authentic materials offer excellent corrosion resistance and low electrical resistance, enabling the XT90S high-current hybrid connector to operate more efficiently.
- XT90S Usage:
The XT90S is a practical lithium-ion battery integrated plug.
Applications of the xt90S:
It can be used in lithium-ion batteries, controllers, motors, battery protection panels, solar street lights, landscape lights, electric vehicles, energy storage devices, charging stations, and other applications requiring high current connections.

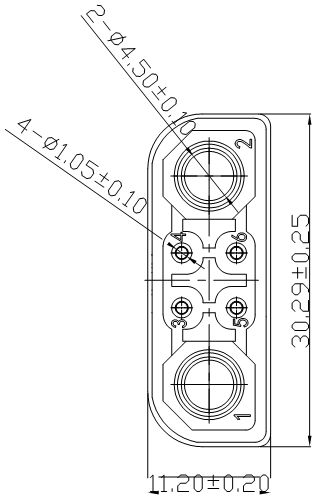

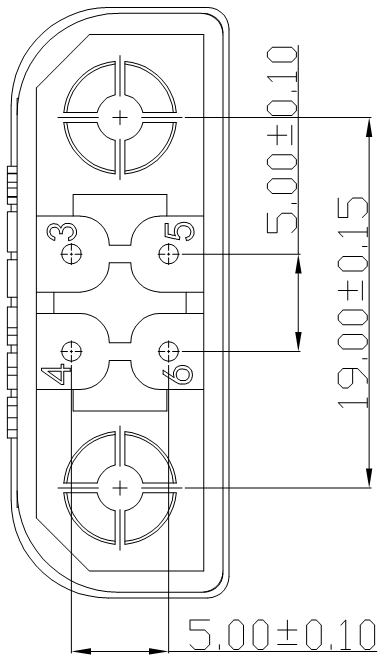

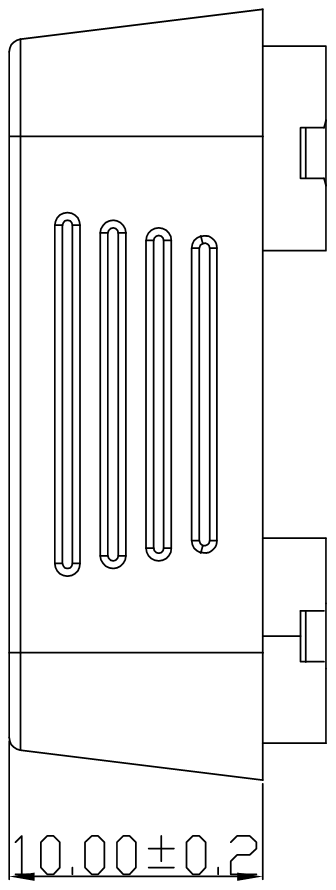

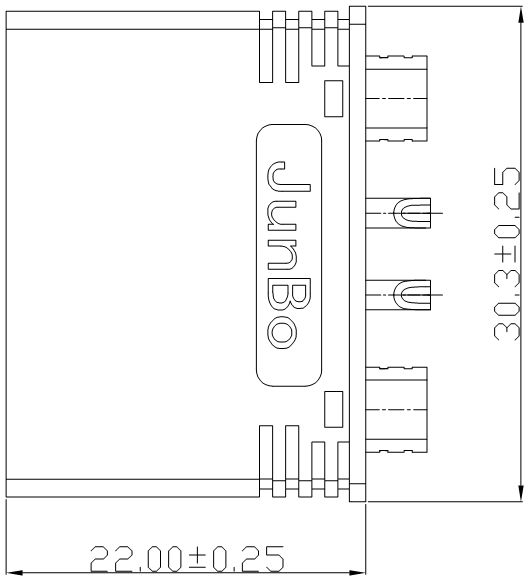

What is the size?
Male
Female
