8mm Battery Connector Anti Spark QS 10 QS10 QS10S QS10-S Male Female Plug QS8 QS9 OSE

GTLCON Anti Spark QS 10 QS10 QS10S QS10-S Male Female Plug QS8 QS9 OSE Anti Spark 8mm 10mm Battery Connector

Product advantages

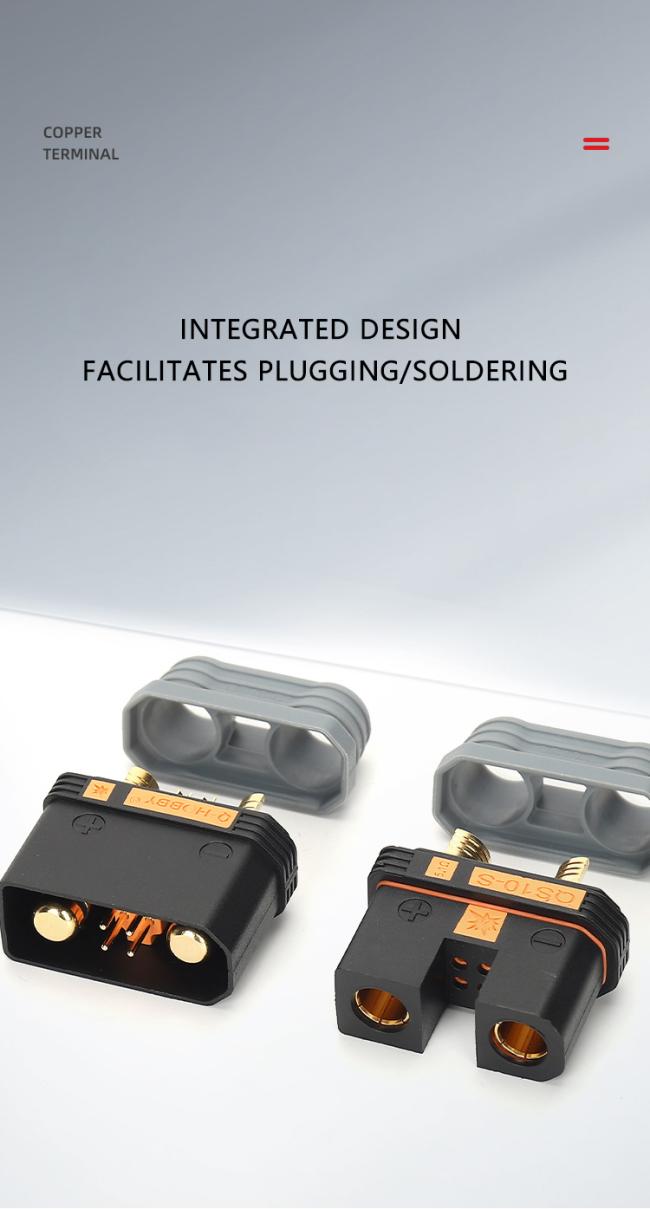

QS10 high current plug
Technical parameters:
QS10-S spark plug is used for power charging plugs for remote control aircraft, car mobile power supplies, large aircraft, etc.

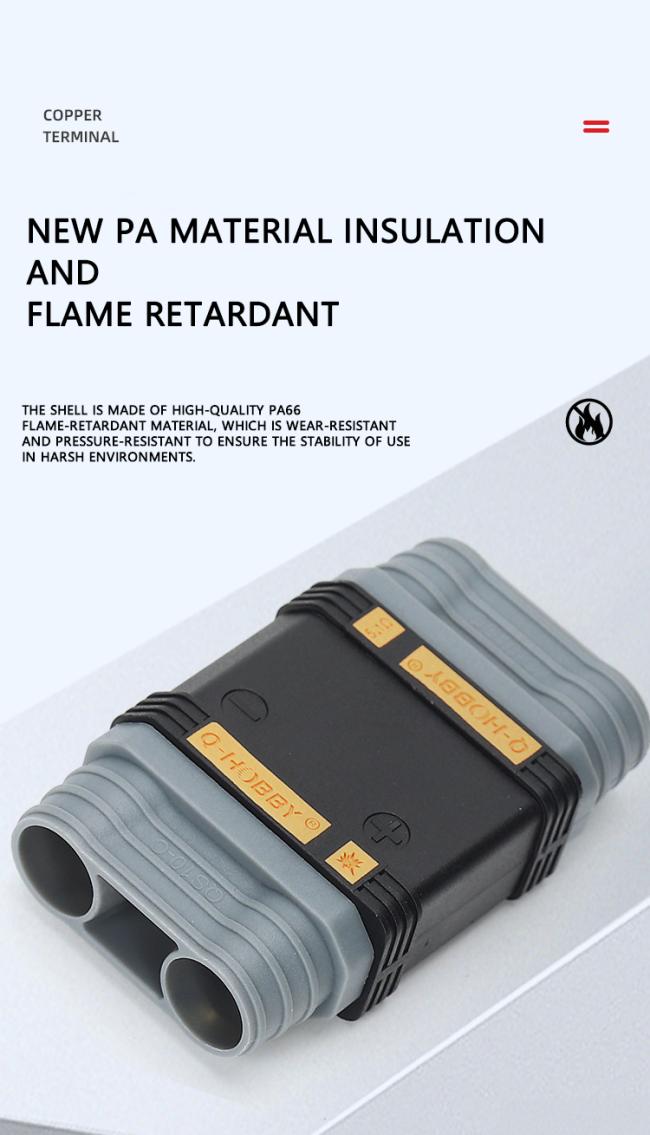

Plastic material: PA66
Flame retardant grade: UL94VO
Working temperature: -30°C---150°C
Contact resistance: 0.51mQ
Product weight (4 pieces): 105g
Maximum wiring: 4AWG
Rated voltage: DC 750V
Rated current: 180A
Instantaneous current: 240A
Number of uses: 1000 times
Welding method: Use a 150W 600-degree soldering iron, tinning for 8-10 seconds

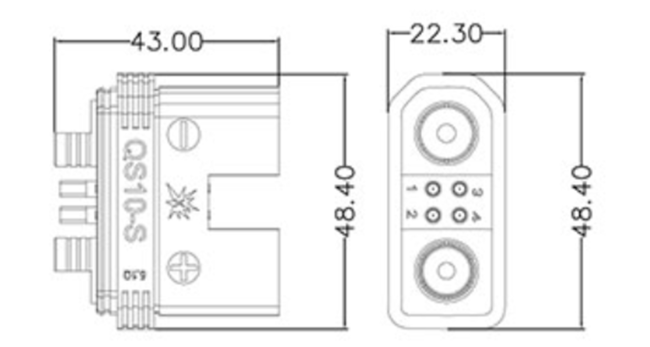

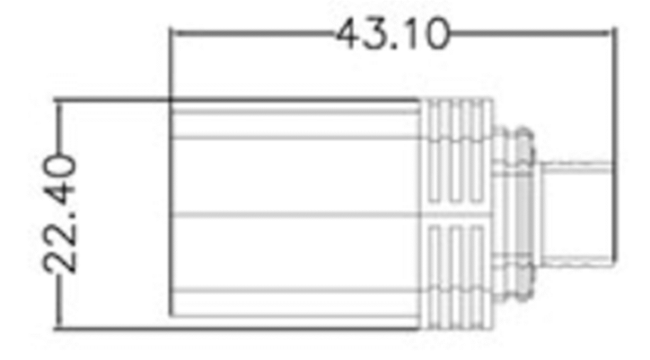

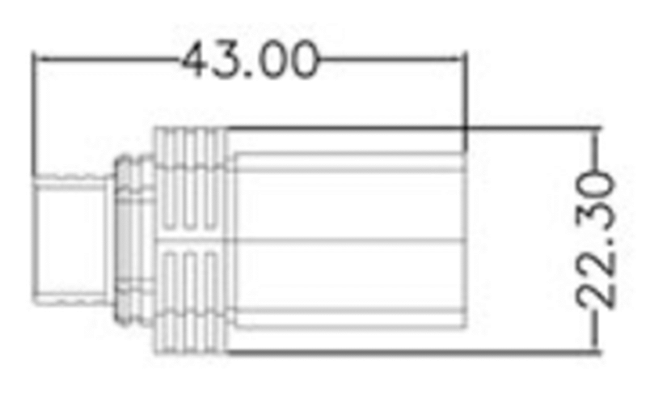

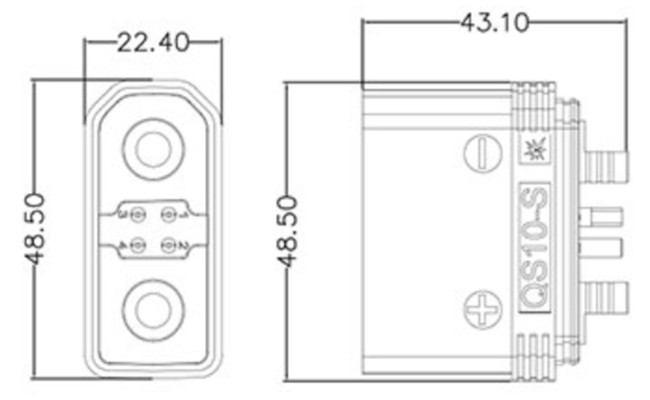

Dimensional drawings (if the image is too small, please refresh the page again)

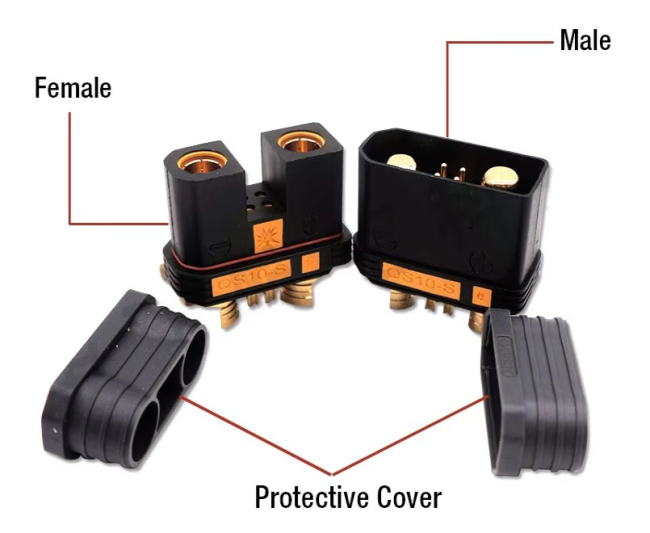

Male Plug

Mother Seat
