Quick Lock EBIKE Connector M25 2+1+5 Waterproof Plug New Energy Lithium Ion Battery Connector
GTLCON Group Quick-Lock M25 2+1+5 Waterproof Plug New Energy Lithium-Ion Battery Energy Storage Connector Electric Vehicle Charging And Discharging Terminal
The design of this connector has multiple advantages
| 1. High-quality conductor material, low resistance, high conductivity, and reduced energy loss. |
| 2. Adopting optimized structure, enhanced heat dissipation, and service life increased by 1.5 times compared with industry products. |
| 3. Adapt to vibration, temperature changes and humid environments. |
2 Power 1 Ground IP67 Waterproof Connector 5 Data Combination for Lithium Ion System
2 Power 1 Ground 5 Data Combination Connector Description
- Push-in locking waterproof connector IP67 is the main feature of Jnicon M19 model. Thanks to its advanced structure, it only takes seconds to connect the male and female connectors. It is widely used in many application fields. If your application is similar to the following, this 2 Power 1 Ground 5 Data Combination connector will be a good choice.
Application of waterproof quick connector
• Lithium Ion System
• Communication Application
• Product Coding Machine
• Stock Product Coding
• Inkjet System
• Solar System
• Industrial Inkjet Equipment
• Power Equipment
• Laboratory Forensic and Pathology Equipment
• Communication Equipment
• Heavy Machinery
Main Features
• Sealed, dust and liquid proof (IP67)
• Anti-vibration, shock and tensile
• Socket with cover
• Cable assembly bracket
• Customized cable size and length
Features:
• 2-4PIN power supply, 5-9PIN signal optional.
• IP67/68 rating
• Rated voltage: 300V
• Cable range: 3~11mm
• UL, TUV, CB, CCC, CE, RoHS certification

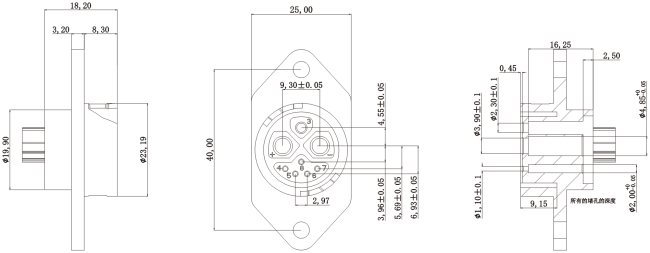

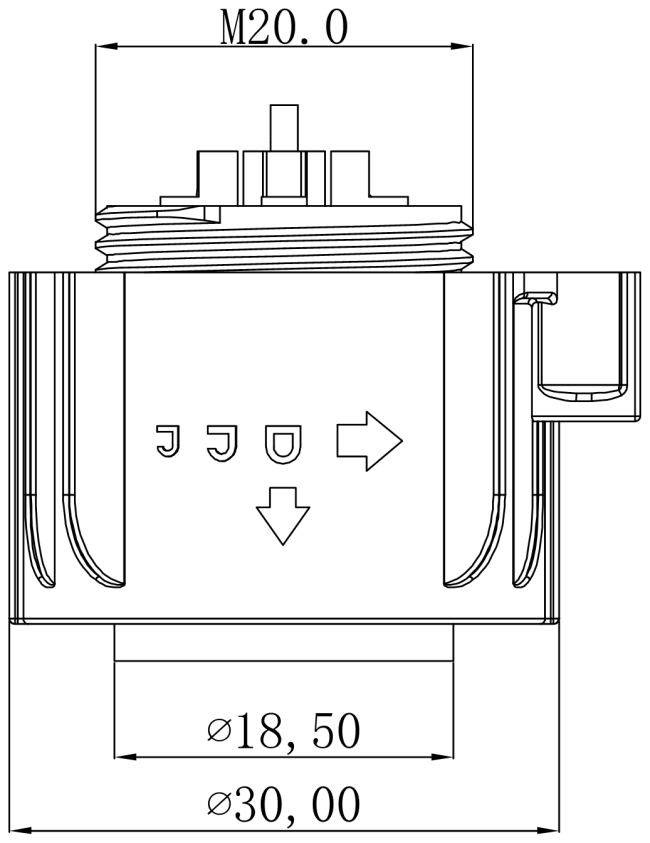

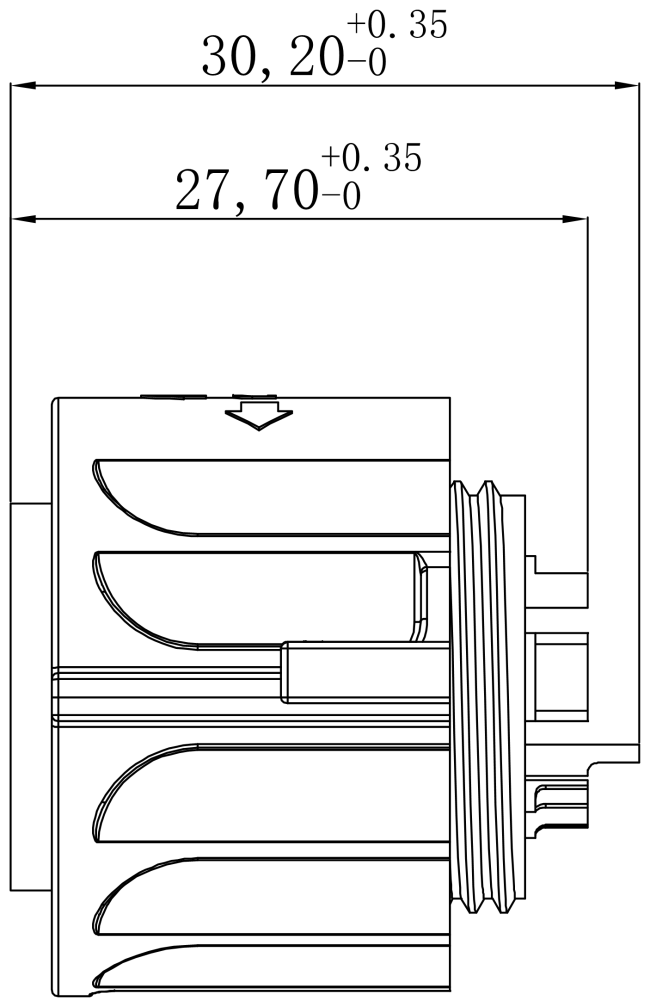

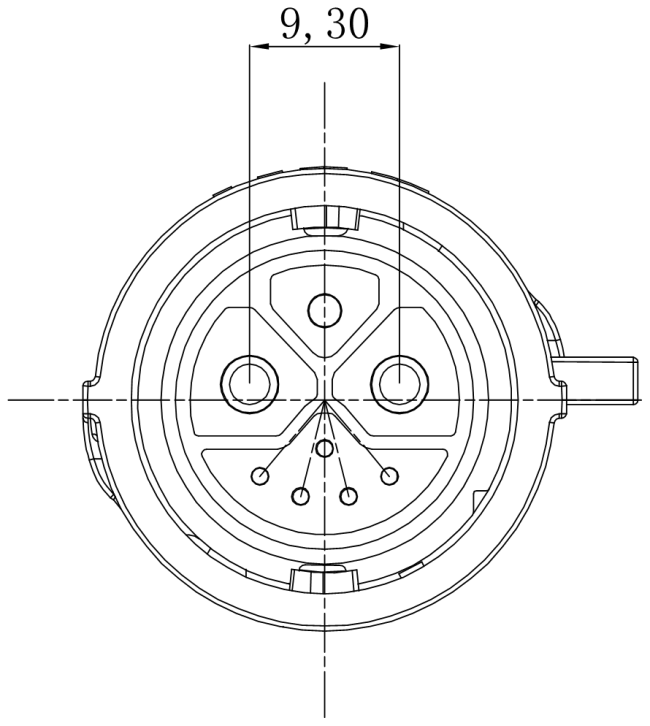

Dimensional drawings (if the image is too small, please refresh the page again)
Our customers
FAQ
1. Q: Are you a factory or a trading company?
A: We are a connector manufacturer with 19 years of experience. We also hold ISO9001, CE, UL and other global certifications and support on-site factory inspections.
2. Q: What is the minimum order quantity (MOQ)?
A: The MOQ of standard products is 500 pieces. Customized products need to be evaluated based on the process. Some products support 100 trial orders.
3. Q: Can free samples be provided?
A: 1-2 free samples can be provided, but the customer needs to bear the international shipping costs; when there are many sample categories, the sample fee can be fully refunded after placing an order.
4. Q: What are the payment methods?
A: Support T/T (30% advance payment + 70% see the copy of the bill of lading), LC, Paypal (small orders), specific details can be negotiated.
5. Q: How long is the delivery cycle?
Answer: 15-20 days for conventional products, 25-30 days for customized products (including sample confirmation time), and an additional 10% fee is required for expedited orders.
6. Q: What should I do if there are quality problems?
Answer: We provide a 12-month warranty. You can apply for return or reissue with the test report within 7 days after receiving the goods. Please consult the engineer for specific questions
