Full Servo Baby Diaper Making Machine Automatic Easy Operation 700pcs/min Stable
| Condition | Brand New |
| Finished Product Size | S,M,L,XL(According to customers reqirement) |
| Production Line Size | 25x6x3M(For reference only) |
| Machine Weight | About 70 tons |
| Production Speed | 500-800Pcs/Min |
| Control System | PLC control system(Mitsubishi), HMI Operating on the LED touch screen, Configure HDTV monitor |
| Drive system | Servo Drive (Easy to change size), timing belt and flat belt are import products, and all the key parts are import bearings. |
| Production Efficiency | ≥97% |
| Machine Capacity | 400KW (Excluding glue machine and air compressor) |
| Power Supply | 3 Phase, 380V, 50Hz |
| Safety System | It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer. |
| Machine Type | High Standar Full Servo |
| Product structure | Product structure: upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven , ADL (Acquisitiondistribution layer) non-woven,leak guard hydrophobic non-woven back sheet,Waist band non-woven,color pattern sticker,elastic waist band, discarding sticker. |
| Packaging System | According to customer requirements with palletizer machine (double push double exit) adjustable |
| Warranty | 1 year |
The production line includes:
Pulp crusher system
SAP feeding system
Drum forming system
Lower tissue paper feeding system
SAP paper feeding system
Core wrapping system
Perfume feeding system
Mat cutting system
Hydrophobic non woven feeding system
Hydrophilic non woven feeding system
Flow cannel embossing system
Side sealing system
PE film feeding system
Back release paper feedig & cutting system
Outer cutting system
Edge scrap collecting system
180 degree transfer system
Wing release paper feeding & cutting system
90 degree transfer system
Packing film feeding system
Product seal cutting system
Easy tape feeding & cutting unit
Out put rejection system

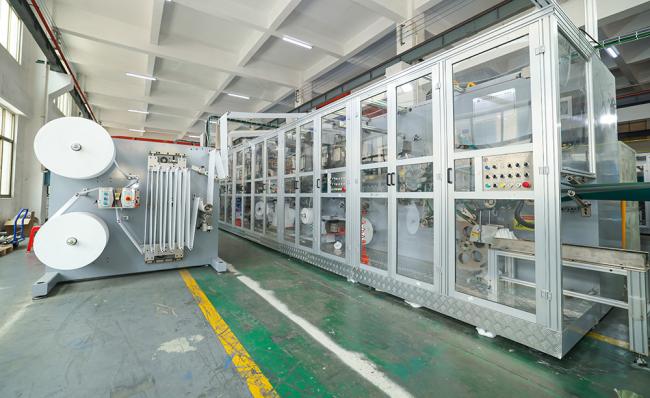

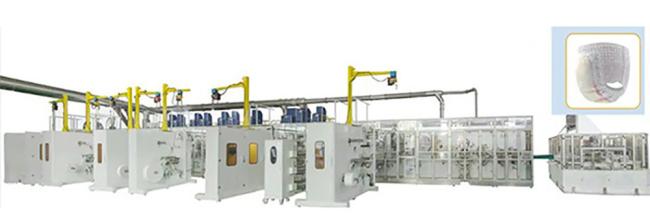

Machine Panoramic Image
High speed, low consumption and cost reduction significantly enhance investment returns
The stable speed is 400-600 pieces per minute, and the maximum can reach 700-800 pieces per minute. The production capacity is increased by 30% - 50% compared with the traditional line. Zero-speed splicing and constant tension control keep the material loss rate within 1% to 3%.
The servo system can adjust the speed as needed, with energy consumption reduced by 15% to 20% compared to asynchronous motors. Only 3 to 4 workers are needed for a single shift, and the overall operating cost drops by 20% to 25%.
Value to international buyers: High production capacity accelerates order delivery, low loss and low energy consumption compress costs, the payback period is shortened to 12-18 months, and price competitiveness and market share are enhanced.
Intelligent quality inspection and traceability, easily handling global supervision and factory audits
Equipped with machine vision and an automatic rejection system, it can detect defects such as dimensional deviations, stains, and glue leakage, with a defective product rate of ≤0.5% - 3%. Supports batch coding traceability, real-time recording and export of production data, and complies with ISO 9001 and EU CE compliance requirements.
It is compatible with the full-process traceability and hygiene standards for baby products in the European and American markets, facilitating customer factory audits and market supervision.
Value to international buyers: Quality is fully controllable throughout the process, compliance risks are reduced, brand credibility is enhanced, factory audits by end customers and supermarkets are smoothly passed, and entry into the high-end supply chain is achieved.
