Customization PDLC Self Adhesive Film Ultra Thin For Residential And Commercial
Product Overview
The Smart Film (PDLC Film/Polymer Dispersed Liquid Crystal Dimming Film) Series from Westglass is a high-tech optical film leveraging the electric field response of liquid crystal molecules. By hermetically encapsulating liquid crystal polymer between two transparent conductive films, it forms a unique laminated structure for intelligent electric control of light transmittance:
l Unpowered State:
Liquid crystal molecules arrange randomly, creating a light-scattering layer with transmittance below 5%. This uniform milky frosted effect ensures robust privacy protection.
l Powered State:
Driven by a safe voltage, molecules align orderly within 0.2 seconds, achieving up to 91% transmittance to restore natural glass clarity.
Why Choose Westglass?
As a PDLC specialist with 8 years of industry experience, Westglass offers three standardized product solutions:
1. Custom Electrode Sheets:
Tailored to your window dimensions for precise fit.
2. Special Customization:
Laser-cut for irregular/curved/hollow glass shapes, adapting to unique architectural designs.
3. Standard Rolls:
Available in 15m/30m/60m/100m lengths (1.52m width), ideal for large-scale projects.
4. Rigorous Quality Control:
Three-layer inspection system: 100% roll material testing, oven durability checks, and sheet power-aging trials.
5. Rapid Global Delivery:
l Standard rolls: Shipped within 24 hours.
l Custom orders: Laser-cut (supports irregular/curved/hollow designs) and dispatched within 72 hours.
Core Features
1. Intelligent Dimming System
l Flexible Control: Switch freely via physical switches, wireless remotes, or smart central systems.
l Transmittance Gradient: Four preset options (83%/86%/89%/91% in transparent state; <5% in frosted state).
l Millisecond Response: State switching completes in ≤0.2 seconds.
2. Energy Efficiency & Environmental Safety
l 99% UV Blocking: Reduces heat radiation and furniture aging, meeting international standards.
l Infrared Insulation: Cuts air conditioning energy use by 30%.
l RoHS Certified: Compliant with global environmental safety regulations.
3. Ultra-Thin Flexible Design
l Curved Glass Compatibility: Seamless adhesion with flatness error <0.02mm/m².
l Extreme Environment Resistance: Operates at -30°C to +80°C and 20%-95% humidity.
4. Enhanced Safety & Explosion Resistance
l 3x higher impact resistance than standard glass.
l Fragment adhesion ≥98%, exceeding national safety glass standards.
Typical Applications
1. Commercial & Office
l Smart Conference Room Partitions: One-touch switching between private meeting and open space modes.
l Projection-Integrated Curtain Walls: Frosted state transforms into a HD projection screen with 40% sharper resolution.
2. Residential
l Bathroom Privacy Windows: Moisture-resistant design operates stably in >90% humidity.
l Living Room Dimming Walls: Syncs with smart home systems to auto-adjust indoor lighting.
3. Transportation
l Automotive Panoramic Sunroofs: UV protection + zoned dimming with multi-level transmittance.
l Airplane Window Upgrades: Automatic frosting during takeoff/landing to reduce glare discomfort.
4. Innovative Displays
l Transparent Advertising Windows: Showcases products clearly by day, plays HD videos frosted by night.
l AR Interactive Screens (with optional touch accessories): Capacitive touch support with ≤8ms response.
Usage Notes
1. Privacy Safety:
Maintains frosted state when unpowered to ensure privacy during outages.
2. Quality Assurance:
All products pass 72-hour continuous aging tests and come with a 2-year warranty.
Installation Guidelines
1. Professional Installation:
Must be handled by certified technicians; glass flatness checked via laser scanner (error ≤1.5mm/m²).
2. Environmental Requirements:
15–35°C temperature, 40%–70% humidity.
Prohibited Scenarios
1. Strong acid/alkali environments (pH <3 or >11).
2. High-frequency vibration areas (amplitude >2mm or frequency >50Hz).
3. Non-planar glass substrates (curvature radius <150mm).
Ready to elevate your space with smart, secure, and energy-efficient glass solutions? Contact us today for custom quotes, samples, or technical support.
Technical Parameters
|
WEST Smart Film Series Same Technical Specifications
|
|||||
|
Item No. |
Mode |
Unit |
Tolerance |
Specification |
|
|
Optical Performance |
Viewing Angle |
On |
° |
/ |
＞140 |
|
Electrical performance
|
Operate Voltage |
On |
AC/V |
/ |
48～65(50/60HZ) |
|
Response Time |
On→Off |
ms |
/ |
≤200 |
|
|
Off→On |
ms |
/ |
≤10 |
||
|
Power Consumption |
On |
W/m2 |
/ |
＜5.0 |
|
|
Heat shrinkage |
TD |
/ |
% |
/ |
≤0.1 |
|
MD |
/ |
% |
/ |
≤0.4 |
|
|
UV Rejection |
On/Off |
% |
/ |
≥99 |
|
|
Color Difference △E(reflection) |
Off |
CIELAB |
/ |
≤2.5 |
|
|
Working Temperature |
/ |
℃ |
/ |
-20～75℃ |
|
|
Storage Temperature |
/ |
℃ |
/ |
-20～70℃ |
|
|
Storage Humidity |
/ |
% |
/ |
20～60 |
|
|
Lifespan |
On |
h |
/ |
＞80000 |
|
|
VLT 91% White Adhesive Smart Film Technical Specifications
|
|||||
|
Item No. |
Mode |
Unit |
Tolerance |
Specification |
|
|
Optical performance
|
VLT |
On |
% |
±1 |
90 |
|
Off |
% |
/ |
＞65 |
||
|
Haze |
On |
% |
±0.5 |
2.5 |
|
|
Off |
% |
/ |
＞98 |
||
|
Thickness |
/ |
μm |
±5 |
395 |
|
|
VLT 89% Adhesive Smart Film Technical Specifications
|
|||||
|
Item |
Mode |
Unit |
Tolerance |
Specification |
|
|
Optical performance |
VLT |
On |
% |
/ |
87 |
|
Off |
% |
/ |
72 |
||
|
Haze |
On |
% |
/ |
≤4.0 |
|
|
Off |
% |
/ |
＞98 |
||
|
Thickness |
/ |
μm |
±10 |
479 |
|
|
VLT 89% Non-Adhesive Smart Film Technical Specifications
|
|||||
|
Item |
Mode |
Unit |
Tolerance |
Value |
|
|
Optical Performance
|
VLT |
On |
% |
/ |
88 |
|
Off |
% |
/ |
72 |
||
|
Haze |
On |
% |
/ |
≤3 |
|
|
Off |
% |
/ |
＞98 |
||
|
Thickness |
/ |
μm |
±3 |
394 |
|
|
Smart PNLC Film Technical Specifications
|
|||||
|
Item |
Mode |
Unit |
Tolerance |
Specification |
|
|
Optical Performance |
VLT |
Off |
% |
/ |
88 |
|
ON |
% |
/ |
9 |
||
|
Parallel Light Transmission |
Off |
% |
/ |
80 |
|
|
On |
% |
/ |
7 |
||
|
Haze |
Off |
% |
/ |
10 |
|
|
On |
% |
/ |
92 |
||
|
Electrical Performance |
Response Time |
On/Off |
S |
/ |
0.5 |
|
Weather Resistance Test |
/ |
Hours |
/ |
2000 |
|
|
Thickness |
/ |
μm |
±10 |
260 |
|
|
Silicon Peeling Force |
/ |
g |
/ |
10 |
|
|
VLT 83% Non-Adhesive Smart Film Technical Specifications
|
|||||
|
Item No. |
Mode |
Unit |
Tolerance |
Specification |
|
|
Optical Performance |
VLT |
On |
% |
±1 |
83 |
|
Off |
% |
/ |
＞55 |
||
|
Haze |
On |
% |
±0.5 |
4.1 |
|
|
Off |
% |
/ |
＞96 |
||
|
Electrical Performance |
Response Time |
On→Off |
ms |
/ |
≤100 |
|
Off→On |
ms |
/ |
≤10 |
||
|
Thickness |
/ |
μm |
±5 |
395 |
|
|
VLT 83% White Adhesive Smart Film Technical Specifications
|
|||||
|
Item No. |
Mode |
Unit |
Tolerance |
Specification |
|
|
Optical Performance |
VLT |
On |
% |
±1 |
83 |
|
Off |
% |
/ |
＞55 |
||
|
Haze |
On |
% |
±0.5 |
4.3 |
|
|
Off |
% |
/ |
＞96 |
||
|
Electrical performance
|
Operate Voltage |
On |
AC/V |
/ |
48～65(50/60HZ) |
|
Response Time |
On→Off |
ms |
/ |
≤100 |
|
|
Off→On |
ms |
/ |
≤10 |
||
|
Shrinkage |
TD |
/ |
% |
/ |
≤0.2 |
|
MD |
/ |
% |
/ |
≤0.9 |
|
|
Thickness |
/ |
μm |
±5 |
560 |
|
|
Scratch Resistance |
/ |
H |
/ |
3.0 |
|
|
Silicone Layer Peel Strength |
/ |
g |
±2 |
10 |
|

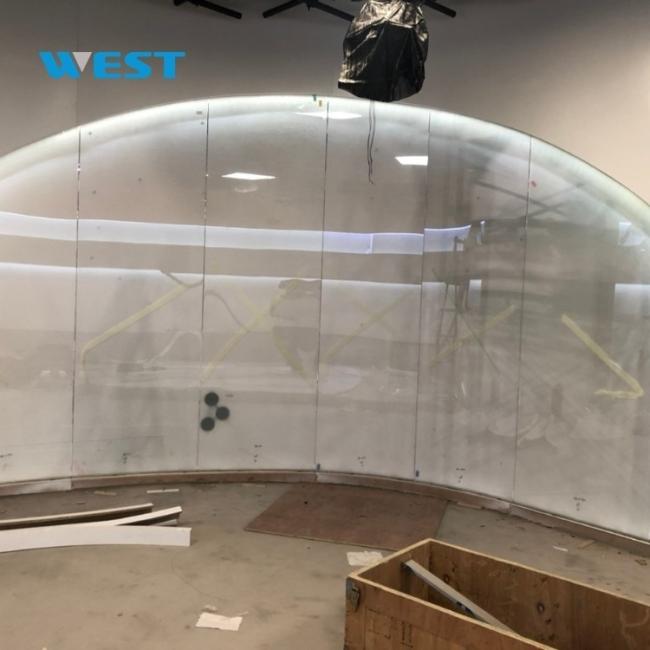

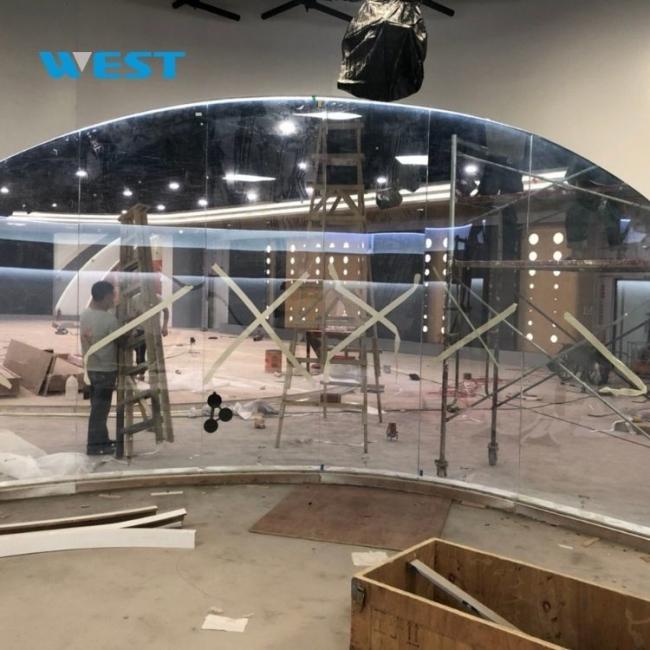

Case Studies

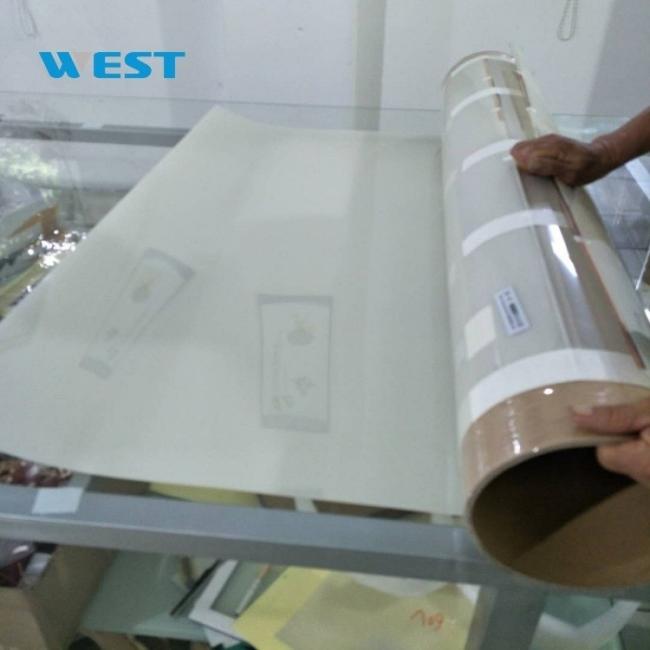

Product Packaging
Accepted Delivery Terms
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES, and more.
About Westglass:
Westglass specializes in manufacturing and exporting automotive paint protection film (PPF), smart films, intelligent glass, photochromic films, automotive window films, and related products. Our solutions are exported to 50+ countries renowned for superior quality, competitive pricing, and exceptional after-sales service.
Let us be your trusted partner in smart glazing and protective film solutions!
