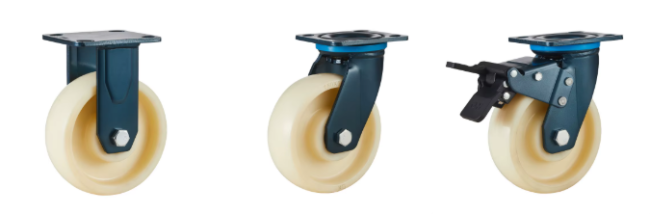

High Precison Double Ball Bearings 4 / 5 / 6 / 8 Inch Heavy Duty Machine Nylon Swivel Caster Wheels
These industrial swivel caster wheels are made with high-quality Machine nylon wheel material (MC nylon), providing excellent wear resistance, low rolling resistance, and high load-bearing capacity. Each wheel is equipped with double ball bearings to ensure smooth rotation and reduced effort when moving heavy loads. Available in multiple sizes to meet different industrial requirements.
Designed to support heavy loads while allowing easy maneuverability, these machine nylon (MC nylon, cast nylon) swivel casters enable smooth movement of trolleys, carts, tool cabinets, and industrial equipment. The 360° swivel design allows flexible direction changes, improving transport efficiency and reducing operator effort in busy industrial environments.
These nylon swivel caster wheels are suitable for a wide range of industrial and commercial applications, including logistics carts, warehouse trolleys, workbenches, tool carts, equipment platforms, automobile car manufacturers, and material handling systems. Their durable machine nylon (MC nylon, cast nylon) wheels make them ideal for heavy industrial use where reliable mobility and resistance to abrasion are required.
-
High Load Capacity — Designed to support heavy industrial loads with sizes ranging from 4″ to 8″.
-
Durable MC Nylon Wheel Material — Provides excellent resistance to wear and chemicals, and ideal for smooth and hard floor surfaces, super long working life and wear resistance, also fit for low temperature working environments.
-
Smooth Rolling Performance — Double ball bearings reduce rolling resistance and ensure easy movement.
-
Top Plate Mounting — This mounting size and mounting dimenstion are widly used, fit for North America, South America, Asia, and manu other countries and regins. (Some European countries also accept this mounting size).
-
Industrial Grade Construction — Suitable for heavy duty industrial, warehouse, factory, and commercial settings. Sprcial swivel bearing structure makes it swivel very smooth, has high load capacity, and long working life.
| SIZE | Tread Width(mm) | CAPACITY(kgs) | Plate Size(mm) | Load Height(mm) |
|---|---|---|---|---|
| 4 inch | 50 | 350 | 115*100 | 146 |
| 5 inch | 50 | 400 | 115*100 | 164 |
| 6 inch | 50 | 550 | 115*100 | 191 |
| 8 inch | 50 | 600 | 115*100 | 240 |
- Free charge & fast action for samples
- OEM & ODM acceptable
- Short lead time
- LOGO on products are acceptable
- Advanced machinery and equipments
- Stict quality control system
- Package could be adjusted
- Quick and effective reponse by salesmen
