4 / 5 / 6 / 8 Inch Heavy Duty Non Marking Wear Resistant High Elastic Rubber Caster Wheels – Industrial Swivel Mobility Solution
These heavy duty caster wheels are made of virgin material high elastic rubber wheel tread bonded to a strong core and mounted on robust brackets with corrosion‑resistant surface finish. The rubber material provides good wear resistance, non marking, shock absorption, impact resistance, anti aging, quiet rolling, and floor protection, UV protection, making them ideal for industrial transport tasks, and excellent long working life. Precision double ball bearings ensure smooth 360° swivel rotation with low rolling resistance.
Designed to facilitate flexible movement for trolleys, workstations, equipment bases, and mobile platforms, these swivel caster wheels allow easy direction changes and reduced operator effort during push/pull tasks. Optional configurations including fixed, swivel with brake, or total lock increase usability in different industrial settings.
These aluminum rim high elastic rubber caster wheels are ideal for warehouse logistics carts, factory equipment, heavy duty trolleys, industrial workstations, machine cabinets, medical carts, and other commercial applications where reduced noise, vibration control, and floor surface protection are needed. Suitable for use in factories, workshops, logistics centers, hotels, hospitals, and supermarkets.
-
Shock Absorption & Quiet Rolling – high elastic rubber tread reduces vibration and noise for smoother operation in busy environments, it is excellent wear resistance, UV protection and aging resistance make it keep weel working for long time.
- Aluminum wheel core for heavy loading capacity, fast heat releasing, also makes this excellent in the industries.
-
Floor Surface Protection – Non‑marking wheel material protects floors from scratches and marks.
-
Smooth Swivel Movement – 360° swivel design with precision bearings improves maneuverability.
-
Heavy Duty Load Support – Designed for industrial loads, typical capacities range from ~170 kg to ~300 kg depending on size.
-

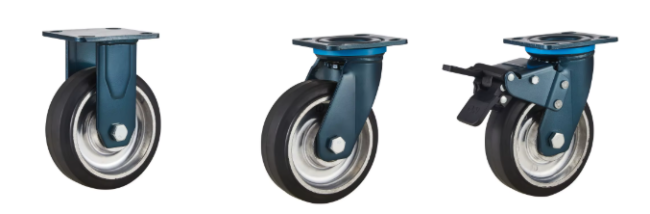

Versatile Configurations – Available in swivel, fixed, and brake types for multiple applications.
|
SIZE
|
Tread Width(mm)
|
CAPACITY(kgs)
|
Plate Size(mm)
|
Load Height(mm)
|
|
4 inch
|
50
|
280
|
115*100
|
146
|
|
5 inch
|
50
|
350
|
115*100
|
164
|
|
6 inch
|
50
|
400
|
115*100
|
191
|
|
8 inch
|
50
|
450
|
115*100
|
240
|
- Free charge & fast action for samples
- OEM & ODM acceptable
- Short lead time
- LOGO on products are acceptable
- Advanced machinery and equipments
- Stict quality control system
- Package could be adjusted
- Quick and effective reponse by salesmen
