3 Inch PVC or PU Caster Wheels for Industrial Furniture & Trolley
This 3 inch caster wheel is made with premium polyurethane (PU) tread bonded to a sturdy hub, delivering excellent wear resistance, smooth rolling, and floor protection — ideal for continuous use on hard surfaces such as concrete, wood, and tile. PU caster wheels balance strength and quiet performance, making them suitable for both industrial and commercial furniture trolleys.
Designed to enhance mobility, these PU caster wheels enable smooth directional changes and reduced pushing effort for furniture, equipment carts, display stands, and service trolleys. The swivel versions allow 360° rotation for maximum flexibility, while fixed types provide straight-line stability. Optional brake models help secure equipment in place when needed.
Ideal for a variety of settings, including industrial furniture trolleys, workshop carts, logistics dollies, hospital equipment, office furniture, and retail display systems. These 3 inch PU caster wheels deliver reliable performance in warehouses, factories, offices, hospitals, and homes where smooth, quiet mobility and floor protection are required.
- Wear-Resistant PU Material – Polyurethane offers long service life, strong rebound, and resistance to abrasion.
- Quiet & Smooth Rolling – Ideal for environments where noise and floor marking must be minimized.
- Flexible Movement Options – Available in swivel, fixed, and brake versions to suit different uses.
- Versatile Mounting – Compatible with top plate, stem, or threaded installations depending on trolley design.
- Reliable Load Support – Well-suited for light to medium duty loads typical of furniture, carts and mobile equipment.
| Desc. | Wheel diameter (mm) |
Wheel width (mm) |
Overall height (mm) |

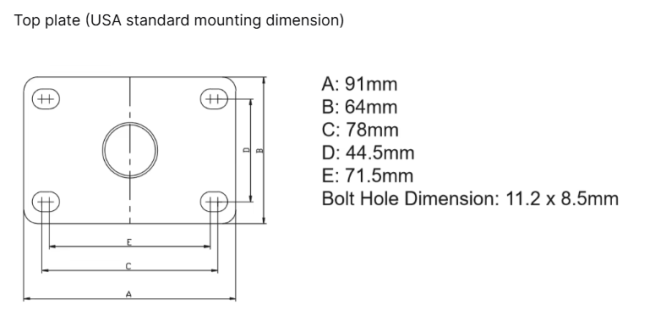

Top plate size (mm) |
Hole spacing (mm) |
Load capacity (kg/pc) |
| Light medium duty caster, PVC wheel with double ball bearing, rigid. | 75 | 32 | 106.5 | 92*65 | 74.5*45 | 70 |
| 100 | 32 | 130.5 | 92*65 | 74.5*45 | 80 | |
| 125 | 32 | 155 | 92*65 | 74.5*45 | 90 | |
| Light medium duty caster, PVC wheel with double ball bearing, swivel. | 75 | 32 | 106.5 | 92*65 | 74.5*45 | 70 |
| 100 | 32 | 130.5 | 92*65 | 74.5*45 | 80 | |
| 125 | 32 | 155 | 92*65 | 74.5*45 | 90 | |
| Light medium duty caster, PVC wheel with double ball bearing, swivel with total brake. | 75 | 32 | 106.5 | 92*65 | 74.5*45 | 70 |
| 100 | 32 | 130.5 | 92*65 | 74.5*45 | 80 | |
| 125 | 32 | 155 | 92*65 | 74.5*45 | 90 |
- Free charge & fast action for samples
- OEM & ODM acceptable
- Short lead time
- LOGO on products are acceptable
- Advanced machinery and equipments
- Stict quality control system
- Package could be adjusted
- Quick and effective reponse by salesmen
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
