Thin Film 10 Bar 20 Bar 35 Bar Flush Diaphragm Piezoresistive Ceramic Pressure Sensor Core

Price Negotiable

Price: $3.60 - $5.60/pieces

MOQ: 500pcs

Delivery Time: 30-day lead time

Brand: Songfast

Product Description

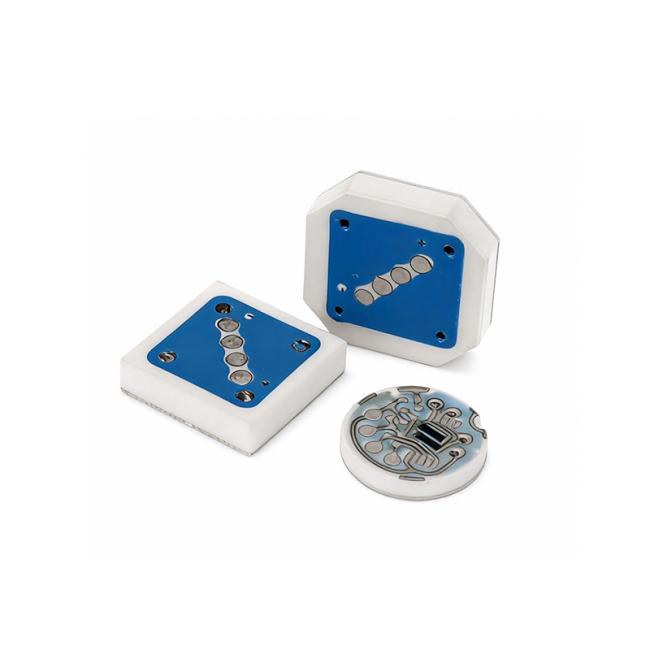

Thin Film Flush Diaphragm Piezoresistive Ceramic Pressure Sensor Core

Product Overview

Advanced RS143A Series ceramic pressure sensor cores featuring flush diaphragm design for high-impact pressure applications across industrial and manufacturing environments.

Key Features

Patented circuit layout design for optimal performance
Unique structural design enhancing durability
Ultra-high overload and burst pressure capability for high-impact scenarios
Wide operating temperature range for broad applicability
High-elasticity diaphragm for enhanced sensitivity and high-precision measurement
Supports precise data acquisition in demanding environments

Technical Specifications

Parameter	Electrical Characteristics
Series Name	RS143A Series
Type	Flush Diaphragm Pressure Sensor Core
Size (Length * Width * Height)	14 * 14 * 3.05 mm
Supply Voltage	2-30 V DC
Bridge Road Impedance	※5.0kΩ ± 30%
TCR	≤ 100 ppm/℃ @ -40℃~135℃
Operating Temperature	-40℃ ~ 135℃
Storage Temperature	-40℃ ~ 150℃
Temperature Drift	※ Tco&Tcs 0.03%FS/℃ Max / Tco&Tcs 0.05% FS/℃ optional
Nonlinearity	0.25% FS Max
Hysteresis & Repeatability	0.25% FS Max
Zero Offset	※0 ± 0.4mV/V
Sensitivity	※2.0-4.0mV/V, Typ: 3.0mV/V/FS
Response Time	＜ 2mS
Insulation Resistance	＞ 2KV
Zero-point Long Term Stability @25℃	Zero@25℃: ＜0.25 FSO (no time accumulation)
Cycle Life	5 million pressure cycles @ 2-5Hz, 0~full scale pressure~0, 15~35℃

Product Range - RS143A Series (14*14*3.0mm)

Product Model	Working Pressure Range	Overload Pressure	Burst Pressure
HXL-RS143A010C	0-10 Bar	＞ 30 Bar	＞ 50 Bar
HXL-RS143A020C	0-20 Bar	＞ 60 Bar	＞ 100 Bar
HXL-RS143A035C	0-35 Bar	＞ 70 Bar	＞ 150 Bar
HXL-RS143A050C	0-50 Bar	＞ 100 Bar	＞ 200 Bar
HXL-RS143A070C	0-70 Bar	＞ 140 Bar	＞ 300 Bar
HXL-RS143A100C	0-100 Bar	＞ 200 Bar	＞ 300 Bar
