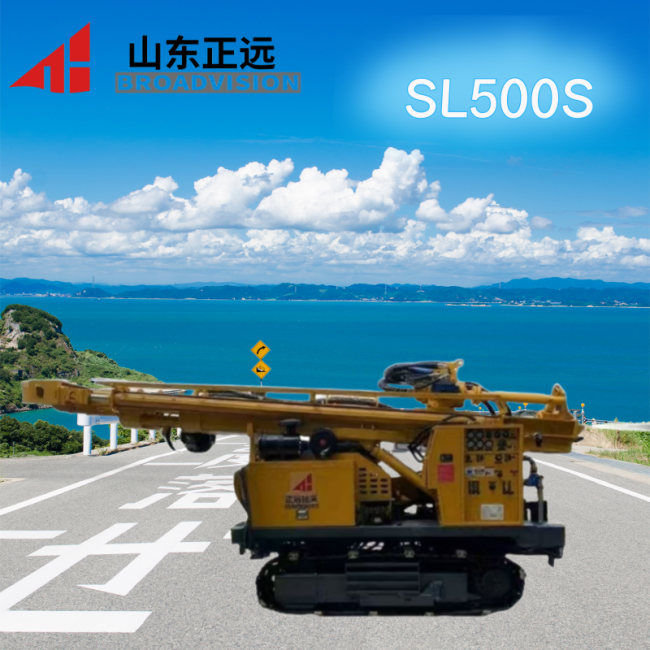

SL500S Crawler Water Well Drilling Rig 500m Depth 30T Lifting
SL500S Crawler Water Well Drilling Rig - High Power & Multifunctional
Applications
The Zhengyuan SL500S is a fully hydraulic, top drive drilling rig designed for diverse drilling applications including water wells, monitoring wells, geothermal wells, and oil/gas extraction projects. It operates efficiently in various geological formations, including high-temperature and high-altitude environments, with excellent performance in rock formations (Proctor hardness f=4-20).
Key Features
- Hydraulic system controls all operations (lifting, rotation, feeding, walking) for reduced labor intensity
- Telescopic tower design allows direct lowering of 6-meter drill rods/casings
- Adaptable rotary control panel for different working conditions
- Compact design for easy transportation and site setup
- Optional accessories available (mud pumps, generators, etc.)
Key Configurations
- Power System: Yuchai 110Kw engine
- Hydraulic System: Imported high-pressure gear pumps with two-valve combination
- Drilling System: 500m max depth, 105-400mm diameter, 6m drill pipes
- Lifting System: 30T capacity, 29m/min lifting speed
- Walking System: 3Km/h speed, 21° climbing ability
- Dimensions: 6.52×1.85×2.51m (10.6T weight)
Technical Specifications
| Model | SL500S | SL750S | SL400S |
|---|---|---|---|
| Weight (T) | 10.6 | 14 | 9.8 |
| Dimensions (M) | 6.52×1.85×2.51 | 6.64×2.25×2.67 | 6.26×1.85×2.43 |
| Max Drilling Depth (M) | 500 | 750 | 400 |
| Drilling Diameter (mm) | 105-400 | 105-450 | 105-325 |
| Lifting Force (T) | 30 | 40 | 22 |
| Max Rotary Torque (Nm) | 11000/5500 | 13000/6500 or 15000/7500 | 8000/4000 |
| Max Rotary Speed (r/min) | 75/150 | 95/190 | 75/150 |
| Jack Stroke (m) | 1.6 | 1.6 | 1.6 |
| Uphill Angle | 21° | 21° | 21° |
Why Choose Us?
Choose our equipment because it leads the industry in core performance, can enhance efficiency, reduce energy consumption, and has a lower total cost of ownership throughout its lifecycle. We offer fast service and flexible customization to meet your specific requirements. We also have a solid reputation and after-sales guarantee to ensure that you can use it with peace of mind, efficiency, and cost-effectiveness.
FAQ
Q: What's the lead time for orders?
A: The delivery time for the standard model is 10 to 20 days; for the customized model, it takes 20 to 35 days.
Q:Do you have after-sales service?
A: Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.
Q:May I request to customize the size of the product?
A: Absolutely! We offer tailored attachments.
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturing enterprise. Our factory mainly produces products such as crawler-type well drilling machines and vehicle-mounted well drilling machines. These products have been exported to hundreds of countries around the world and enjoy a high reputation there.
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
Q:How is the quality of your machine?
A:Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped.
