60mm Hybrid Stepper Motor 1.8 Step Angle 6 Lead Wire Nema 24 Stepper Motor
60mm Nema24 Hybrid Stepper Motor 1.8 Step Angle 4 Or 6 Lead Wire
|
Item |
Specifications |
|
Step Angle |
1.8° |
|
Step Angle Accuracy |
±5%(full step,no load) |
|
Resistance Accuracy |
±10% |
|
Inductance Accuracy |
±20% |
|
Temperature Rise |
80℃max |
|
Ambient Temperature |
-20℃~+50℃ |
|
Insulation Resistance |
100 MΩ Min. ,500VDC |
|
Dielectric Strength |
500VAC for 1minute |
|
Shaft Radial Play |
0.02Max. (450g-load) |
|
Shaft Axial Play |
0.08Max. (450g-load) |
| Holding Torque |
3N.m |
Electrical Specification:
| Model No. | Step Angle (°) |
Lead Wire (NO.) |
Voltage (V) |
Current (A/Phase) |
Resistance (Ω/Phase) |
Inductance (MH/Phase) |
Holding Torque (Kg.cm) |
Motor Length L(mm) |
Motor Weight (Kg) |
| 60BYGH56-0306 | 1.8 | 6 | 2.4 | 3.0 | 0.8 | 1.6 | 10 | 56 | 0.77 |
| 60BYGH56-0104 | 1.8 | 4 | 6.0 | 1.0 | 6.0 | 16 | 12.5 | 56 | 0.77 |
| 60BYGH64-1404 | 1.8 | 4 | 5.32 | 1.4 | 3.8 | 10 | 12.5 | 64 | 1.00 |
| 60BYGH64-1506 | 1.8 | 6 | 3.6 | 1.5 | 8.4 | 8.0 | 12.5 | 64 | 1.00 |
| 60BYGH87-0404 | 1.8 | 4 | 2.8 | 4.0 | 0.8 | 3.5 | 23.5 | 87 | 1.34 |
| 60BYGH87-0304 | 1.8 | 4 | 4.5 | 3.0 | 1.5 | 5.0 | 26 | 87 | 1.34 |

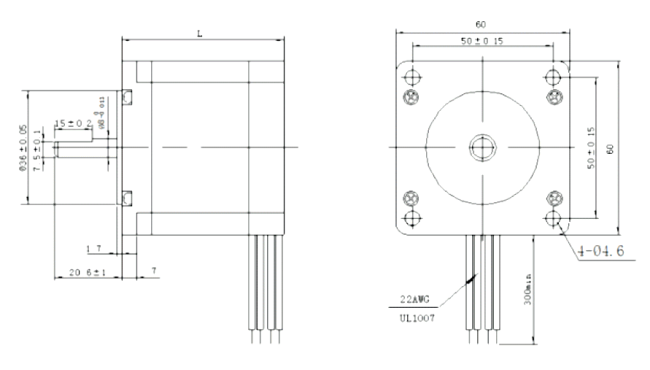

Drawing of stepper motor:mm
Stepper Motor Applications
Stepper motors are widely used across industries due to their precise positioning, reliable performance, and ease of control. Below are the key applications of stepper motors in various fields.
Why Choose Stepper Motors?
✔ High Precision – Maintain exact positioning without feedback systems (open-loop control).
✔ Reliable & Durable – Long lifespan with minimal maintenance.
✔ Wide Speed & Torque Range – Suitable for low to medium-speed applications.
✔ Cost-Effective – More affordable than servo motors for many applications.
Whether for industrial automation, medical devices, or consumer electronics, stepper motors provide accurate, repeatable motion control in compact and energy-efficient packages.
Looking for a custom stepper motor solution? Contact us for tailored specifications!
