TCM-YT automatic buffing machine for stainless steel tanks and dishes surface polishing grinding
TCM-YT automatic buffing machine for stainless steel tanks and dishes surface polishing grinding
Stainless steel tank surface automatic polishing grinding buffing machine with semi-autoamtion control system from China.

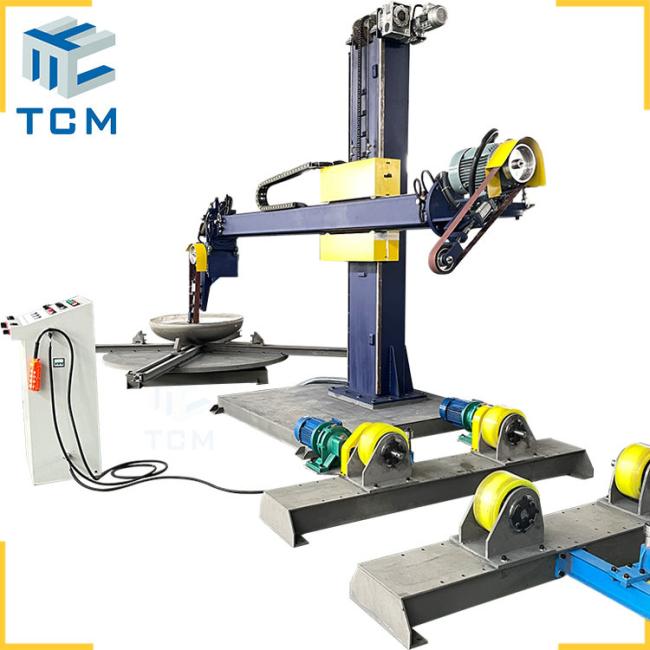

Trancar Industries TCM-YT column and boom manipulator stainless steel tank shell and dish automatic buffing machine,This model is suitable for not only all kinds of stainless steel tanks,industrial tanks internal and external polishing grinding and buffing,but dished head tank cap surface’s polishing grinding and buffing.Custom design service is available per your workshop or project's demands.
This machine is widely used in medical area,chemical,environmental purification,food ,beverage and water filter,etc.
It could buffing all kinds of steel metal cylinder tanks such as,atmospheric / pressure tanks,CIP-tanks,Milk / Cream / Yoghurt Tanks,Chocolate Processing tanks,Beer Fermentation Tanks,Yeast propagation Tanks,Mixer,Bio / Cosmetics Reactors,Pharma Mixers,centrifugal cylinder shell,crystal furnace tank shell etc.
TCM-YT series steel tanss and dishes automatic buffing machine
|
Normal configuration(customer design acceptable) |
|||
|
Steel metal tank size |
Outside diameter |
400~5000mm / 7000 mm |
|
|
Inside diameter |
400~5000mm / 7000 mm |
|
|
|
Length |
<=5000mm / 8000 mm |
|
|
|
Tank Roller Max.Loading capacity |
1 Ton / 2 Ton / 5 Ton /10 Ton or customization (13T,15T,20T) |
|
|
|
Dish end/Tank Head Size |
Inside & outer Diameter |
450~5000mm / 6000 mm |
|
|
Turntable Max.loading capacity |
1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton. |
|
|
|
Polishing Precision |
Surface roughness(Ra) |
<=0.25μm |
|
|
Production Efficiency |
Polishing working speed |
6~12 m2/h |
|
|
Total Dimension |
Machine Dimension |
4500*1600*3080mm |
|
|
Column Dimension |
300x400x8 mm |
|
|
|
Beam Dimension |
150x200x6 mm |
|
|
|
Input total Power |
/ |
15 kw |
|
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
|
Machine Weight |
/ |
3550kg |
|
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
|
|
|
Suitable Polishing Materials |
Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc) |
|
|
Trancar Industries Inox cylindrical tank shell automatic polishing delivery & package:
Packaging and delivery:
1,Plywood case+PE Film+ Carton protection.
2,or based on your order requirements.
