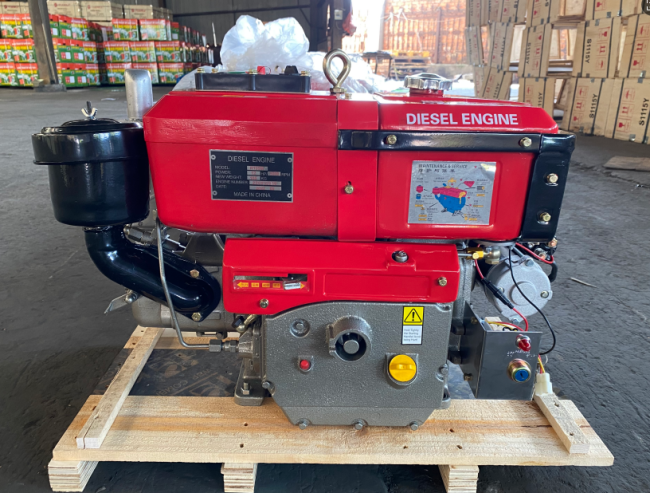

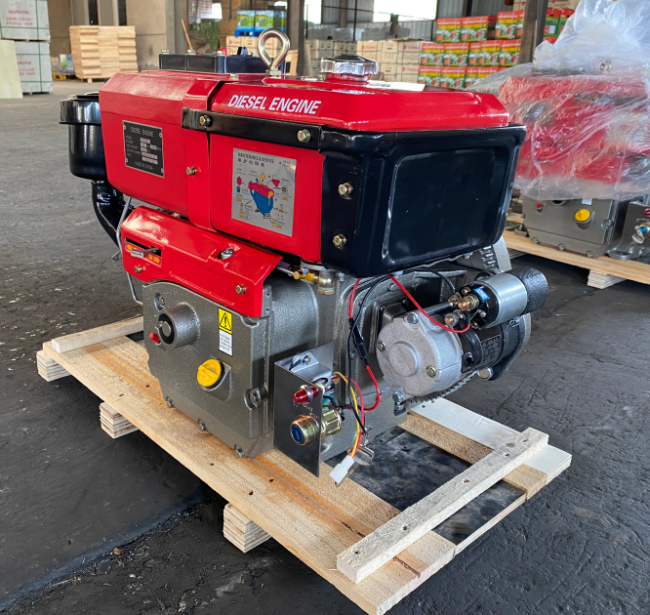

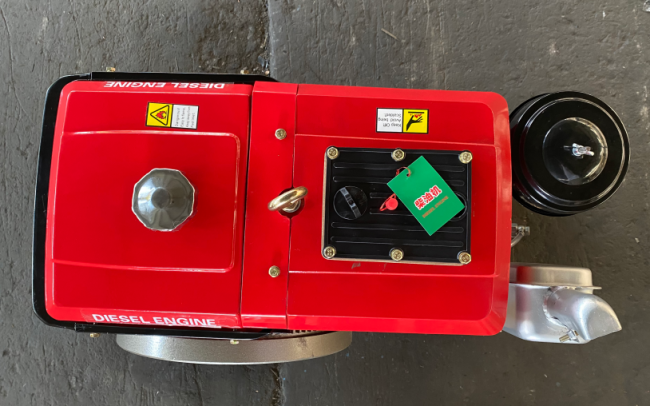

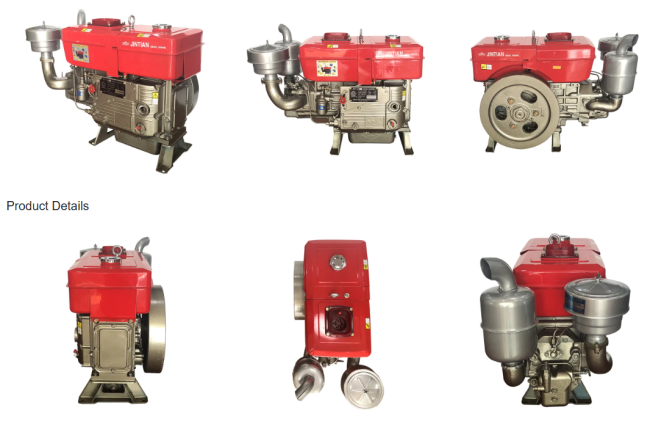

ZS195 Series Single-Cylinder Diesel Engine (Direct Injection Type)

The ZS195 series single-cylinder diesel engine features a direct injection system, offering excellent starting performance and fuel efficiency. With its compact design and attractive appearance, it delivers outstanding value for money.

Applications:

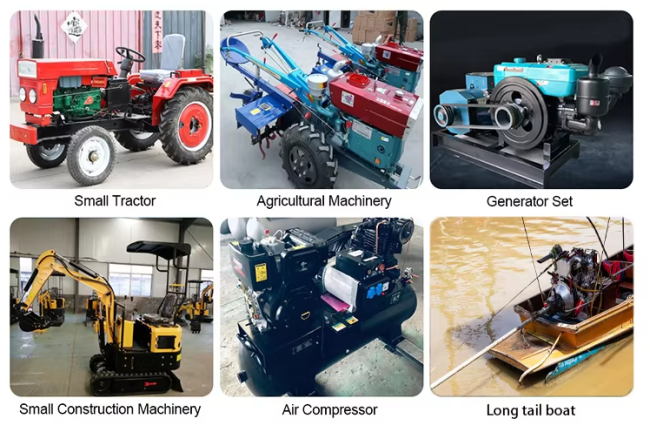

Ideal for use in small tractors, agricultural machinery, generator sets, water pumps, compact construction equipment, air compressors, inland river vessels, and agricultural and sideline product processing machinery.

Key Features:

1. Water-Cooled & Compact Design:
   Equipped with an efficient water-cooling system for stable operation and a compact structure suitable for various installations.

2. Plain Bearings:
   Utilizes plain bearings for smooth performance, easy maintenance, and extended service life.

3. Portable & Powerful:
   Moderate weight ensures easy transportation and installation, while the engine delivers sufficient power to meet the demands of high-power applications.

4. Simple Operation & Reliable Performance:
   Easy to operate, runs smoothly, and is built for long-term durability and dependable performance in diverse working conditions.

5. Model	ZS195TT	ZS195TTM	ZS195	ZS195M	ZS195NL	ZS195NML
   Type	Single Cylinder, Horizontal , 4-Stroke Engine
   Lubrication method	Combined Pressure And Splashing
   Cooling method	HOPPER				RADIATOR
   Combustion System	Swirl combustion chamber/Direct injection
   Starting System	hand-start	electric start	hand-start	electric start	hand-start	electric start
   Rated power(HP)	13HP/9.56KW
   Rated speed	2200RPM
   Bore x Stroke	95x115mm
   Net weight(kg)	125	125	145	145	145	145
   Gross weight(kg)	145	145	165	165	165	165
   Displacement	0.815L
   Fuel comsumption	271g/kW·h
   Oil comsumption	1.7g/kW·h
   Fuel tank capacity	7.5L

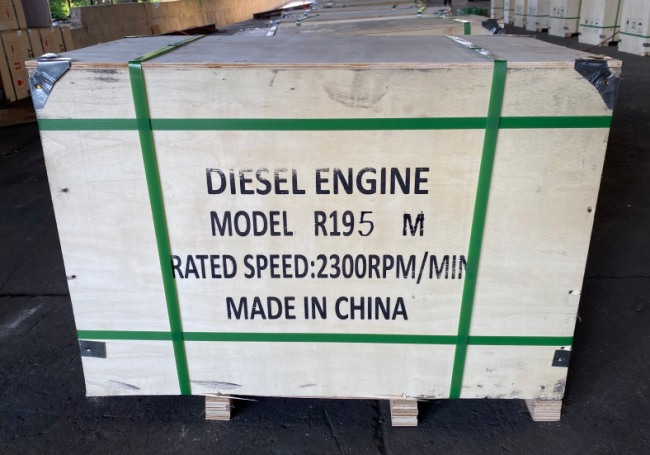

   Packing size	92x44x57cm	92x44x59cm	92x44x76cm
   Packages/20Ft container	128	128	96
