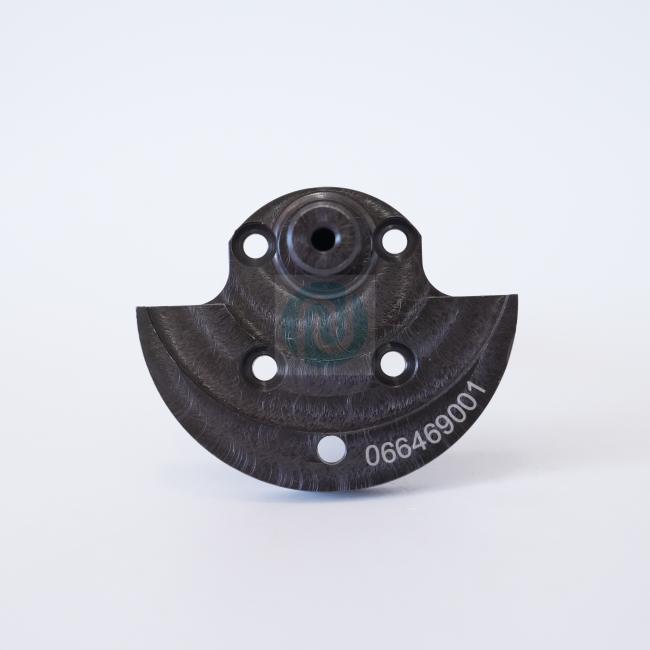

66469001 Crankshaft,crank Hsg,w/lanc.,s Is A Part Of Gt5250

Description:

66469001 Crankshaft,crank Hsg,w/lanc.,s, Apply To:Gerber GT5250,cutting,ggt,gerber Parts.

1.As a key component for power transmission in the cutting machine, the crankshaft and crankcase feature extremely high fitting precision. Critical parameters of the crankshaft, such as journal dimensions and eccentricity, undergo precision machining. This enables the crankshaft to form a tight fit with the bearings and bushings inside the crankcase, ensuring reduced radial runout and axial movement during rotation. In turn, this achieves stable power output and provides accurate mechanical transmission support for core operations of the cutting machine, such as cutter lifting/lowering and material feeding.

2.As a dedicated component for Gerber cutting machines, its installation dimensions, connection interfaces, and other specifications are strictly matched to the transmission system structure of specific machine models. This ensures precise docking with components such as motors and clutches, guarantees the coordination and stability of the entire machine's power transmission chain, and meets the requirements for high-speed and high-precision operation of the cutting machine.

Detailed Product Description:

Specification:

More picture for reference:
