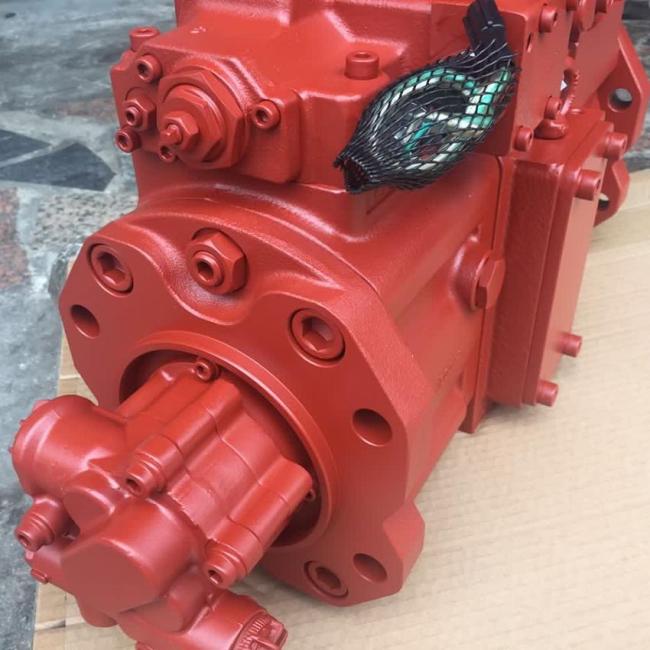

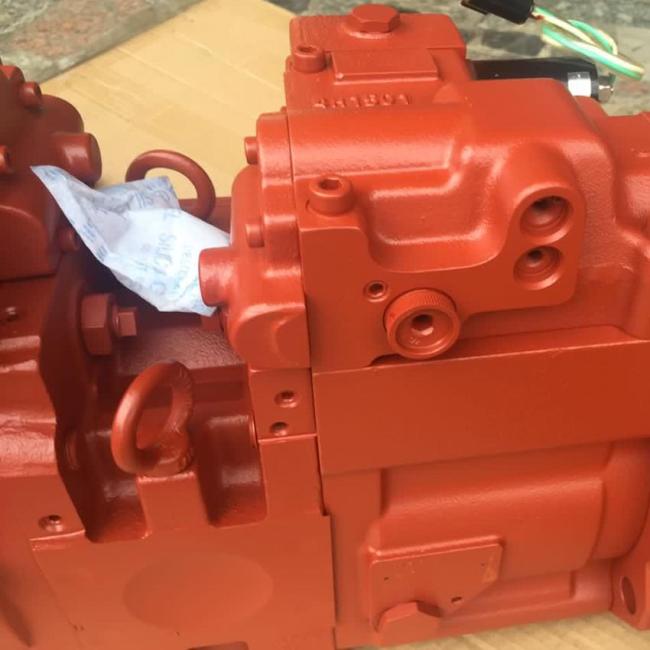

K7V100 R150-9 K5V80DTP 9C Hydraulic Main Pump 14538542 EC160 excavator Pump
R150-9 K5V80DTP 9C hydraulic main pump 14538542 EC160 pumps
list
| K5V80DTP | |
| R150-9 R170 | |
VOE14538542 Hydraulic pump .Heavy parts EC160C, EC180C Hydraulic
CE parts alog
-

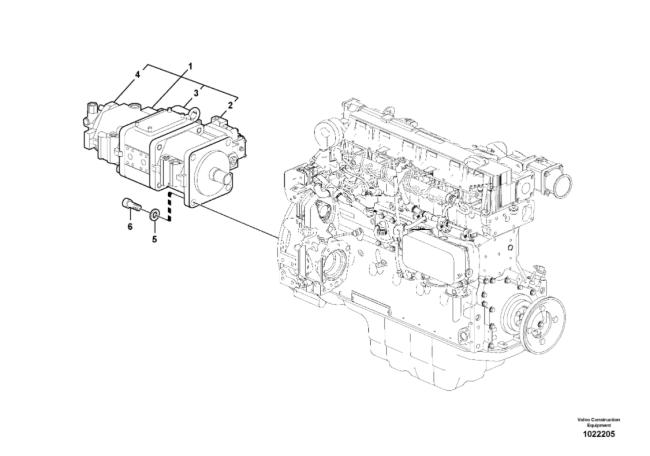

Pump installation
-
Hydraulic pump
-
Hydraulic pump
-
Pump installation
|
Pos. |
Part No |
Qty |
Parts name |
Comments |
|---|---|---|---|---|
|
|
VOE14538542 |
[1] |
Hydraulic pump |
|
|
1. |
VOE14552720 |
[2] |
Piston |
|
|
2. |
VOE14552721 |
[1] |
Cylinder |
|
|
|
VOE14552731 |
[1] |
Block |
|
|
3. |
VOE14552745 |
[1] |
Plate |
|
|
4. |
VOE14552722 |
[1] |
Cylinder |
|
|
|
VOE14552731 |
[1] |
Block |
|
|
5. |
VOE14552746 |
[1] |
Plate |
|
|
6. |
VOE14552723 |
[2] |
Plate |
|
|
|
VOE14552737 |
[1] |
Plate |
|
|
7. |
VOE14500012 |
[1] |
Plate |
|
|
8. |
VOE14552724 |
[4] |
Non-return valve |
|
|
9. |
VOE14552725 |
[2] |
Pin |
|
|
10. |
VOE14552726 |
[1] |
Shaft |
|
|
11. |
VOE14552727 |
[1] |
Shaft |
|
|
12. |
VOE14552726 |
[1] |
Shaft |
|
|
13. |
VOE14552729 |
[2] |
Roller bearing |
|
|
14. |
VOE14552730 |
[2] |
Needle bearing |
|
|
15. |
SA8230-14530 |
[3] |
Spacer |
|
|
16. |
VOE14552734 |
[2] |
Plate |
|
|
17. |
VOE14552735 |
[2] |
Bushing |
|
|
18. |
SA7223-00180 |
[12] |
Spring |
|
|
19. |
VOE14552736 |
[2] |
Plate |
|
|
20. |
VOE14552738 |
[2] |
Support |
|
|
21. |
VOE14552739 |
[2] |
Pin |
|
|
22. |
VOE14552740 |
[2] |
Spring |
|
|
23. |
VOE14552741 |
[1] |
Cover |
|
|
24. |
VOE14552742 |
[1] |
Casing |
|
|
25. |
VOE14552743 |
[1] |
Casing |
|
|
26. |
VOE14552744 |
[0001] |
Valve block |
|
|
27. |
VOE14552747 |
[1] |
Cover |
|
|
28. |
VOE14550184 |
[1] |
Cover |
|
|
29. |
VOE14552748 |
[4] |
Screw |
|
|
30. |
SA8230-25850 |
[7] |
Bolt |
|
|
31. |
VOE11705999 |
[4] |
Allen Hd Screw |
|
|
32. |
VOE14550185 |
[4] |
Plug |
|
|
33. |
VOE14560637 |
[22] |
Plug |
|
|
34. |
VOE14552750 |
[2] |
Piston |
|
|
35. |
VOE14552751 |
[2] |
Plug |
|
|
36. |
SA8230-09640 |
[2] |
Plug |
|
|
37. |
SA8230-09650 |
[2] |
Plate |
|
|
38. |
VOE14533615 |
[2] |
O-ring |
|
|
39. |
VOE14552753 |
[1] |
O-ring |
|
|
40. |
VOE14535450 |
[1] |
O-ring |
|
|
41. |
VOE14535451 |
[2] |
O-ring |
|
|
42. |
VOE14529757 |
[10] |
O-ring |
|
|
43. |
VOE14533604 |
[8] |
O-ring |
|
|
44. |
VOE14550187 |
[4] |
O-ring |
|
|
45. |
VOE14533609 |
[3] |
O-ring |
|
|
46. |
VOE14552754 |
[2] |
O-ring |
|
|
47. |
VOE14534053 |
[1] |
O-ring |
|
|
48. |
VOE14535452 |
[1] |
Seal |
|
|
49. |
VOE14536605 |
[2] |
Ring |
|
|
50. |
VOE14536606 |
[2] |
Ring |
|
|
51. |
SA8230-25620 |
[2] |
Nut |
|
|
52. |
VOE979022 |
[2] |
Hexagon nut |
|
|
53. |
VOE13914468 |
[2] |
Snap ring |
|
|
54. |
SA7223-00660 |
[4] |
Spring pin |
|
|
55. |
VOE14623509 |
[2] |
Eye bolt |
|
|
56. |
SA8230-26780 |
[2] |
Bolt |
|
|
57. |
SA8230-09700 |
[2] |
Bolt |
|
|
100. |
VOE14554635 |
[1] |
Seal |
