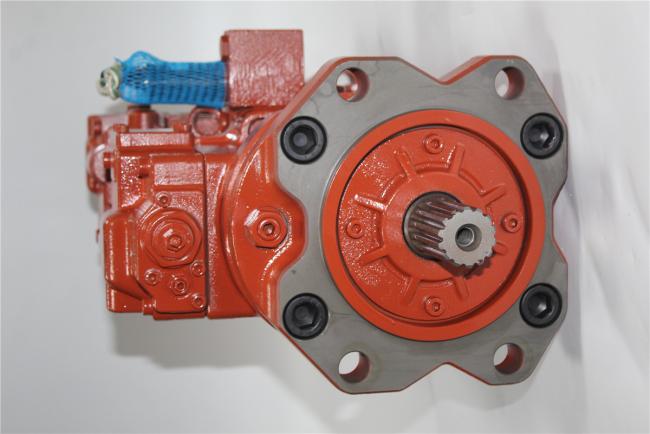

Ec240 Ec460 Ec360 Belparts Excavator Main Pump Hydraulic Pump For SA 1142-00531
ec240 ec460 ec360 Belparts Excavator main pump hydraulic pump for SA 1142-00531
Quick Detail of Excavator Hydraulic Pump
Material:Steel
Product Name: Excavator Main Hydraulic Pump
Applicable Industries:Machinery Repair Shops, Manufacturing Plant
Dimension(L*W*H):35*51*52
Part number:SA 1142-00531
Package Details:Export Wooden Box
Weight:130KG
Surface treatment:Heat resistance paint
Pressure:Standard, High Pressure
Brand:
Specifiions Of Excavator Hydraulic Pump
| Product Name | Excavator Hydraulic Pump |
| Brand | |
| Machine model | ec240 ec460 ec360 |
| Part Number | SA 1142-00531 |
| N.W/KG | 130KG |
| G.W/KG | 140KG |
| Packing Size | 84*38*49 |
| Pump number | / |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Qty. | Price request |
| SA 1142-00531 | Pump more | 1 | ||
| 1 | SA 8230-14650 | Piston | 2 | |
| 2 | SA 14500003 | Piston | 9 | |
| 3 | SA 14500002 | Seat | 9 | |
| 4 | SA 8230-28580 | Cylinder | 1 | |
| 5 | SA 8230-28560 | Block | 1 | |
| 6 | SA 14500001 | Plate | 1 | |
| 7 | SA 8230-28590 | Cylinder | 1 | |
| 8 | SA 8230-28560 | Block | 1 | |
| 9 | SA 14500000 | Plate | 1 | |
| 10 | SA 8230-09800 | Plate | 2 | |
| 11 | SA 8230-30540 | Plate | 1 | |
| 12 | SA 14500012 | Bushing | 1 | |
| 13 | SA 7223-00450 | Check valve more | 2 | |
| 14 | SA 7223-00500 | Seat | 1 | |
| 15 | SA 7223-00520 | Guard | 1 | |
| 16 | SA 9676-73200 | Ball more | 1 | |
| 17 | SA 7223-00460 | Check valve | 2 | |
| 18 | SA 7223-00500 | Seat | 1 | |
| 19 | SA 7223-00540 | Guard | 1 | |
| 20 | SA 9676-73200 | Ball more | 1 | |
| 21 | SA 8230-09020 | Valve more | 1 | |
| 22 | SA 8230-09100 | Shaft | 1 | |
| 23 | SA 8230-09070 | Shaft | 1 | |
| 24 | SA 8230-09660 | Coupling | 1 | |
| 25 | SA 8230-26610 | Roller Bearing more | 2 | |
| 26 | SA 8230-26700 | Needle Bearing more | 2 | |
| 27 | SA 8230-14530 | Spacer | 4 | |
| 28 | SA 8230-09370 | Plate | 2 | |
| 29 | SA 8230-09680 | Bushing more | 2 | |
| 30 | SA 8230-09710 | Spring | 18 | |
| 31 | SA 8230-09670 | Spacer | 2 | |
| 32 | SA 8230-21920 | Plate | 2 | |
| 33 | SA 8230-08940 | Support | 2 | |
| 34 | SA 8230-09350 | Cover | 1 | |
| 35 | SA 8230-08930 | Body | 1 | |
| 36 | SA 8230-08980 | Valve assembly | 1 | |
| 37 | SA 8230-09690 | Bolt | 8 | |
| 38 | SA 9016-10804 | Bolt more | 4 | |
| 39 | SA 9415-11021 | Plug more | 3 | |
| 40 | SA 9415-11051 | Plug more | 4 | |
| 41 | SA 7242-11040 | Plug more | 21 | |
| 42 | SA 8230-09790 | Pin | 2 | |
| 43 | SA 8230-09320 | Pin | 1 | |
| 44 | SA 7223-00570 | Pin | 1 | |
| 45 | SA 8230-09250 | Piston | 2 | |
| 46 | SA 8230-09640 | Stop | 2 | |
| 47 | SA 8230-09650 | Stop | 2 | |
| 48 | SA 9511-22035 | O-ring more | 2 | |
| 49 | SA 9511-22095 | O-ring more | 1 | |
| 50 | SA 9511-22145 | O-ring more | 4 | |
| 51 | SA 9511-12008 | O-ring more | 16 | |
| 52 | SA 9511-12011 | O-ring more | 8 | |
| 53 | SA 9511-12024 | O-ring more | 4 | |
| 54 | SA 9511-12018 | O-ring more | 2 | |
| 55 | SA 8230-26900 | Seal more | 1 | |
| 56 | SA 9566-10180 | Ring | 2 | |
| 57 | SA 9566-20350 | Ring | 2 | |
| 58 | SA 8230-25620 | Nut | 2 | |
| 59 | SA 9111-12000 | Nut more | 2 | |
| 60 | SA 8230-25980 | Ring | 2 | |
| 61 | SA 8230-26430 | Plate | 2 | |
| 62 | SA 7223-00660 | Spring Pin | 4 | |
| 63 | SA 8230-25450 | Eye Bolt | 2 | |
| 64 | SA 8230-26780 | Bolt | 2 | |
| 65 | SA 8230-09700 | Bolt | 2 | |
| 100 | SA 8148-13080 | Sealing Kit more | 1 |
Service
1) Material: All our products are used high quality genuiner raw material.
2) Inspection: We make a very strict inspection process before delivery.
3) Inventory: We have about 1000 pieces in stock, can provide you at once.
4) Price: We have steady in stock and we can offer competitive price.
5) Delivery time: We will deliver the goods within 1-3 days after received the payment.
6) Service: We have a professional team to offer professional service for you 24/7.
7) All the spare parts are 100% measured, 100% interchangeable.
Parts scheme
FAQ
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 3-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts,
hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or
video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
5.How do I pay?
You can pay by T/T, PayPal (for small amount) and trade assurance
