Belparts Excavator Main Pump EC360B EC330B EC460B Hydraulic Pump VOE 14531412 VOE 14508164 VOE 14531857
Price:
Negotiable price
MOQ:
1 piece
Delivery Time:
1-5days
Brand:
Belparts
Product Description

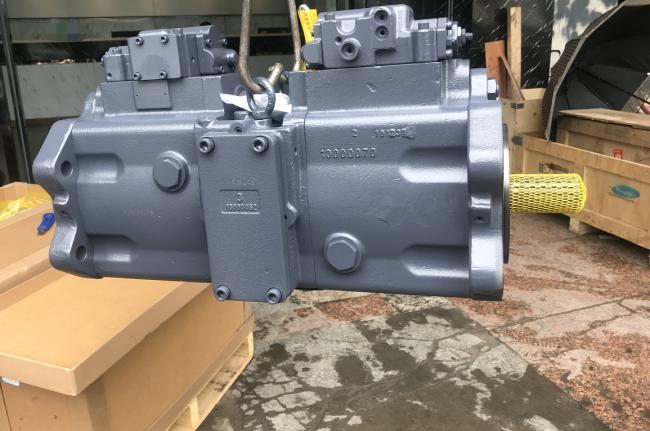

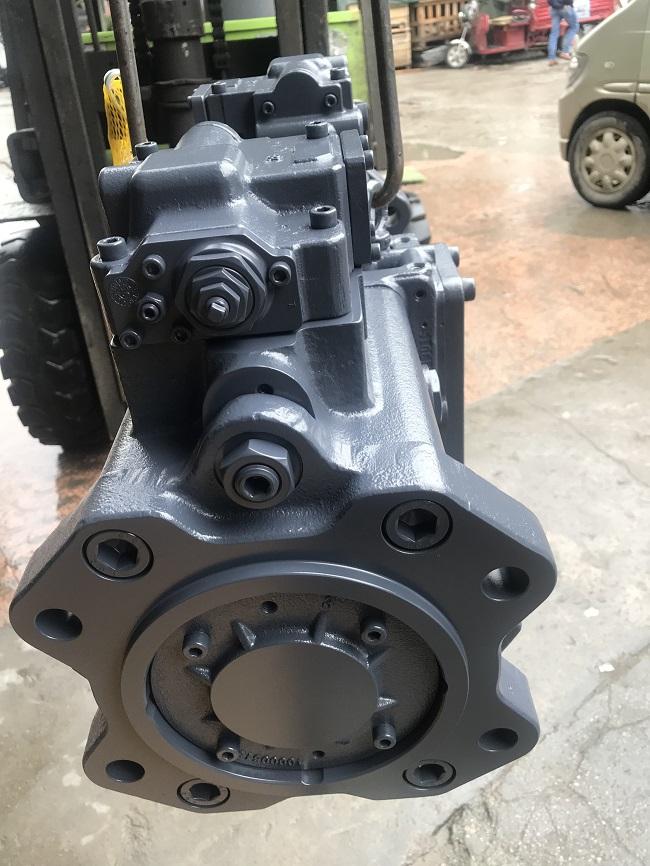

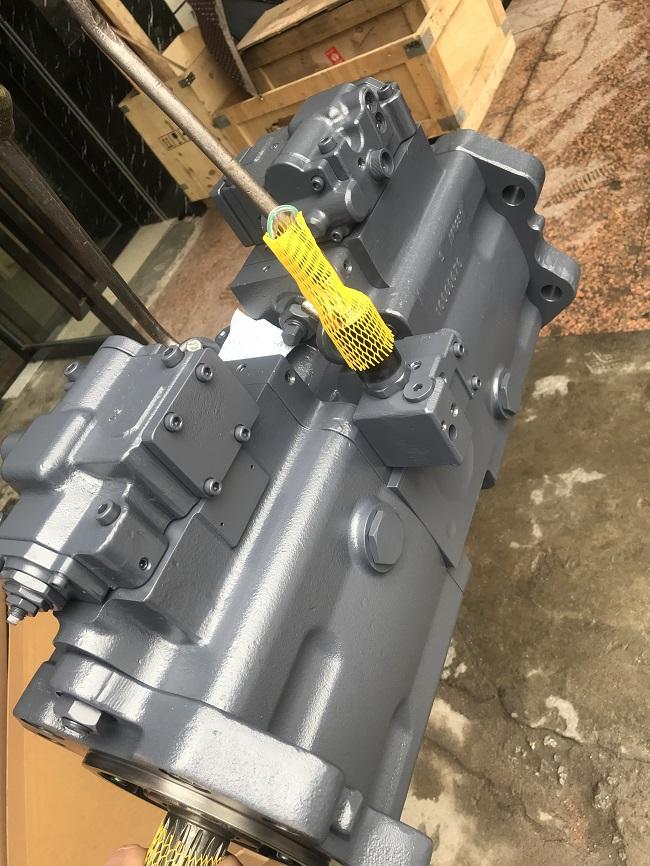

Belparts excavator main pump EC360B EC330B EC460B hydraulic pump VOE 14531412 VOE 14508164 VOE 14531857
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:EC360B EC330B EC460B
Packing Size:84*38*49
Part number: VOE 14531412 VOE 14508164 VOE 14531857
Pressure:Standard, High Pressure
Specifiions Of Excavator Hydraulic Pump
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | EC360B EC330B EC460B |
| Packing Size | 84*38*49 |
| Part number | VOE 14531412 VOE 14508164 VOE 14531857 |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Qty. | Price request |
| 8280299 | ||||
| VOE 14531412 | Pump | 1 | ||
| 1 | SA 7223-00140 | Piston | 2 | |
| 2 | VOE 14512923 | Piston | 9 | |
| 3 | VOE 14502323 | Seat, Pad | 9 | |
| 4 | SA 7223-00780 | Cylinder | 1 | |
| 5 | VOE 14502321 | Block | 1 | |
| 6 | VOE 14502324 | Plate | 1 | |
| 7 | SA 7223-00790 | Cylinder | 1 | |
| 8 | VOE 14502321 | Block | 1 | |
| 9 | VOE 14502325 | Plate | 1 | |
| 10 | VOE 14502011 | Plate | 2 | |
| 11 | SA 7223-00220 | Plate | 1 | |
| 12 | SA 7223-00240 | Bushing | 1 | |
| 13 | VOE 14511979 | Gear | 1 | |
| 14 | VOE 14511980 | Bearing | 2 | |
| 15 | VOE 14511981 | Bearing | 2 | |
| 16 | SA 7223-00060 | Spacer | 3 | |
| 17 | SA 8230-09300 | Plate | 2 | |
| 18 | VOE 14510070 | Bushing more | 2 | |
| 19 | SA 7223-00180 | Spring | 18 | |
| 20 | SA 7223-00260 | Support | 2 | |
| 21 | SA 7223-00210 | Plate | 2 | |
| 22 | VOE 14535453 | Valve more | 1 | |
| 23 | VOE 14533606 | O-ring more | 4 | |
| 24 | VOE 14533608 | O-ring more | 1 | |
| 25 | SA 7242-11040 | Plug more | 3 | |
| 26 | SA 8230-25880 | Bolt more | 3 | |
| 27 | SA 9415-11021 | Plug more | 1 | |
| 28 | SA 8230-32080 | Valve more | 1 | |
| 29 | VOE 14535454 | O-ring more | 1 | |
| 30 | VOE 14535455 | O-ring more | 1 | |
| 31 | VOE 14535456 | O-ring more | 1 | |
| 32 | SA 7242-11040 | Plug more | 24 | |
| 33 | SA 7223-00390 | Bolt | 8 | |
| 34 | SA 7223-00410 | Piston | 2 | |
| 35 | SA 7223-00420 | Stop | 2 | |
| 36 | SA 7223-00430 | Stop | 2 | |
| 37 | SA 7223-00450 | Check valve more | 2 | |
| 38 | VOE 14535204 | Seat | 1 | |
| 39 | VOE 14535205 | Stop | 1 | |
| 40 | VOE 14880998 | Ball more | 1 | |
| 41 | VOE 14540760 | Check valve | 2 | |
| 42 | VOE 14535204 | Seat | 1 | |
| 43 | VOE 14540758 | Stop | 1 | |
| 44 | VOE 14880998 | Ball more | 1 | |
| 45 | VOE 967630 | Allen Hd Screw more | 8 | |
| 46 | SA 7223-00690 | O-ring | 2 | |
| 47 | VOE 14533617 | O-ring | 3 | |
| 48 | VOE 14533034 | O-ring | 2 | |
| 49 | VOE 14533035 | O-ring | 2 | |
| 50 | VOE 14533604 | O-ring | 16 | |
| 51 | VOE 14533606 | O-ring more | 4 | |
| 52 | VOE 14533612 | O-ring | 3 | |
| 53 | SA 7223-00700 | O-ring | 2 | |
| 54 | VOE 14535388 | Seal | 1 | |
| 55 | SA 7223-00640 | Ring | 2 | |
| 56 | SA 7223-00650 | Ring | 2 | |
| 57 | VOE 979022 | Nut more | 4 | |
| 58 | VOE 914470 | Snap Ring more | 2 | |
| 59 | SA 7242-10560 | Pin | 2 | |
| 60 | SA 7223-00660 | Spring Pin | 4 | |
| 61 | VOE 14880555 | Eye Bolt | 2 | |
| 62 | SA 7223-00670 | Set Screw | 2 | |
| 63 | VOE 14511994 | Cover | 1 | |
| 64 | SA 9016-11206 | Bolt more | 4 | |
| 65 | VOE 14512382 | Plug | 12 | |
| 66 | SA 9415-11021 | Plug more | 2 | |
| 67 | VOE 14540757 | O-ring | 1 | |
| 68 | SA 7223-00680 | Set Screw | 2 | |
| 69 | VOE 14512927 | Power Take-off | 1 | |
| 70 | SA 9415-11051 | Plug more | 1 | |
| 71 | SA 8240-03470 | Bolt | 4 | |
| 72 | SA 8240-03450 | Bolt | 2 | |
| 73 | VOE 983524 | O-ring more | 1 | |
| 74 | SA 9511-22080 | O-ring more | 1 | |
| 75 | VOE 14512544 | Cover | 1 | |
| 76 | VOE 14511977 | Shaft | 1 | |
| 77 | VOE 14511978 | Shaft | 1 | |
| 78 | SA 7223-00280 | Cover | 1 | |
| 79 | VOE 14540759 | Casing | 2 | |
| 80 | VOE 14511982 | Block | 1 | |
| 81 | VOE 14506634 | Pin | 2 | |
| 82 | SA 7223-00400 | Pin | 1 | |
| 83 | SA 7223-00570 | Pin | 1 | |
| 84 | SA 9415-11051 | Plug more | 4 | |
| 100 | VOE 14540777 | Sealing Kit | 1 |
Model |
Nominal displacement (ml/r) |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) |
L1 | L | Weight (kg) |
|||
Rated |
Max |
Min |
Rated |
Max |
||||||
| CBHZ-F23-AL** | 23 | 20 | 25 | 600 | 2500 | 3000 | 92 | 60 | 116 | 4.1 |
| CBHZ-F25-AL** | 25 | 61.5 | 119 | 4.3 | ||||||
| CBHZ-F26.5-AL** | 26.5 | 62.5 | 121 | 4.5 | ||||||
| CBHZ-F28.2-AL** | 28.2 | 63.5 | 123 | 4.6 | ||||||
| CBHZ-F30-AL** | 30 | 64.5 | 125 | 4.8 | ||||||
| CBHZ-F32-AL** | 32 | 65.5 | 127 | 5.0 | ||||||
| CBHZ-F36-AL** | 36 | 68 | 132 | 5.4 | ||||||
