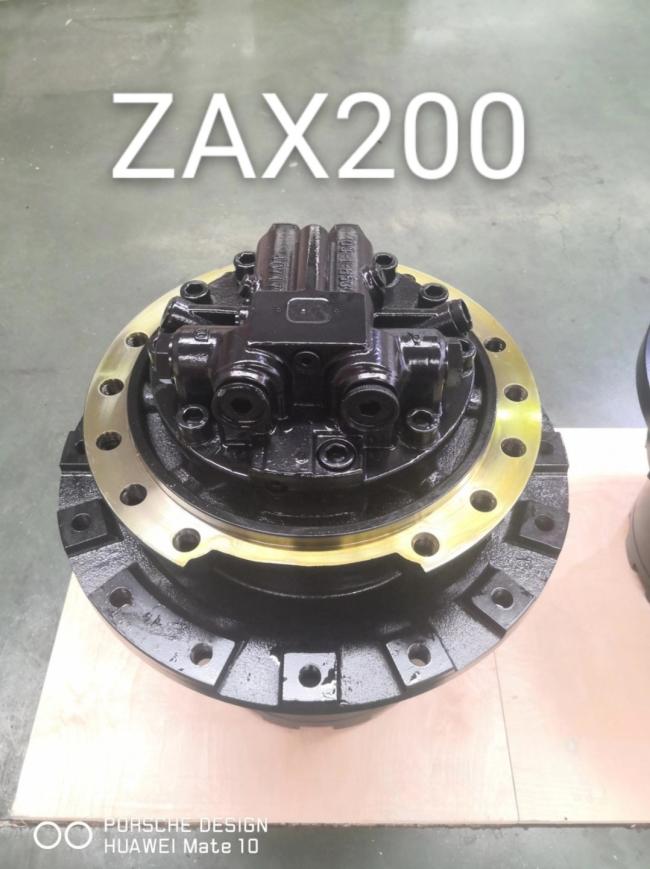

ZX200 ZX200-6 ZX200-1 ZX210 Belparts Excavator Travel Motor Final Drive Assy HMGF36 Travel Motor Assy 9191194 9199841
ZX200 ZX200-6 ZX200-1 ZX210 Belparts Excavator Travel Motor Final Drive Assy HMGF36 Travel Motor Assy 9191194 9199841
Product description
Appliion:Excavator machine
Part name:travelling motors
Model:ZX200 ZX200-6 ZX200-1 ZX210
Package:56*54*67
Warranty:1 Year
Brand:DOOSAN
Delivery:2 days after the payment received
Shipment:by sea, by air, by express or as required
| Appliion | Excavator machine |
| Part name | travelling motors |
| Model | ZX200 ZX200-6 ZX200-1 ZX210 |
| Package | 56*54*67 |
| Warranty | 1 Year |
| Brand | HITACHI |
| Delivery | 2 days after the payment received |
| Shipment | by sea, by air, by express or as required |
| # | Part No | Part Name | Qty. |
| 9191194 | TRAVEL DEVICE (FOR ASSEMBLY OF MACHINE) | 2 | |
| 9199841 | TRAVEL DEVICE (FOR TRANSPORTATION) | 2 | |
| 00 | 9190295 | *MOTOR; OIL (FOR ASSEMBLY OF MACHINE) | 1 |
| 00 | 9200288 | *MOTOR; OIL (FOR TRANSPORTATION) | 1 |
| 02 | 4114753 | *SEAL; GROUP | 1 |
| 03 | 4246793 | *BRG.; ROL. | 2 |
| 04 | 1027152 | *DRUM | 1 |
| 05 | 1010203 | *SPROCKET | 1 |
| 06 | J932055 | *BOLT | 16 |
| 07 | A590920 | *WASHER; SPRING | 16 |
| 08 | 3086531 | *NUT | 1 |
| 11 | 4436242 | *PIN; KNOCK | 1 |
| 12 | 1026779 | *CARRIER | 1 |
| 13 | 3085966 | *GEAR; PLANETARY | 3 |
| 14 | 4445531 | *BRG.; NEEDLE | 6 |
| 15 | 4284521 | *PLATE; THRUST | 6 |
| 16 | 4139975 | *PIN | 3 |
| 17 | 4116309 | *PIN; SPRING | 3 |
| 18 | 3085927 | *GEAR; SUN | 1 |
| 20 | 1027158 | *GEAR; RING | 1 |
| 21 | J931640 | *BOLT | 28 |
| 23 | 1027161 | *CARRIER | 1 |
| 24 | 4401293 | *SPACER | 2 |
| 25 | 3085985 | *GEAR; PLANETARY | 3 |
| 26 | 4445529 | *BRG.; NEEDLE | 3 |
| 27 | 4210851 | *PLATE; THRUST | 6 |
| 28 | 4309995 | * | 3 |
| 29 | 4246358 | *PIN; SPRING | 3 |
| 30 | 3085941 | *GEAR; SUN | 1 |
| 32 | 1027160 | *CARRIER | 1 |
| 33 | 3086006 | *GEAR; PLANETARY | 3 |
| 34 | 4406589 | *BRG.; NEEDLE | 3 |
| 35 | 4192910 | *PLATE; THRUST | 6 |
| 36 | 4210853 | *PIN | 3 |
| 37 | 4173093 | *PIN; SPRING | 3 |
| 38 | 2043851 | *SHAFT; PROP | 1 |
| 40 | 2043868 | *COVER | 1 |
| 41 | 4285323 | *PIN; STOPPER | 1 |
| 42 | J011230 | *BOLT; SEMS | 12 |
| 43 | 4245797 | *PLUG | 3 |
| 46 | 3053559 | *NAME-PLATE | 1 |
| 47 | M492564 | *SCREW; DRIVE | 2 |
| 43 | 4245797 | . PLUG | 3 |
| 46 | 3053559 | . NAME-PLATE | 1 |
| 47 | M492564 | . SCREW; DRIVE | 2 |
FAQ
1.What is the warranty time of the products?
The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 3-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts,
hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or
video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
5.How do I pay?
You can pay by T/T, PayPal (for small amount) and trade assurance
