Excavator Spare Parts Swing Gearbox 4036119 Hitachi Uh025
Excavator swing gearbox hitachi uh025 swing gearbox
|
Product name |
Swing Gearbox |
|
Brand |
Hitachi excavator |
|
Model: |
uh025 |
|
Part number: |
pls send us part number you need |
|
Weight |
45KG |
|
Package |
32X32x32 |

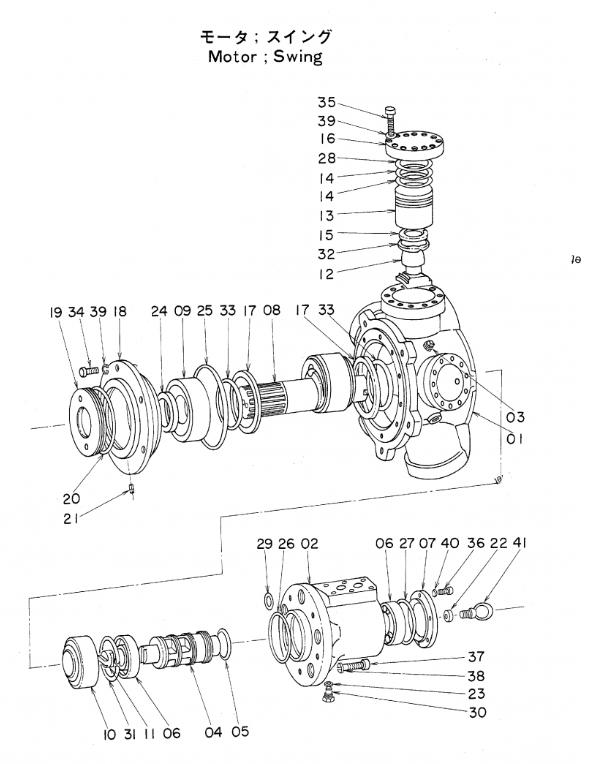

List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 4036119 | MOTOR; SWING | 1 | ||
| 01 | 4043072 | . BODY | 1 | |
| 02 | 4043073 | . CASING | 1 | |
| 03 | 94-2024 | . PLUG | 1 | |
| 04 | 4043074 | . VALVE | 1 | |
| 05 | 4043075 | . RING; PISTON | 4 | |
| 06 | 4043076 | . BRG. | 2 | |
| 07 | 4043077 | . CAGE | 1 | |
| 08 | 4043078 | . SHAFT; CRANK | 1 | |
| 09 | 4043079 | . BRG. | 1 | |
| 10 | 4043080 | . BRG. | 1 | |
| 11 | 4043081 | . COUPLING | 1 | |
| 12 | 4043232 | . ROD; CONNECTING | 5 | |
| 13 | .. PISTON | 5 | ||
| 14 | 4043083 | . RING; PISTON | 10 | |
| 15 | 4043084 | . COLLAR | 5 | |
| 16 | 4043085 | . CAP | 5 | |
| 17 | 4043086 | . GUIDE | 2 | |
| 18 | 4043087 | . CASING | 1 | |
| 19 | 4043088 | . NUT | 1 | |
| 20 | 4043096 | . O-RING | 1 | |
| 21 | 4043097 | . SCREW | 1 | |
| 22 | 4043095 | . WASHER | 1 | |
| 23 | 4509180 | . O-RING 1BP14 | 1 | |
| 24 | 4043089 | . SEAL; OIL | 1 | |
| 25 | A811180 | . O-RING 1BG180 | 1 | |
| 26 | A811140 | . O-RING 1BG140 | 1 | |
| 27 | A811100 | . O-RING 1BG100 | 1 | |
| 28 | A811060 | . O-RING 1BG60 | 5 | |
| 29 | 4506424 | . O-RING 1BP24 | 5 | |
| 30 | 4043094 | . BOLT | 1 | |
| 31 | 4043090 | . RING; RETAINING | 1 | |
| 32 | 4043091 | . RING; RETAINING | 5 | |
| 33 | 4043092 | . RING; RETAINING | 2 | |
| 34 | M341036 | . BOLT; SOCKET | 5 | |
| 35 | M341040 | . BOLT; SOCKET | 55 | |
| 36 | M340825 | . BOLT; SOCKET | 5 | |
| 37 | M341445 | . BOLT; SOCKET | 5 | |
| 38 | A590914 | . WASHER; SPRING | 5 | |
| 39 | A590910 | . WASHER; SPRING | 60 | |
| 40 | A590908 | . WASHER; SPRING | 5 | |
| 41 | 4043093 | . BOLT | 1 |

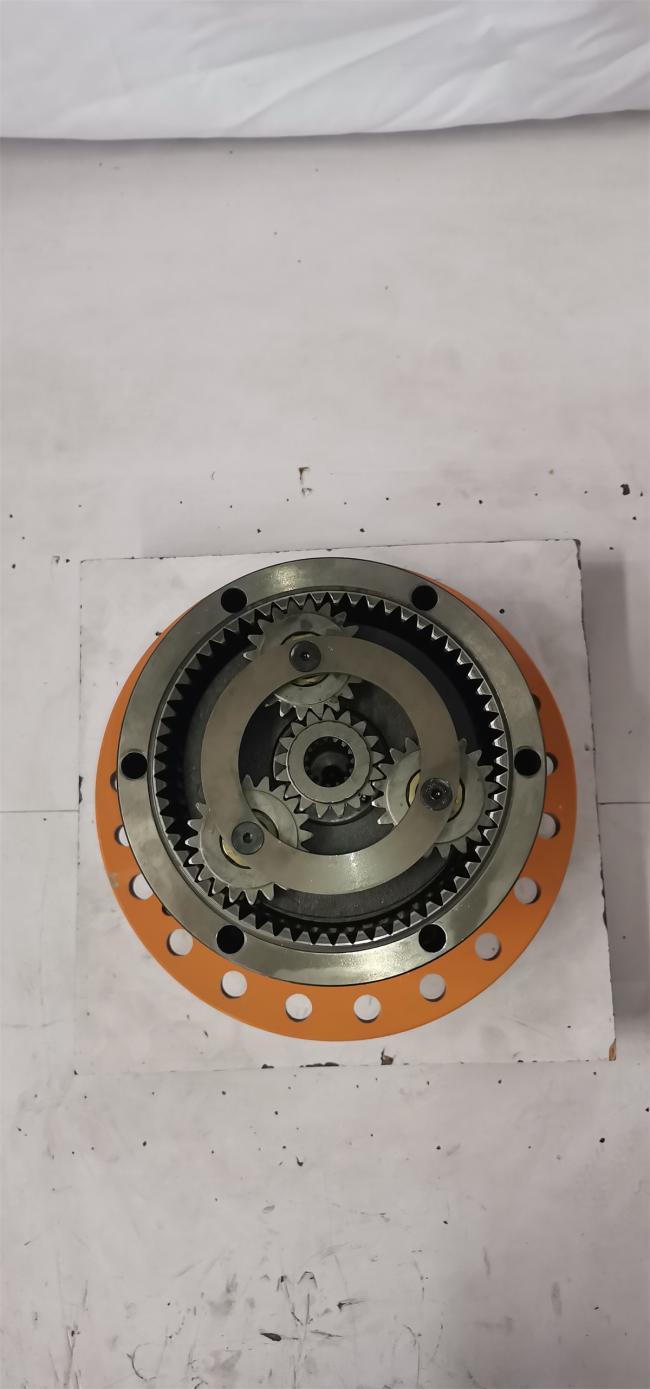

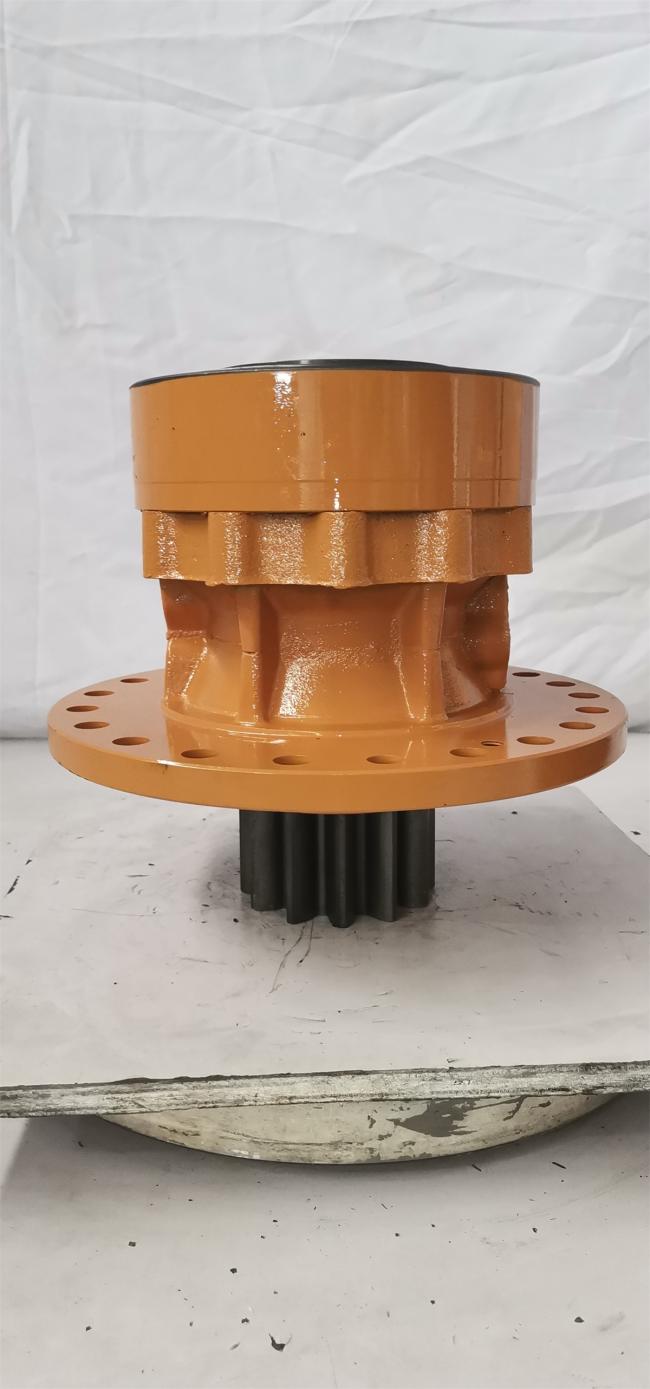

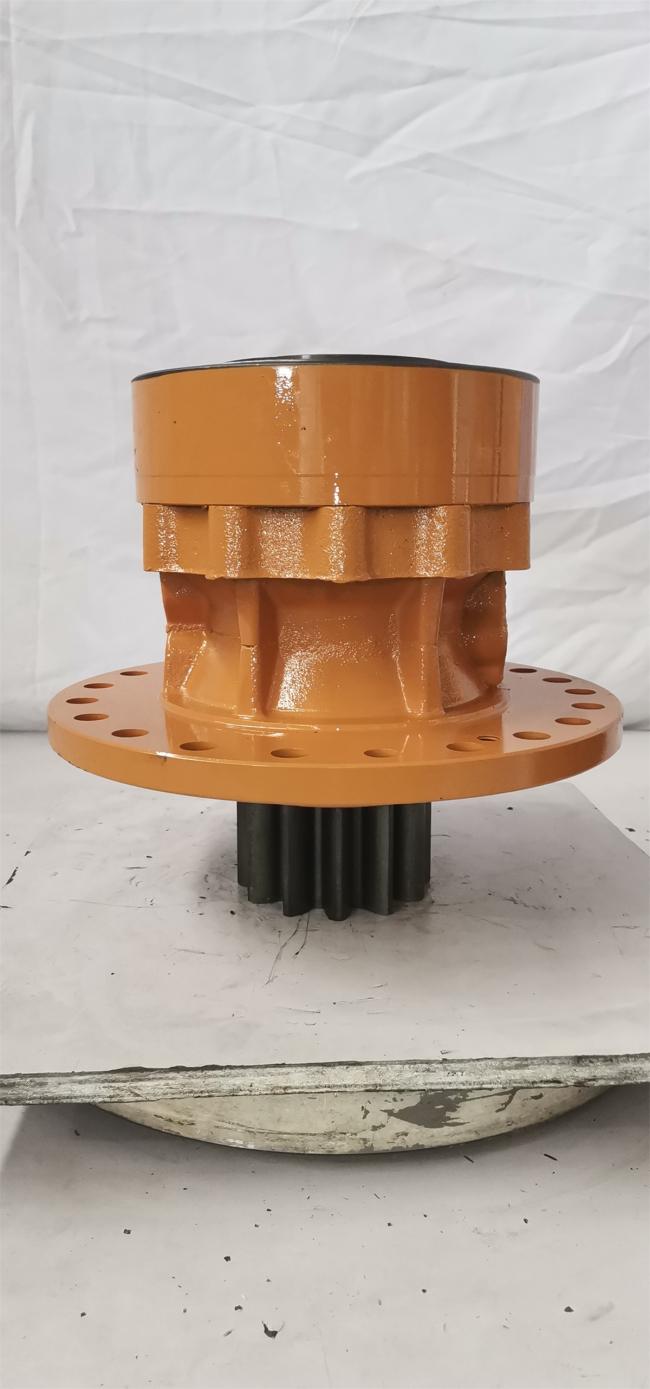

The Pictures
Cautions of Swing Gearbox or Travel Gearbox Installation
1.Replace with new gear oil (the better gear oil, the longer the service life of the gearbox). Replace the gear oil after 7 days. (The operating time of the gear oil is changed every 1000 hours. Lubriing oil: operation time is changed every 1000 hours.
2.Before testing the machine, please confirm whether the gear oil has a sufficient amount according to the regulations, and please fill the hydraulic motor housing with power oil.
3.The load cannot be added quickly, and the operation should be fully operated under a light load.
4.Attention should be paid to the temperature of the housing during operation. The safe operating temperature is below atmospheric temperature + 60 °.
5.Check whether there is oil leakage at the connection between the motor and the reducer.
6.While installing and running, see if there is any abnormal noise.
7.Be sure to clean the tubing lines.
