Swing Reduction Gear Box Excavator JCB220 JS200 JS360 JCB140 Swing Gearbox JRC0007
SWING REDUCTION GEAR BOX EXCAVATOR JCB220 JS200 JS360 JCB140 SWING GEARBOX JRC0007
Product description
| Part name | swing gearbox |
| Part number | JRC0007 |
| Machine model | JCB220 JS200 JS360 JCB140 |
| Warranty | 1 year |
| Weight | 201KG |
| Brand | JCB |
| Package |
46*46*66
|

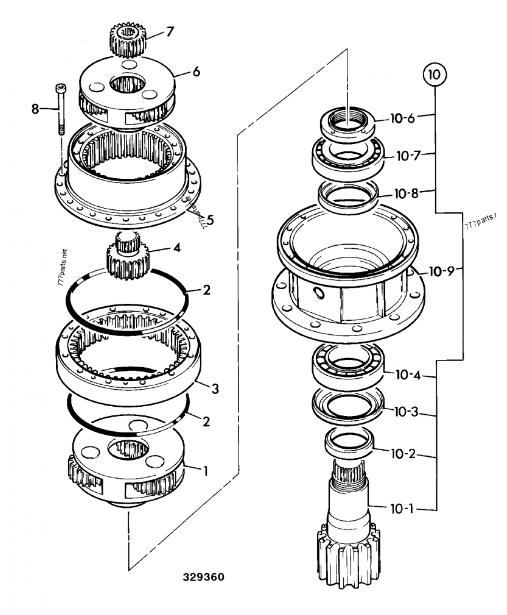

Aggregate number: JPX/1090 JG0RC001
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 10-7 | 05/903875 | Bearing | 1 | |
| 11 | . | 'See Remark' | 1 | |
| 4 | 05/903863 | Gear, sun | 1 | |
| 10-8 | 05/903876 | Seal, ring | 1 | |
| 10-1 | 05/903869 | Shaft, pinion, 14 teeth | 1 | |
| 1 | 05/903860 | Gear, reduction assembly | 1 | |
| 2 | 05/903861 | O Ring | 2 | |
| 10 | 05/903873 | Gear, output assembly | 1 | |
| 10-4 | 05/903872 | Bearing | 1 | |
| A | JRC0007 | Gearbox, swing | 1 | |
| 7 | 05/903867 | Gear, sun | 1 | |
| 8 | 05/903868 | Screw | 16 | |
| 5 | 05/903864 | Cover | 1 | |
| 10-6 | 05/903874 | Nut | 1 | |
| 5A | 05/903865 | Ring, toothed | 1 | |
| 10-2 | 05/903870 | Spacer | 1 | |
| 3 | 05/903862 | Ring, toothed | 1 | |
| 10-9 | 05/903877 | Housing, gearbox | 1 | |
| 6 | 05/903866 | Gear, reduction assembly | 1 | |
| 10-3 | 05/903871 | Ring | 1 |

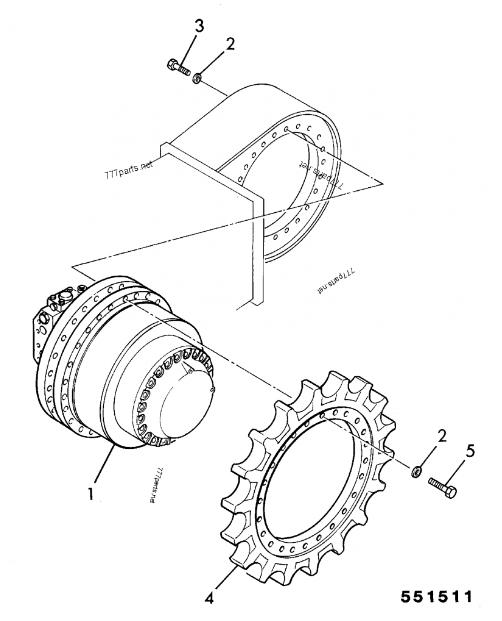

Aggregate number: 215/11005-3
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 1 | 20/925318 | & track motor | 2 | |
| 4 | JRA0113 | Sprocket, drive, 21 teeth & 22 holes | 2 | |
| 99 | 215/11005 | G.A., TRACTION EQUIPMENT | 1 | |
| 3 | 1316/3713D | Bolt, M16 x 55mm | 52 | |
| 2 | JHP0043 | Washer, M16 | 96 | |
| 4 | 331/42641 | Sprocket | 2 | |
| 5 | 1316/3715D | Bolt, M16 X 65mm | 44 |
We also have stock in these parts:
1. Crank shaft, various sun gear, various planet gears, drive shaft, various travel coupling, transmission gear, speed cut gear, various travel gear discs, travel bearing cover, minor axis, varous drive shaft, vertical shaft
2. Excavator bearing
3. PC200-5 Travel planetary carrier assy 1st, PC200-5 Travel planetary carrier assy 2nd , PC200-6 6D102 Swing planetary carrier assy 1st, PC200-6 6D95 Travel planetary carrier assy 1st, PC200-3 Travel duplie planetary gear assy 21/31T, EX200-1 Travel planetary carrier assy 1st, EX200-2 Swing planetary carrier assy 2nd, EX200-5 Swing planetary carrier assy 1st, EX200-1 Travel planetary carrier assy 2nd, EX200-2 Travel planetary carrier assy 2nd, EX200-3 EX200-5 Travel planetary carrier assy 1st, E200B Swing planetary carrier assy 1st, E200B Travel planetary carrier assy 1st, E200B Travel planetary carrier assy 2nd, HD700-5 Travel planetary carrier assy 1st, HD700-5 Swing planetary carrier assy 1st, HD700-7 Travel planetary carrier assy 2nd, SK07N2 Swing planetary carrier assy, SK200-5 Swing planetary carrier assy 2nd, SK200-3 Swing planetary carrier assy 1st
