JS260 Excavator parts Swing Motor 20925266 Slewing Motors JCB Swing Device
JS260 Excavator swing motor 20925266 slewing motors for JCB
Product Description
1. Appliion: Crawler excavator
2. Part name: swing motor
3. MOQ: 1PCS
4. Packing: Standard exporting packing or as required
5. Modle: JS260
6. Part number: 20925266
7:Weight: 70KG

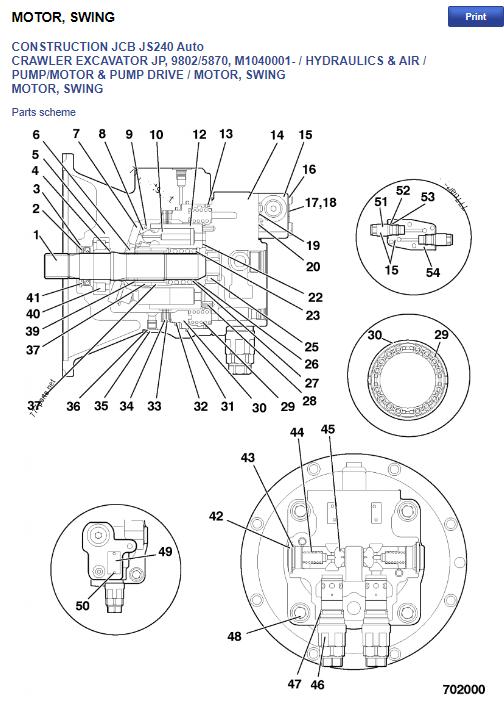

List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 3 | 20/950990 | Ring, snap | 1 | |
| 47 | 828/10221 | Seal, O ring | 2 | |
| A | 20/925266 | Motor, swing | 1 | |
| 49 | N.S.P. | None serviced part | 1 | |
| 8 | N.S.P. | None serviced part | 1 | |
| 18 | N.S.P. | None serviced part | 1 | |
| 40 | 20/951512 | Bearing, roller | 1 | |
| 51 | 20/951500 | Valve, swing, reactionless | 2 | |
| 6 | 20/951525 | Retainer | 1 | |
| 48 | 20/951514 | Screw, hexagon head | 4 | |
| 14 | N.S.P. | None serviced part | 1 | |
| 15 | 20/951501 | Valve, relief, assembly | 1 | |
| 31 | 20/951531 | O Ring | 1 | |
| 29 | 20/951506 | Spring, brake | 16 | |
| 2 | 20/951517 | Cover, seal | 1 | |
| 54 | 20/951534 | Casing, valve, swing reactionless | 1 | |
| 20 | N.S.P. | None serviced part | 1 | |
| 45 | 20/951516 | Plunger, h2 | 2 | |
| 17 | N.S.P. | None serviced part | 1 | |
| 28 | N.S.P. | None serviced part | 1 | |
| 42 | 20/951510 | Plug | 2 | |
| 36 | LBQ0112 | O Ring | 1 | |
| 34 | 20/951504 | Plate, separator | 4 | |
| 57 | 20/951530 | Piston, assembly | 1 | |
| 53 | 828/10228 | Seal, O ring | 2 | |
| 37 | 20/951523 | Rod, push | 12 | |
| 12 | 20/951526 | Cylinder | 1 | |
| 32 | 20/951532 | O Ring, seal | 1 | |
| 5 | 20/951518 | Casing, b1 | 1 | |
| 22 | 20/951519 | Plate, valve | 1 | |
| 55 | 20/951502 | Seal, kit, assembly | 1 | |
| 10 | N.S.P. | None serviced part | 1 | |
| 41 | 20/951533 | Seal, oil | 1 | |
| 4 | 20/951527 | Spacer, bearing | 1 | |
| 25 | 20/951511 | Bearing, roller | 1 | |
| 50 | N.S.P. | None serviced part | 1 | |
| 39 | 20/951522 | Spacer | 3 | |
| 33 | 20/951505 | Plate, friction | 3 | |
| 52 | 20/951068 | Ring, back up | 2 | |
| 35 | 20/950858 | Plug | 1 | |
| 44 | 20/951515 | Spring, h2 | 2 | |
| 19 | N.S.P. | None serviced part | 1 | |
| 1 | 20/951528 | Shaft, drive | 1 | |
| 16 | N.S.P. | None serviced part | 1 | |
| 13 | 20/951509 | O Ring | 1 | |
| 30 | 20/951507 | Piston, brake | 1 | |
| 43 | 20/951508 | O Ring | 2 | |
| 56 | 20/951529 | Valve, casing, assembly | 1 | |
| 7 | 20/951520 | Plate, shoe | 1 | |
| 27 | 20/951524 | Spring, cylinder | 1 | |
| 46 | 20/951503 | Valve, relief | 2 | |
| 26 | 20/951513 | Ring, snap | 1 | |
| 23 | 20/951522 | Spacer | 3 | |
| 9 | 20/951521 | Plate, set | 1 |
Why Choose Us
(1) 24 hours online service.
(2) Question report will be replied to in 48 hours.
(3) Quality guaranteed.
(4) High quality at a competitive price.
(5) Low min order quantities.
(6) Wide product range and delivery of goods in time.
(7) Good customer service: customer satisfaction is our primary goal.
1.What is the warranty time of the products?
The warranty time is 3/6 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours
after your payment; if not in stock, the delivery time will becommunied in advance, usually 3-7 days
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system,such as travel motor,swing motor, travel gearbox,swing gearbox, gear parts, hydraulic pump,hydraulic parts,etc.lf you need
other excavator parts, we also can supply as your requirements.
4.How can l do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, ifyou really found something wrong, please provide pictures orvideo for us and we will check.After it is confirmed, please returnthe goods to us and we will offer the correct item.
5.How do l pay?
You can pay by T/T,PayPal (for small amount) and tradeassurance.
6.If I am also interested in your other parts, what should I do?
please contact us directly for enquiry, provide detail part name model number or part number, thanks.
7. Do you test all your goods before delivery?
Yes, we have a 100% test before delivery.
