YN35V00048F1 YN35V00054F1 SK350-8 Solenoid Valve For Kobelco
YN35V00048F1/YN35V00054F1 SK350-8 SOLENOID VALVE FOR KOBELCO
Specifiion
| Name | Hydraulic solenoid valve |
| Used for Excavator model | SK350-8 |
| Part number | YN35V00048F1 KDRDE5K-30C50-122 |
| Appliion | Excavator |
| Size | STD |
| egory Group | Electric parts |
| related products |
1. Pressure Switch 2. StepperMotor assy 3. Solenoid valve 4. Sensor 5. Flameout Solenoid 6. Various Starter Switch 7. Computer Board / Monitor 8. Starting Motor 9. Alternator / Generator ... |
54F1 SOLENOID VALVE Kobelco parts SK170 ACERA M-9, SK295-9, SK350-9, SK260-9 SOLENOID
Kobelco parts alog
(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13)
-

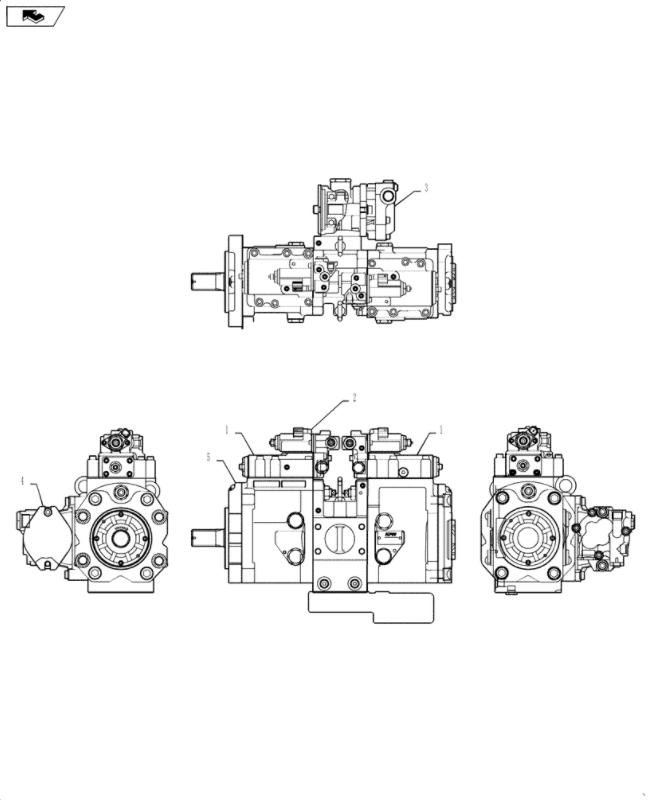

(35.106.AN[01]) - HYDRAULIC PUMP, ASSY » YN35V00054F1
(SK260-9) - ACERA MARK 9 EXCAVATOR - TIER 4 (NA) ASN LL14U1700 (3/11-12/13)
-
(08-026[00]) - SOLENOID VALVE, ASSY » YN35V00054F1
-
(08-023[04]) - REGULATOR, ASSY » YN35V00054F1
-
(08-023[03]) - REGULATOR, ASSY » YN35V00054F1
(SK295-9) - ACERA MARK 9 EXCAVATOR - TIER 4 (NA) ASN LB07U0900 (2/11-12/13)
-
(08-026[00]) - SOLENOID VALVE, ASSY » YN35V00054F1
-
(08-023[04]) - REGULATOR, ASSY » YN35V00054F1
-
(08-023[03]) - REGULATOR, ASSY » YN35V00054F1
(SK350-9) - ACERA MARK 9 EXCAVATOR TIER 4 (NA) ASN YC12U2401 (9/11-12/13)
-
(07-002[02]) - REGULATOR AND SOLENOID » YN35V00054F1
-
(01-015[02]) - HYDRAULIC PUMP ASSY » YN35V00054F1
-
|
Pos. |
Part No |
Qty |
Parts name |
Comments |
|---|---|---|---|---|
|
. . |
YN35V00054F1 |
[1] |
SOLENOID VALVE |
KOB Assembly, Incl 1 - 12 |
|
1. |
NA |
[1] |
NOT SERVICED |
FOR Spool |
|
2. |
NA |
[1] |
NOT SERVICED |
FOR Sleeve |
|
3. |
NA |
[1] |
NOT SERVICED |
FOR Spring |
|
4. |
NA |
[1] |
NOT SERVICED |
FOR Ring, Retaining |
|
5. |
YN35V00004S361 |
[1] |
O-RING |
KOB |
|
6. |
YN35V00004S362 |
[1] |
O-RING |
KOB |
|
7. |
YN35V00004S363 |
[1] |
O-RING |
KOB |
|
8. |
NA |
[1] |
NOT SERVICED |
FOR Solenoid |
|
9. |
YN35V00018S802 |
[1] |
NUT |
KOB |
|
10. |
ZD12P02000 |
[1] |
O-RING,2.4mm Thk x 19.8mm ID, 90 Duro |
KOB ID 19.80 ± 0.22 x OD 24mm |
|
11. |
NA |
[1] |
NOT SERVICED |
FOR Name Plate |
|
12. |
NA |
[1] |
NOT SERVICED |
FOR Name Plate |
|
. . |
YN35V00054S100 |
[1] |
KIT |
SM Incl 5 - 7, 9 - 10 |

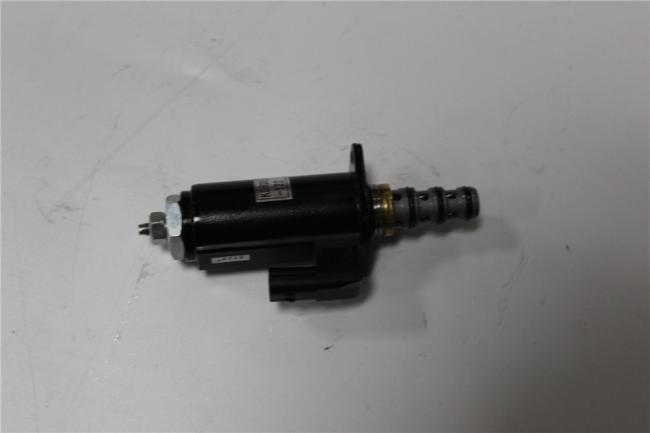

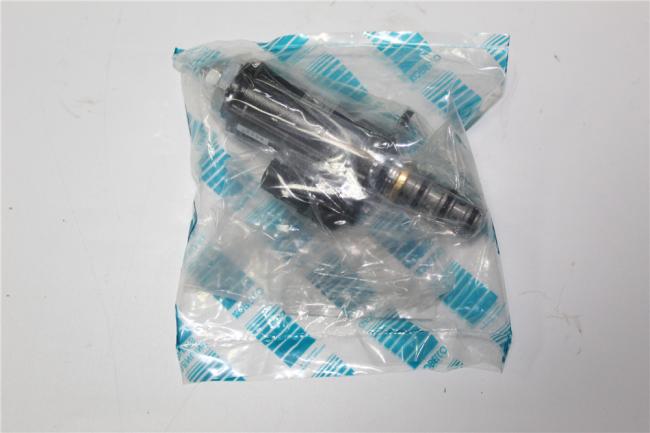

Picture show:
