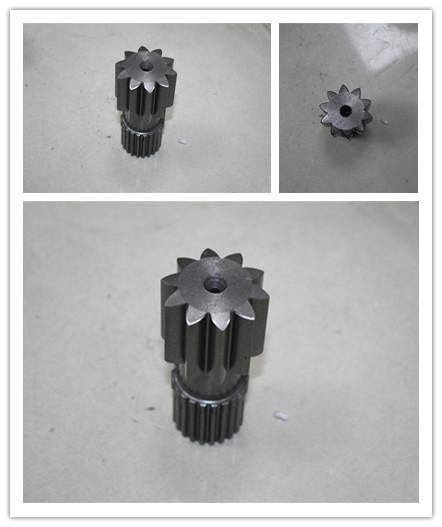

Travel Gearbox 1st Sun Gear Planetary Gear Parts R140 R300 XKAQ-00242 Travel Gearbox
Travel gearbox 2nd planetary gear parts R250LC R300LC XKAQ-00535 Travel gearbox
Description
|
Brand: |
Belparts
|
|
Name: |
Travel gearbox 2nd planetary gear
|
|
Model: |
R250LC-9 R300LC-9A R320LC-9 R330LC-9SH
|
|
Part number |
XKAQ-00402 XKAQ-00242 |
|
Delivery: |
By sea,By air,By express
|
|
After-sales Service Provided: |
Online support
|
|
Hight light: |
Hyundai planetary gear
|
|
Warranty: |
3 months
|
Drawing of the pump
Parts of group travel reduction gear
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| * | @ | FUEL INJECTION PIPE & NOZZLE SEE 4151 |
1 | |
| * | @ | FUEL INJECTION PIPE & NOZZLE SEE 4151 |
1 | |
| *-2 | 31N6-40040 | T/REDUCTION GEAR | 1 | |
| *-2 | 31N6-40041 | T/REDUCTION GEAR | 1 | |
| *-2 | 31N6-40041BG | T/REDUCTION GEAR | 1 | |
| N1 | XKAQ-00217 | HOUSING | 1 | |
| 2 | XKAQ-00218 | BEARING-MAIN | 2 | |
| 3 | XKAQ-00219 | SEAL-FLOATING | 1 | |
| 4 | XKAQ-00220 | SHIM | 1 | |
| 5 | XKAQ-00221 | RETAINER | 1 | |
| 6 | XKAQ-00222 | BOLT-HEX | 12 | |
| 7 | XKAQ-00223 | PIN-PARALLEL | 2 | |
| N8 | XKAQ-00224 | GEAR-RING | 1 | |
| 9 | XKAQ-00225 | COUPLING | 1 | |
| 10 | XKAQ-00226 | CARRIER ASSY 2 | 1 | |
| 10-1 | XKAQ-00227 | CARRIER 2 ILL.CHANGE |
1 | |
| 10-2 | XKAQ-00228 | GEAR PLANET 2 ILL.CHANGE |
4 | |
| 10-3 | XKAQ-00229 | BEARING-NEEDLE 2 | 8 | |
| 10-4 | XKAQ-00230 | WASHER-THRUST | 8 | |
| 10-5 | XKAQ-00231 | PIN 2 | 4 | |
| 10-6 | XKAQ-00232 | PIN-SPRING | 4 | |
| 10-7 | XKAQ-00208 | RING-THRUST 1 | 2 | |
| 11 | XKAQ-00653 | CARRIER 1 ASSY | 1 | |
| 11-1 | XKAQ-00234 | CARRIER 1 | 1 | |
| 11-2 | XKAQ-00235 | GEAR-SUN 2 | 1 | |
| 11-3 | XKAQ-00236 | RING-RETAINING | 1 | |
| 11-4 | XKAQ-00237 | GEAR-PLANET 1 | 3 | |
| 11-5 | XKAQ-00238 | BEARNG-NEEDLE 1 | 3 | |
| 11-6 | XKAQ-00239 | WASHER-THRUST | 6 | |
| 11-6 | XKAQ-00657 | WASHER-THRUST | 6 | |
| 11-7 | XKAQ-00240 | PIN 1 | 3 | |
| 11-8 | XKAQ-00241 | PIN-SPRING | 3 | |
| 11-9 | XKAQ-00655 | PIN-SPRING | 3 | |
| 12 | XKAQ-00242 | GEAR-SUN 1 | 1 | |
| 12 | XKAQ-00402 | GEAR-SUN 1 | 1 | |
| 13 | XKAQ-00243 | COVER | 1 | |
| 14 | XKAQ-00214 | PAD | 1 | |
| 15 | XKAQ-00244 | BOLT-HEX SOCKET | 20 | |
| 16 | XKAQ-00245 | SCREW-HEX SOCKET | 2 | |
| 17 | XKAQ-00246 | PLUG-HYDRAULIC | 3 | |
| 18 | XKAQ-00247 | O-RING | 3 | |
| 19 | XKAQ-00248 | NAME PLATE | 1 |
About company:
Company Adavantages
ØStrong part number database.
If you can provide the right model and part number, we can supply the right product.
ØProfessional and experienced salesperson.
Our founder has been into this field for more than 7 years, with rich experiences.
ØStrict and complete company rules.
We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.
ØGood management system.
No matter how big or small order, as long as customers place the order, we will provide exporting service free for charge.
ØGood service attitude.
If the customer has any questions about the product, In our receiving and knowing the situation, we will help the customer to solve the problem in the first place.As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.
| Company Information |
Exhibition:
Factory:
Good reputation
FAQ
1.What is the warranty time of the products?
The warranty time is 3/6 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 3-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts, hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
5.How do I pay?
You can pay by T/T, Western union, PayPal (for small amount) and trade assurance.
