900kw Cummins Diesel Generator Set

Price Negotiable
Price: USD 60000-100000USD
MOQ: 1 set
Delivery Time: 25 working days
Brand: SHX
Product Description

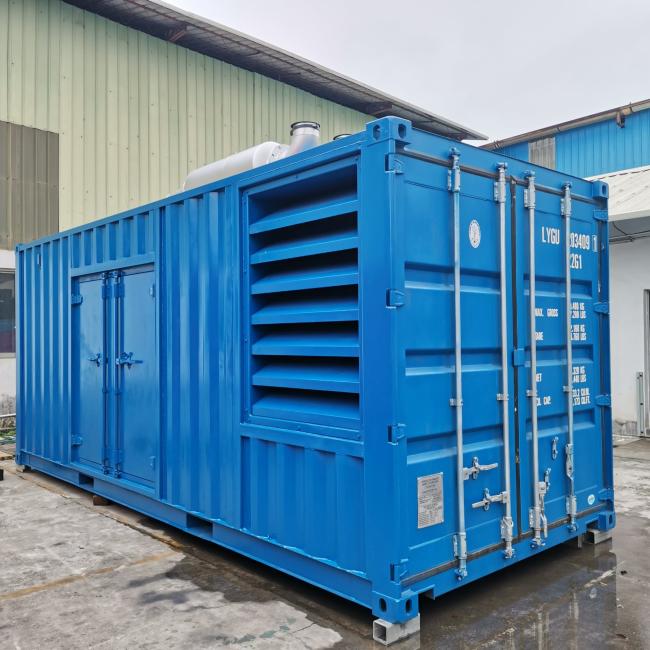

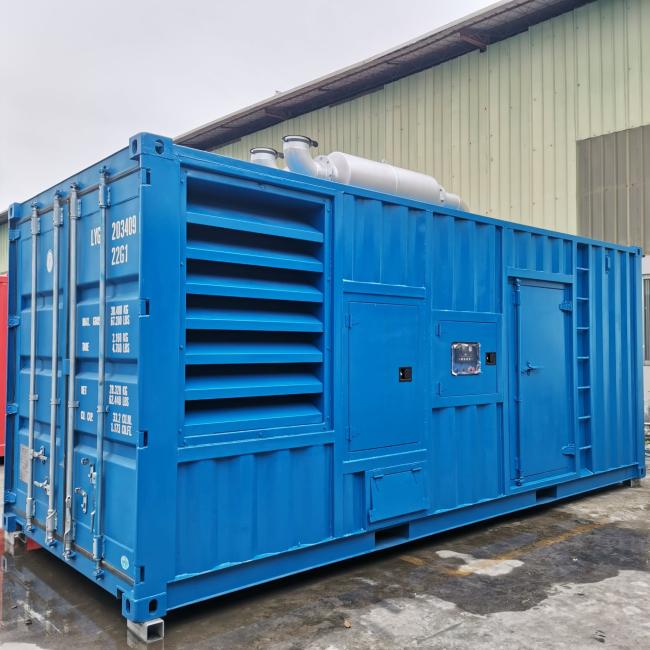

SHX 900kw Cummins Diesel Generator Set Container Diesel Genset Three Phase Power Plant



Model
Voltage
HZ
P.F
(COS¢)
Prime power
SCF-1375
110,230,400V
50/60Hz
0.8
908KW/1135KVA
Engine Model
Cummins
Number of Cylinders
12 cylinders
Cycle
4 stroke
Aspiration
Turbocharged and after water cooled
Bore×Stroke
159mm x159mm
Displacement
37.8L
Fuel Consumption at 100% Load
207g/kw.h
Starter Motor
DC24V
Alternator
Stamford/Marathon/Leroysomer/Farrand
Prime power
1135KVA
Frequency/speed
50/60Hz
Exciter type
Brushless
Power factor
0.8
Voltage adjust range
≥±5%
Voltage regulation NL-FL
±0.5%
Insulation Grade
H
Protection Grade
IP23
Phase
Three phase
Smartgen control panel data
Controller Brand
Deepsea /ComAp /Smartgen
Controller Display
Output frequency
Engine speed
Battery voltage
Engine run-time (Hours)
Note:
1. The engine coolant temperature displayed by water temperature gauge
2. The engine oil pressure displayed by oil pressure meter
3. Generator current displayed by current meter, to change switch for each phase displayed separately
Generator Set
Fuel System
Control system
Alternator
Low environment temperature
8h/12h/24hours fuel tank
AMF function
PMG excitation
Water heater
Dual wall base fuel tank
ATS
Space heater
Oil heater
Outside fuel tank
Multiple generator automatic synchrorising

Battery heater





Sunkings diesel generator sets are manufactured with world-class standards, featuring high-quality engine cores, strong and stable output performance, lower fuel consumption, silent working conditions, and intelligent automatic controller operation.


The diesel genset accessories are all internationally knowned brands such as:Cummins, Perkins, Deutz, Weichai and other brand engines, and AC brushless pure copper motors of Stamford, Marathon, Leroy Somer, Engga and other.

From the initial inspection to completed delivery, we guarantee long term quality for your commercial and industrial applications. Our commercial and industrial generator sets offer a variety of options to meet your power needs, making selection and installation simple.
