SHX 144kw 180kva Cummins Diesel Generator Set 200kva Standby Silent Diesel Genset
SHX 144kw 180kva Cummins Diesel Generator Set 200kva Standby Silent Diesel Genset
Full specifications as below:
Genset Specifications
| Genset model | SHX-200 |
| Genset rated power | 144KW / 180KVA |
| Rated voltage | 230V / 400V (adjustable) |
| Rated current | 260 Amp |
| Frequency | 50 Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 3500×1250×1900 |
| Weight (kg) | 2300 |
Engine Specifications
| Diesel Engine | |
| Brand | Cummins |
| Model | 6CTA8.3-G2 |
| Engine structure | 6 cylinders vertical in line, 4 stroke, turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling method | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement(L) | 8.3 |
| Bore×Stroke(mm) | 114×135 |
| Compression ratio | 17.3:1 |
| 100% Load fuel consumption (litre/h) | ≤40 |
| Lube capacity(L) | 23.8 |
Alternator Specifications
| Alternator | |
| Brand | Leroy Somer |
| Model | TAL-A44-L |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
Supply Scope of silent generator
1.Standard tool kits and complete operation/maintenance/spare parts manuals to Engine/Alternator
2.Brand-new engine, with start motor.
3.Brand new brushless alternator, single bearing, flange connection, IP21-23, H insulation class, with AVR.
4.Auto control panel, with LCD display.
5.Engine mounted battery-charging alternator.
5.Circuit Breaker, Exhaust Silencer
6.Radiator for 50°C ambient temperature and double-deck cooling, with fan guard and front guard.
7.Anti-vibration pads are fixed between engine/alternator and base frame, as to ensure the compete genset
running under stabilization.
8.Skid-mounted bottom Fuel tank - 8hrs continuous running for choice (bigger fuel tank by your demand under extra cost)
9.External recessed emergency stop button for extra safety
10.The colors & Brands by your requests
11.Optional choice: ATS (automatic transfer switch), battery charger of mains supply, fuel-water separator, water heater and
oil heater ( depends on using environment),fuel filter, oil filter, water filter and air filter, Parallel system for your choice.
Advantages:
1.Reliable Performance:
Reliable performance is the major advantage of SHX products, which is based on the outstanding design
in every aspect and strict QC system.
2.Customer First:
We devote ourselves to develop products to meet customer’s requirements. Our engineers develop and
design new products for customers.
3. Technical Support and Service:
Our engineer team will solve your technical problems within 48 hours.
4.Strict test process before ex-factory:
Every product will be tested twice before ex-factory, free load and under load, all products are 100% ex-factory pass rate.
5.Certification:ISO9001:2015, TUV etc.

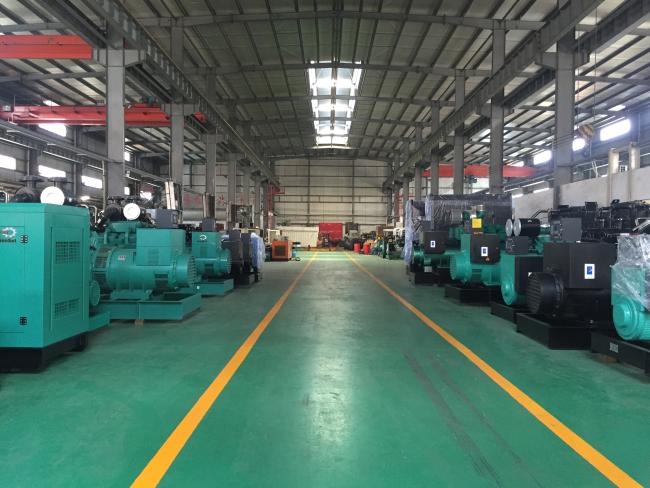

Now Sunkings Electric Co., Ltd. Product line covers
1. Open type gensets.
2. Silent type gensets.
3. Trailer mounted gensets.
4. Containerized gensets.
5. Fuel tanks.
6. Industrial Silencers & other genset accessories.
