Low Water Head Kaplan Turbine Generator Mini Hydropower Station
Low Water Head Kaplan Turbine Generator Mini Hydropower Station
Kaplan turbine
At many power plant sites, where large quantities of water were avaliable at low heads, the dimensions of francis turbine started becoming
too large and uneconomical, and another turbine named propeller turbine was developed.
This turbine has major parts like the scroll case, stay vanes, guide vanes and the draft tube similar to the francis turbine. However, the runner is different.
Specification of kaplan
| Water Head | 10-70m |
| Runner Diameters | 0.45-5m |
| Power Range | 300KW to 20MW |
| Frequency | 50HZ/60HZ |
| Generator Voltage | 400V,800V,6300V,10500V |
| Layout pattern | Horizontal or Vertical |
| Material(blades) | Stainless Steel ZG0Cr13NI4Mo |
| Excitation | Brushless or Static excitation system |
| Generator Insulation | F/F |
| Manufacturer | Deyang Dongsen Hydropower Equipment Co.,Ltd |
Kaplan turbine is used to hydropower plant

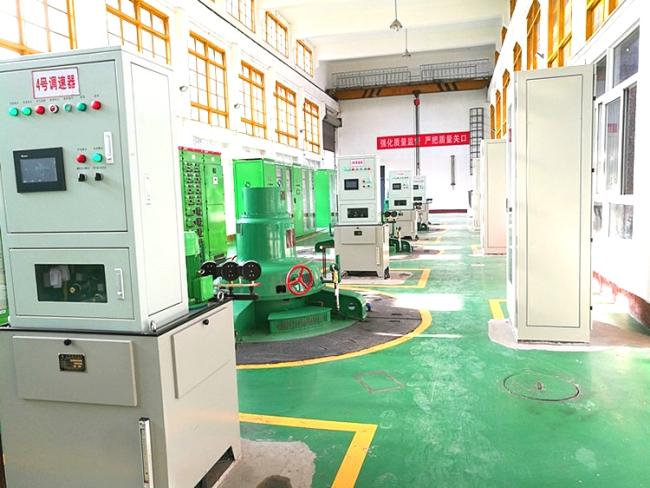

Xinsheng HPP
5x500kw
Head: 7.5m, Rated voltage: 400v
Turbine Type: ZD***-LH-120 Motor model: SF500-20/1730
