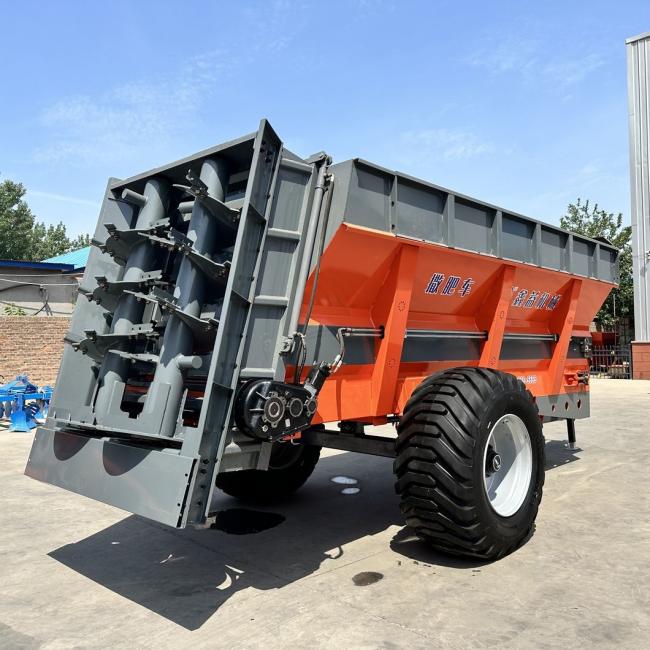

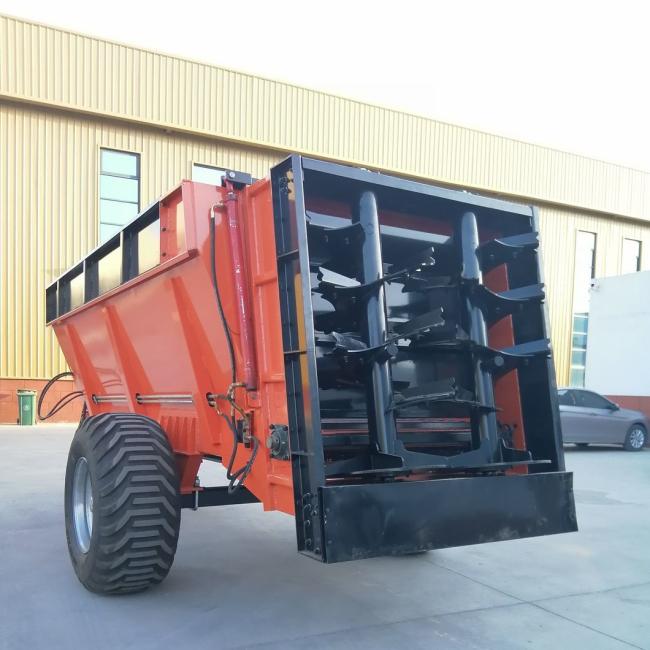

Frozen Manure Spreading Fertilizer Equipment Semi Automatic For Large Scale Farmland
Price:
US $ 22.48-24.26 / piece
MOQ:
100 pieces
Delivery Time:
7-15 work days
Brand:
Xinyi
Product Description
Yucheng Xinyi Machinery Manufacturing Co., Ltd.
Product Technical Parameter
Name: Fertilizer Spreader Frozen Manure Spreading Strong Power
The fertilizer spreader body is made of thickened steel plate, which is durable and has a long service life. The chain conveyor has a fast speed, high efficiency and large capacity, and can spread one load every 5 minutes. The powerful pressure-resistant tires are wear-resistant, stable and safe, ensuring the normal operation of the machine in the field. The double vertical auger sowing method can achieve large-area spreading. The speed reducer adopts step-by-step speed reduction, which provides a guarantee for more stable operation of the machine.
Features:
1. The hydraulic door control of the discharge port regulating valve is humanized, and the size of the discharge port can be adjusted according to the different fertilizer output requirements of the end user.
2. Suitable for spreading various types of manure, organic fertilizer, wine trough, sugar residue, and other materials in different forms, with wide applicability, transportation and strong fertilization power.
3. The fertilizer conveying and fertilizer spreading structures are hydraulically controlled and the speed is adjustable.
4. It can be used to spread various types of farmyard manure or directly spread fertilizer to meet various needs.
5. The vertical auger spreading structure accelerates the operation, the fertilizer spreading effect is uniform, the work efficiency is high, and the cost of manual fertilizer spreading is greatly saved.
6. The fertilizer delivery speed and amount can be adjusted according to user needs.
7. Suitable for large-scale farmland operation environment.Use high-quality accessories, compact structure and stable performance.
Product Parameters:
| Structure | Enclosed Box Type |
| Total weight | 4100Kg |
| Overall size | 7200*2970*2500mm |
| Car size | 4.9*2.2*1.65m |
| Wheelbase | 2.35m |
| Traction length | 1.4m |
| Working method | Double vertical auger throwing (can be customized with double disc rear throwing, horizontal auger, side throwing |
| Tire Model | 600/55-26.5 |
| Spreading width | 8-15m |
| Supporting power | Four-wheel tractors with more than 140 horsepower |
| Conveying method | chain conveyor |
Normal packing or According to your requirement.
Safe, complete and fast delivery of goods to customers.
1,All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .
2,We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
3,We can also provide training services to different users.
