03 Series Hydraulic Modular Valve MCP-03 MCA-03 MCB-03 MCT-03 Check Modular Valve
Check Valves 03 Series Modular Valves MCP-03 MCA-03 MCB-03 MCT-03

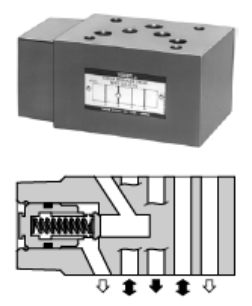

Features
The modular valves are functional elements with which a hydraulic system can be composed and built easily by stacking them with the mounting bolts. Therefore, no piping is required for the manufacture of the hydraulic systems. Seric's 03 Series Modular Valves are widely used to compose the hydraulic systems for the various industrial equipment including machine tools, special purpose machines and injection moulding machines. The valves have standardized mounting surface conforming to ISO 4401-AC-05-4-A and optimum thickness for the stacking.
Specifications
|
Model Numbers
|
Max. Operating Pressure MPa(PSI) |
Max. Flow L/min(U.S.GPM) |
| MCP-03-*-10 | 25(3630) | 70(18.5) |
| MCA-03-*-20 | ||
| MCB-03-*-20 | ||
| MCT-03-*-10 |
Model Number Designation
|
F-
|
MCP | -3 | 0 | -10 |
| Special Seals | Series Number | Valve Size |
Cracking Pressure MPa(PSI) |
Design Number |
| F:Special Seals for Phosphate Ester Type Fluids (Omit if not required) | MCP: Check Valve for P-Line | 3 | 0: 0.035(5) 2: 0.2(29) |
10 |
| MCA: Check Valve for A-Line MCB: Check Valve for B-Line |
20 | |||
| MCT : Check Valve for T-Line | 10 |

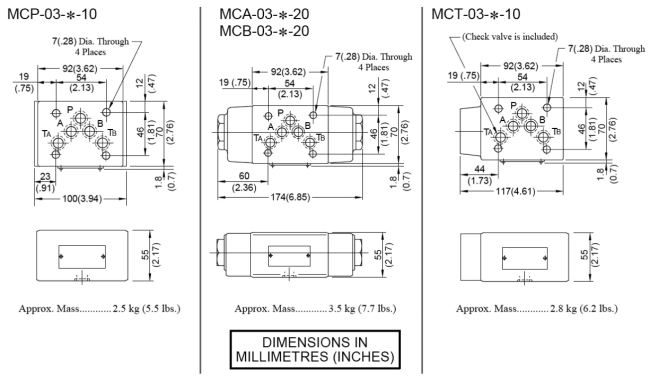

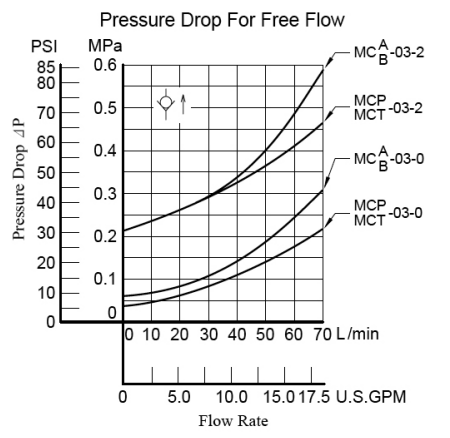

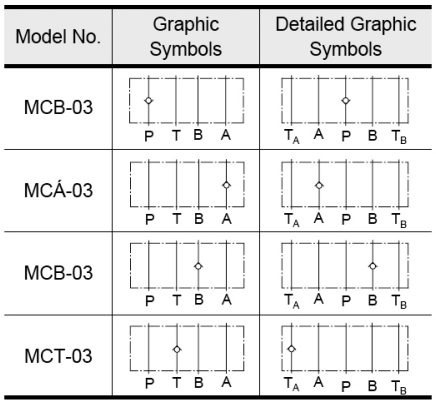

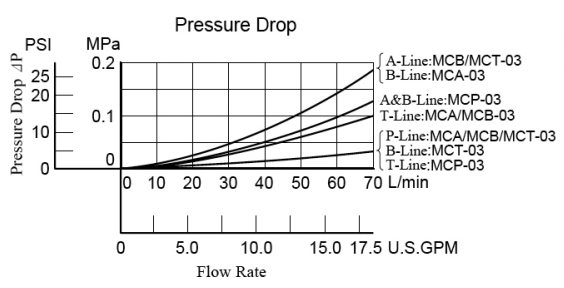

Typical Performance Characteristics
Hydraulic Fluid: Viscosity 35 mm²/ s (164 SSU), Specific Gravity 0.850
Instructions
●Tank Line Used
Check valve function of MCT-03 is included in TA-Line. Therefore, the tank line for a circuit that uses this valve must be TA-line.
