CBT350S Laboratory Carbon Black Content Test Apparatus For 4 Samples
CBT350S Carbon Black Content Tester
Introduction
CBT350S carbon black content detector is a new testing instrument launched by Shuoboda. It adopts an open-top design, which is convenient for placing samples. It can measure 4 samples at a time and calculate carbon black content and ash content with one click.
Features
The instrument adopts an open-cover design, making it convenient and quick to test samples.
7-inch LCD touch screen display, extremely friendly operation interface, can be started with one button operation.
can measure 4 samples at a time, improving experimental efficiency and saving working time.
The instrument can set any group of different heating time periods, and can have different heating temperatures, heating rates, and constant temperature times.
One-click calculation function can quickly calculate carbon black and ash content.
Technical Parameter
|
Model |
CBT350s |
|
Display mode |
7-inch capacitive touch screen |
|
Quartz tube size |
φ44×600±5mm |
|
Furnace size |
Φ45×300±5mm |
|
Heating element |
high temperature alloy wire |
|
Length of heating zone |
300mm |
|
Working temperature |
room temperature~1200°C |
|
Temperature control method |
Intelligent programmable control, section program can be set. |
|
Power supply |
AC220V/50HZ/60HZ |
|
Sensor sensitivity |
0.1°C |
|
Pneumatic control |
two channels, automatic program switching |
|
Cooling method |
rapid cooling (≤20min, 900°C to room temperature) |
|
Number of test samples |
Test 4 samples at a time |
|
Data calculation |
Built-in calculation function, one-click calculation; can automatically calculate carbon black content and ash content |
|
Exhaust gas collection device |
Filtering device (optional). |
|
Customized rail-type sample rack |
convenient for taking and placing samples. |
|
Open cover type |
Rapid cooling, reducing test cooling time |

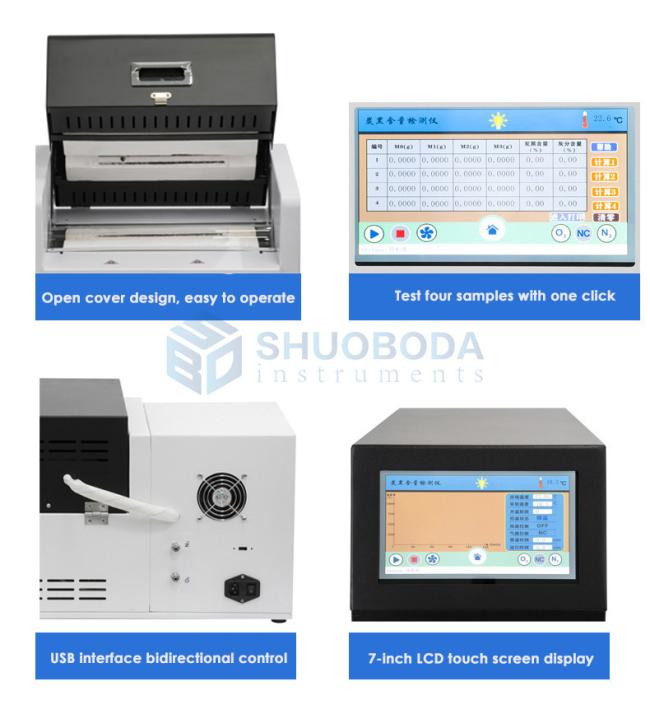

Product Details
